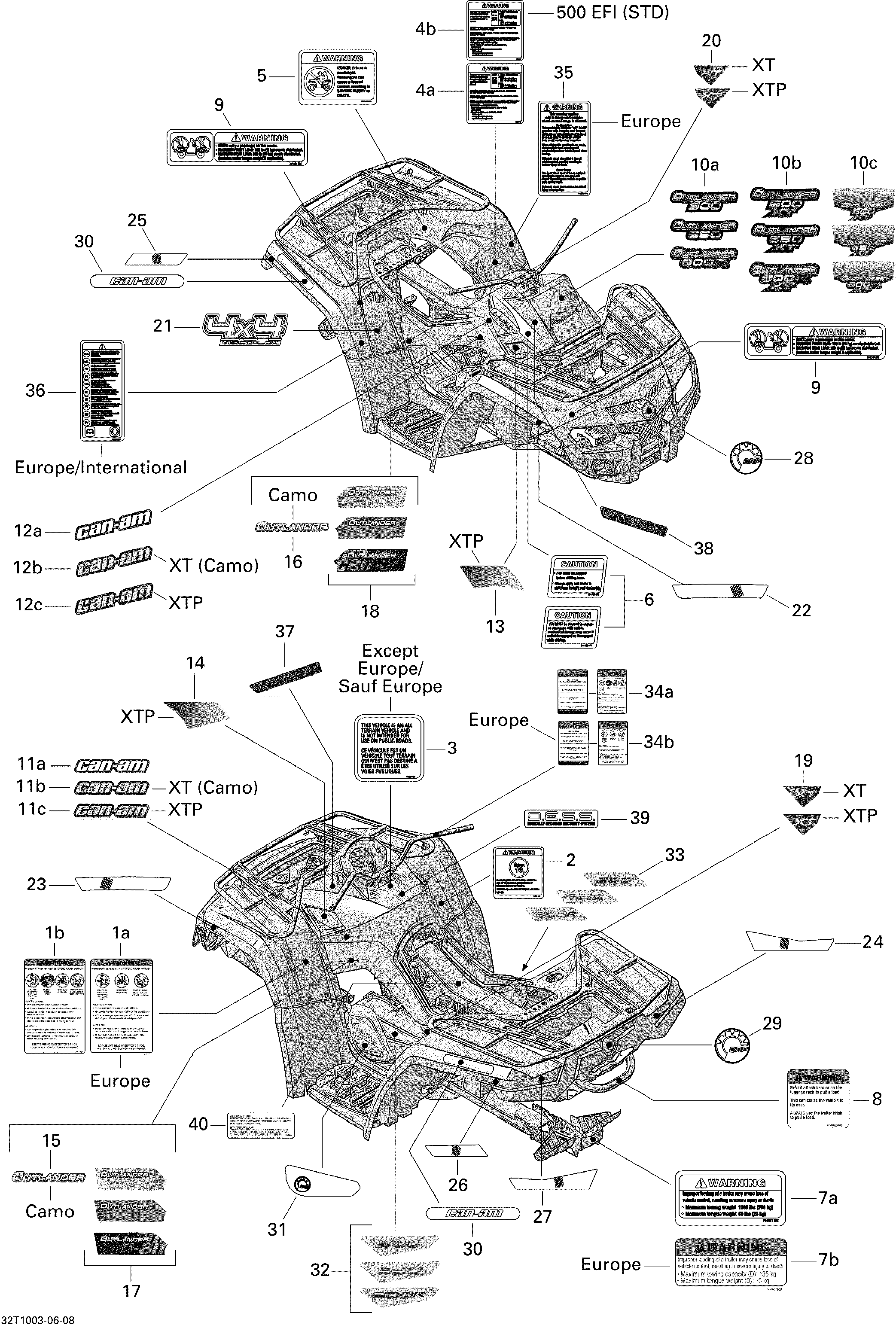

09- Decals для BRP Outlander 500 EFI - 2010
-
№АртикулНазвание
-
1a704901875 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
1b704901878 Warning Decal, Death And Injuries. Except EuropeWarning Decal, Death And Injuries. Except Europe
-
2704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704901438 Transport Canada Label. Except EuropeTransport Canada Label. Except Europe
-
4b704901275 Warning Decal, Tire Pressure. 500 EFI STDWarning Decal, Tire Pressure. 500 EFI STD
-
5704900005 Warning Decal, PassengerWarning Decal, Passenger
-
6704900434 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
7A704901123 Warning Decal, Trailer. Except EuropeWarning Decal, Trailer. Except Europe
-
7b704901905 Warning Label. EuropeWarning Label. Europe
-
8704902005 Warning Label, Porte-BagagesWarning Label, Porte-Bagages
-
9704901089 Warning Decal, LoadWarning Decal, Load
-
10a704901640 Console Decal, 500. 500 EFI STDConsole Decal, 500. 500 EFI STD
-
10b704901645 Console Decal, 500 XT. 500 EFI XTConsole Decal, 500 XT. 500 EFI XT
-
10c704901649 Console Decal, 500 XTP. 500 EFI XTPConsole Decal, 500 XTP. 500 EFI XTP
-
11a704901655 LH Center Panel Decal. STDLH Center Panel Decal. STD
-
11a704901655 LH Center Panel Decal. XT YellowLH Center Panel Decal. XT Yellow
-
11a704901655 LH Center Panel Decal. XT Viper RedLH Center Panel Decal. XT Viper Red
-
11b704901660 LH Center Panel Decal. XT CamoLH Center Panel Decal. XT Camo
-
11c704901658 LH Center Panel Decal. XTPLH Center Panel Decal. XTP
-
12a704901830 RH Center Panel Decal. STDRH Center Panel Decal. STD
-
12a704901830 RH Center Panel Decal. XT YellowRH Center Panel Decal. XT Yellow
-
12a704901830 RH Center Panel Decal. XT Viper RedRH Center Panel Decal. XT Viper Red
-
12b704901832 RH Center Panel Decal. XT CamoRH Center Panel Decal. XT Camo
-
12c704901829 RH Center Panel Decal. XTPRH Center Panel Decal. XTP
-
13704901677 RH Panel Decal. XTPRH Panel Decal. XTP
-
14704901679 LH Panel Decal. XTPLH Panel Decal. XTP
-
15704901685 LH Front Side Decal. CamoLH Front Side Decal. Camo
-
16704901833 RH Front Side Decal. CamoRH Front Side Decal. Camo
-
17704901687 LH Front Side Decal. YellowLH Front Side Decal. Yellow
-
17704901689 LH Front Side Decal. Viper RedLH Front Side Decal. Viper Red
-
17704901913 LH Front Side Decal. Laurentian GreenLH Front Side Decal. Laurentian Green
-
18704901686 RH Front Side Decal. YellowRH Front Side Decal. Yellow
-
18704901688 RH Front Side Decal. Viper RedRH Front Side Decal. Viper Red
-
18704901914 RH Front Side Decal. Laurentian GreenRH Front Side Decal. Laurentian Green
-
19704901671 LH Side Decal. XTLH Side Decal. XT
-
19704901673 LH Side Decal. XTPLH Side Decal. XTP
-
20704901670 RH Side Decal. XTRH Side Decal. XT
-
20704901672 RH Side Decal. XTPRH Side Decal. XTP
-
21704901219 4x4 Decal4x4 Decal
-
22704901422 RH Reflector (Long). STD, XTRH Reflector (Long). STD, XT
-
23704901421 LH Reflector (Long). STD, XTLH Reflector (Long). STD, XT
-
24704901426 RH Rear Reflector. Except EuropeRH Rear Reflector. Except Europe
-
25704901424 RH Rear Reflector. STD, XTRH Rear Reflector. STD, XT
-
26704901423 LH Rear Reflector. STD, XTLH Rear Reflector. STD, XT
-
27704901425 LH Rear Reflector. Except EuropeLH Rear Reflector. Except Europe
-
28219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
29219902672 Logo, BRP 68 mmLogo, BRP 68 mm
-
30704901271 Can-am Label. STDCan-am Label. STD
-
30704901271 Can-am Label. XT Viper RedCan-am Label. XT Viper Red
-
30704901271 Can-am Label. XT YellowCan-am Label. XT Yellow
-
30704901271 Can-am Label. XT CamoCan-am Label. XT Camo
-
30704901724 Can-am Label. XTPCan-am Label. XTP
-
31704900963 Decal, CVTDecal, CVT
-
32704901554 Decal, CVT 500. 500 EFIDecal, CVT 500. 500 EFI
-
33704901555 Decal, Engine Cover, 500. 500 EFIDecal, Engine Cover, 500. 500 EFI
-
34a704901859 Warning Label, General Use Model. Except EuropeWarning Label, General Use Model. Except Europe
-
34b704901861 Warning Label, General Use Model. EuropeWarning Label, General Use Model. Europe
-
35704901444 Warning Decal, Public Road Use. EuropeWarning Decal, Public Road Use. Europe
-
36704901177 International Decal, Multilingual. Europe, InternationalInternational Decal, Multilingual. Europe, International
-
37704901693 LH Console DecalLH Console Decal
-
38704901692 RH Console DecalRH Console Decal
-
39704901117 DESS DecalDESS Decal
-
40707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
