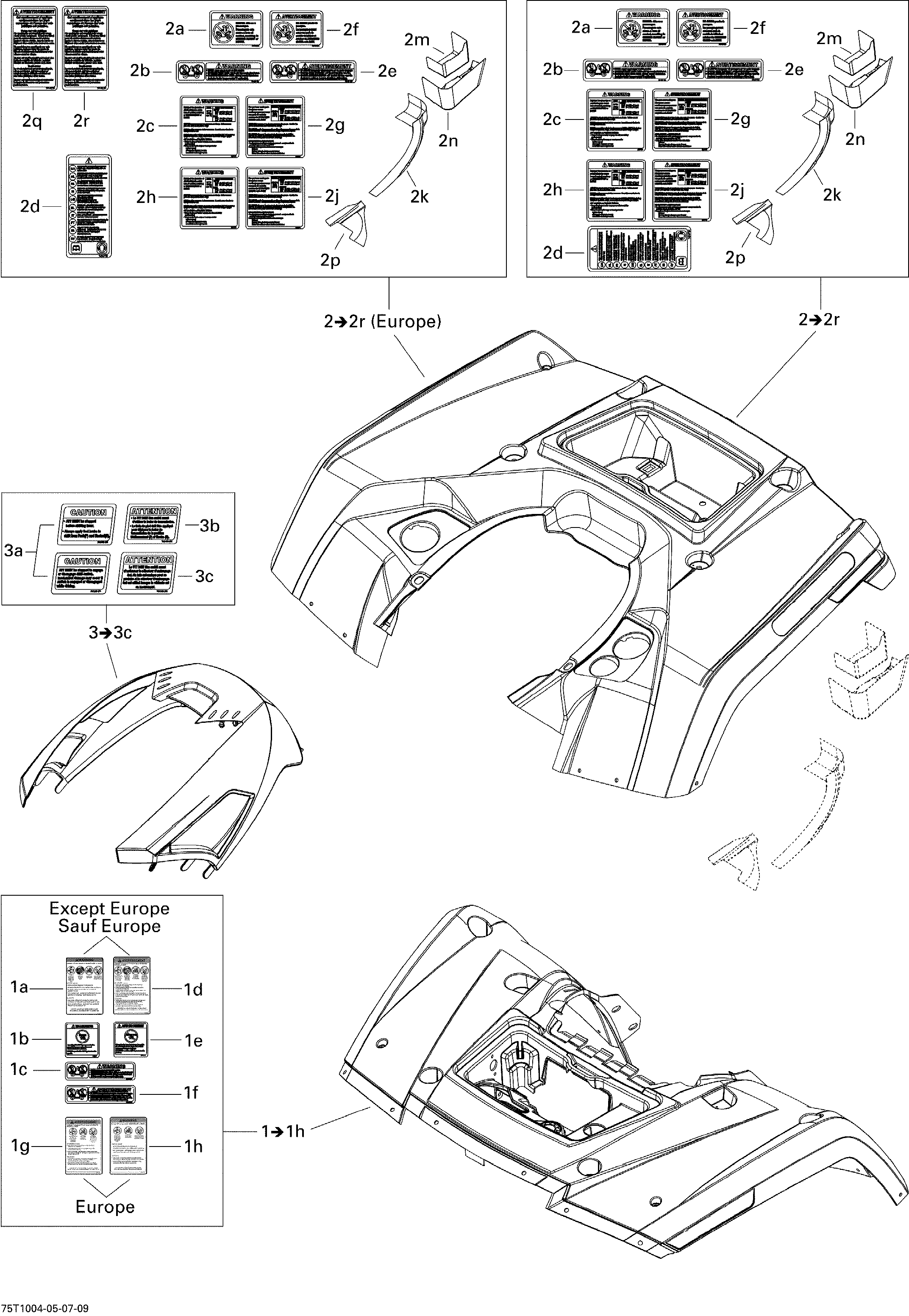

09- Fender And Central Panel Kit 800R EFI для BRP Outlander Max 800R EFI Ltd - 2010
-
№АртикулНазвание
-
1715000850 Front Fender Kit, Grey. Includes 1to 1h, Steel Grey ModelFront Fender Kit, Grey. Includes 1to 1h, Steel Grey Model
-
1715000852 Front Fender Kit, Radiant Red. Includes 1 to 1h, Radiant Red ModelFront Fender Kit, Radiant Red. Includes 1 to 1h, Radiant Red Model
-
1a704901749 Warning Decal, Death And Injuries. English Version, Except EuropeWarning Decal, Death And Injuries. English Version, Except Europe
-
1b704901753 Warning Decal, Under 16 Years Old. English VersionWarning Decal, Under 16 Years Old. English Version
-
1c704901089 Warning Decal, Load. English VersionWarning Decal, Load. English Version
-
1d704901750 Warning Label, Death And Injuries. French Version, Except EuropeWarning Label, Death And Injuries. French Version, Except Europe
-
1e704900012 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
1f704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
1g704901441 Warning Label, Death And Injuries. French Version, 800R EuropeWarning Label, Death And Injuries. French Version, 800R Europe
-
1h704901875 Warning Decal, Death And Injuries. English Version, 800R EuropeWarning Decal, Death And Injuries. English Version, 800R Europe
-
2715000868 Rear Fender Kit, Radiant Red. Includes 2 to 2r, Radiant Red ModelRear Fender Kit, Radiant Red. Includes 2 to 2r, Radiant Red Model
-
2715000872 Rear Fender Kit, Grey. Includes 2 to 2r, Steel Grey ModelRear Fender Kit, Grey. Includes 2 to 2r, Steel Grey Model
-
2715000874 Rear Fender Kit, Grey. Includes 2 to 2r, Steel Grey Model, EuropeRear Fender Kit, Grey. Includes 2 to 2r, Steel Grey Model, Europe
-
2a704901762 Warning Decal, Passenger. English VersionWarning Decal, Passenger. English Version
-
2b704901089 Warning Decal, Load. English VersionWarning Decal, Load. English Version
-
2c704901275 Warning Decal, Tire Pressure. English VersionWarning Decal, Tire Pressure. English Version
-
2d704901177 International Decal, MultilingualInternational Decal, Multilingual
-
2e704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
2f704901763 Warning Label, Passenger, French. French VersionWarning Label, Passenger, French. French Version
-
2g704901121 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
2h704901120 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
2j704901278 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
2k705002085 Reflective SheetReflective Sheet
-
2m705002189 Reflective SheetReflective Sheet
-
2n705002191 Reflective SheetReflective Sheet
-
2p705002014 Reflective SheetReflective Sheet
-
2q704901444 Warning Decal, Public Road Use. Europe, English VersionWarning Decal, Public Road Use. Europe, English Version
-
2r704901158 Warning Label, Public Road Use. Europe, French VersionWarning Label, Public Road Use. Europe, French Version
-
3715000876 Central Panel Kit, LTD. Includes 3 to 3cCentral Panel Kit, LTD. Includes 3 to 3c
-
3a704900434 Caution Decal, Lever And 4wd Switch. English VersionCaution Decal, Lever And 4wd Switch. English Version
-
3b704900475 Caution Label, Shifting Lever. French VersionCaution Label, Shifting Lever. French Version
-
3c704900476 Caution Label, 4wd Switch. French VersionCaution Label, 4wd Switch. French Version
