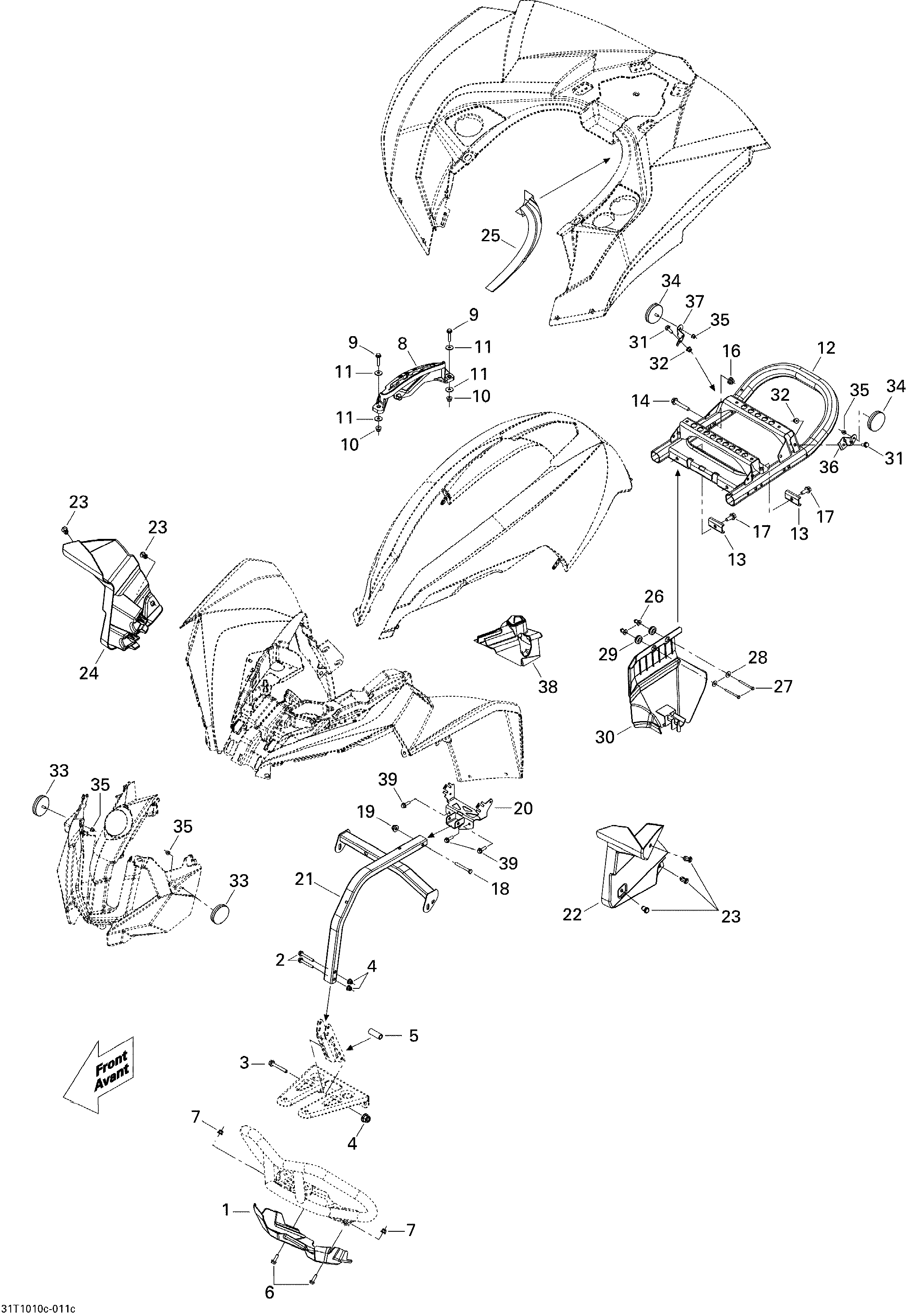

09- Body And Accessories 3 для BRP Renegade 800R EFI STD - 2010
-
№АртикулНазвание
-
1705002248 Front Proctection PlateFront Proctection Plate
-
2207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
3207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5504152798 SpacerSpacer
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8705003838 Lever IndicatorLever Indicator
-
9207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11224061201 Flat WasherFlat Washer
-
12705003657 Welded SupportWelded Support
-
13705003647 U ReinforcementU Reinforcement
-
14207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
18207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20705002671 Fuse Holder SupportFuse Holder Support
-
21705003663 Welded SupportWelded Support
-
22705003379 LH Inner Fender. STDLH Inner Fender. STD
-
23293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
24705002241 RH Inner FenderRH Inner Fender
-
25705002451 Reflective SheetReflective Sheet
-
26517303439 KnobKnob
-
27241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
28391301600 WasherWasher
-
29293720053 GrommetGrommet
-
30705004036 Thread Cover. STDThread Cover. STD
-
31207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33705002409 Reflector, Amber. North America_InternationalReflector, Amber. North America_International
-
34705002408 Reflector, Red. North America_InternationalReflector, Red. North America_International
-
35233251414 Hex. Flanged Elastic Nut M5. North America_InternationalHex. Flanged Elastic Nut M5. North America_International
-
36705002456 LH Reflector Support. North America_InternationalLH Reflector Support. North America_International
-
37705002459 RH Reflector Support. North America_InternationalRH Reflector Support. North America_International
-
38705003650 Master Cylinder Cover. North America_InternationalMaster Cylinder Cover. North America_International
-
39293150103 Pop RivetPop Rivet
