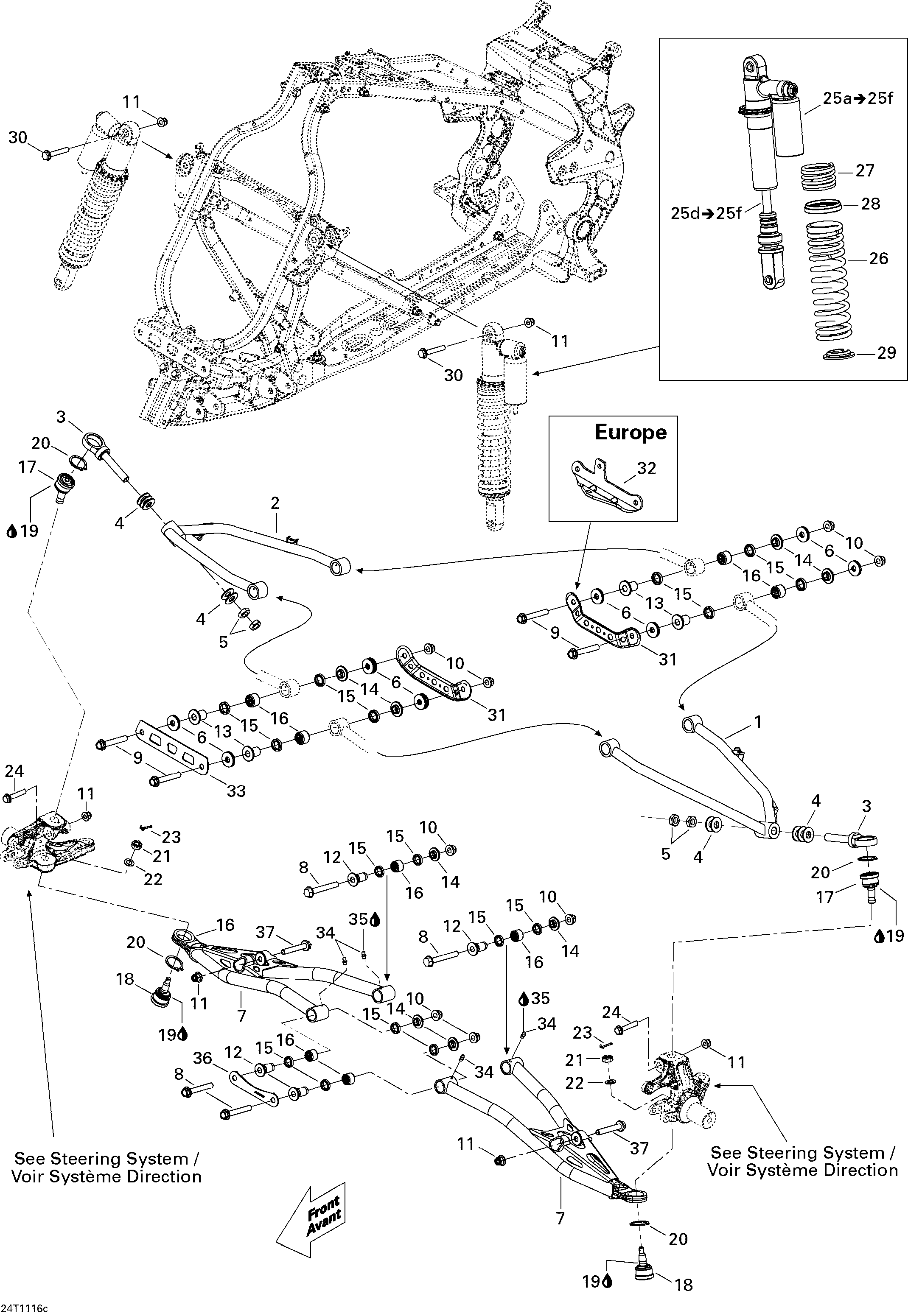

07- Front Suspension Xmx Europe для BRP DS 450 Xxc, Xmx EFI - 2011
-
№АртикулНазвание
-
1706200915 LH Upper ArmLH Upper Arm
-
2706200930 RH Upper ArmRH Upper Arm
-
3706200892 Ball Joint AttachBall Joint Attach
-
4250200079 Flat WasherFlat Washer
-
5232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
6250200014 Flat WasherFlat Washer
-
7706200904 Lower ArmLower Arm
-
8207607036 Hex. Flanged ScrewHex. Flanged Screw
-
9207608044 Hex. Flanged Screw M10 X 80Hex. Flanged Screw M10 X 80
-
10233201436 Flanged Elastic NutFlanged Elastic Nut
-
11233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12706200890 Inner BushingInner Bushing
-
13706200888 Inner BushingInner Bushing
-
14706200889 Inner BushingInner Bushing
-
15293200120 SealSeal
-
16293350064 Needle BearingNeedle Bearing
-
17706200462 Upper Ball JointUpper Ball Joint
-
18706200461 Lower Ball JointLower Ball Joint
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20293370009 Circlip 32 mmCirclip 32 mm
-
21250100094 Castle NutCastle Nut
-
22250200084 Flat WasherFlat Washer
-
23250400035 Cotter PinCotter Pin
-
24207605534 Hex. Flanged ScrewHex. Flanged Screw
-
25a706200765 Front Shock. Includes 25a to 25fFront Shock. Includes 25a to 25f
-
25b706000567 Spring StopperSpring Stopper
-
25c293600136 Shock Oil, 1 LiterShock Oil, 1 Liter
-
25d715500330 Ens. De Piston Et Tige Avant. Includes 25d to 25fEns. De Piston Et Tige Avant. Includes 25d to 25f
-
25e715900074 Circlip En CCirclip En C
-
25f715900075 Circlip En CCirclip En C
-
26706200833 SpringSpring
-
27706200876 SpringSpring
-
28503191281 Spring SpacerSpring Spacer
-
29706000528 Spring StopperSpring Stopper
-
30207606534 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
32709400685 SupportSupport
-
33706200759 PlatePlate
-
34250000315 Grease FittingGrease Fitting
-
35293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
36706200722 Front Suspension Lower PlateFront Suspension Lower Plate
-
37207605534 Hex. Flanged ScrewHex. Flanged Screw
