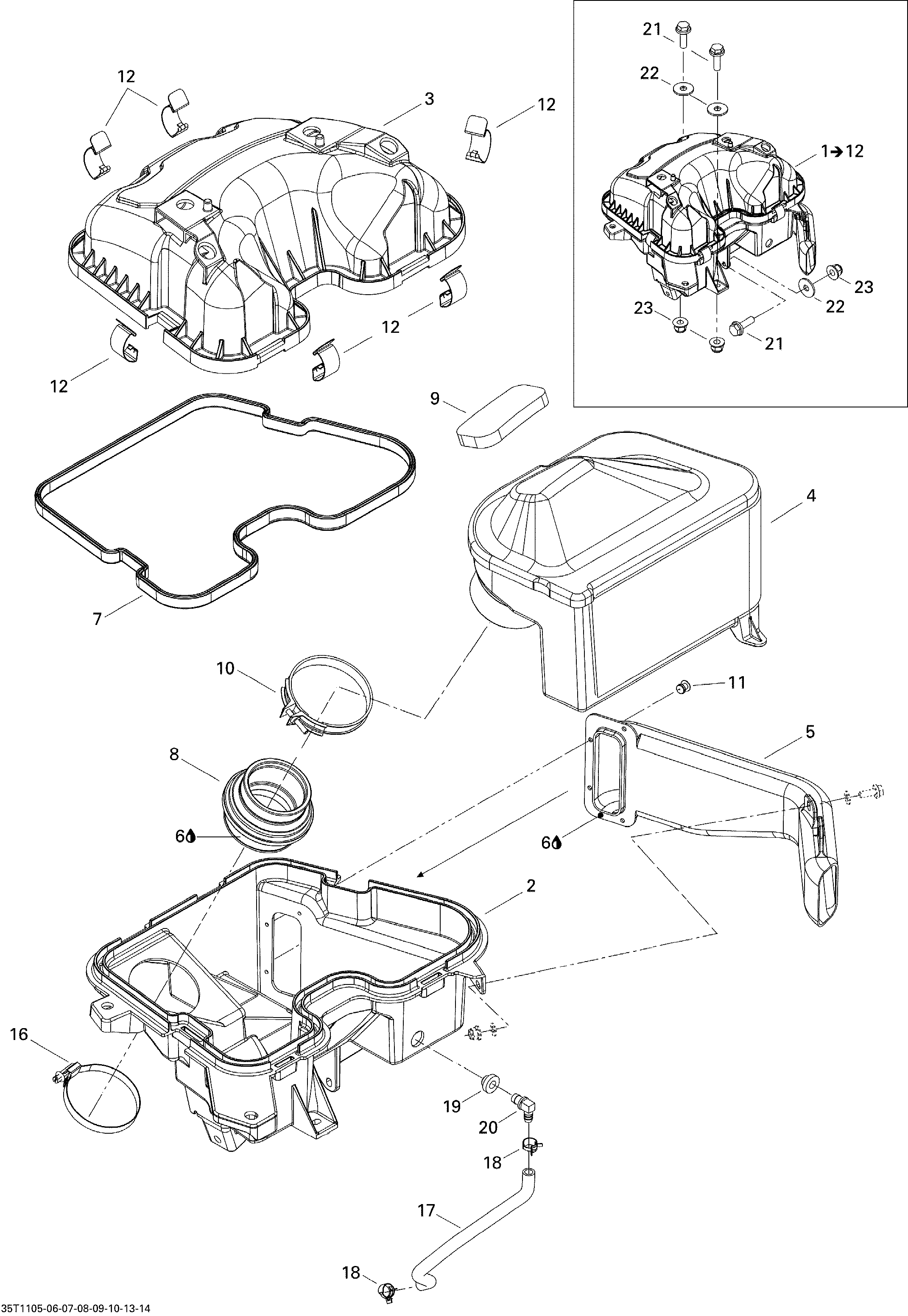

02- Air Intake Silencer для BRP Outlander 650 EFI - 2011
-
№АртикулНазвание
-
2707800291 Intake SilencerIntake Silencer
-
3707800252 Intake Silencer CoverIntake Silencer Cover
-
4707800288 Air FilterAir Filter
-
5707800175 Front Intake AdaptorFront Intake Adaptor
-
6293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
7707800197 Oil SealOil Seal
-
8707800289 Intake AdaptorIntake Adaptor
-
9707800304 FoamFoam
-
10293650198 ClampClamp
-
12707800231 Cover BracketCover Bracket
-
16293650091 Norma ClampNorma Clamp
-
17707800206 Vent HoseVent Hose
-
18293650110 Norma ClampNorma Clamp
-
19707800347 GrommetGrommet
-
20414523600 Elbow FittingElbow Fitting
-
21207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
22391302000 Flat WasherFlat Washer
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
