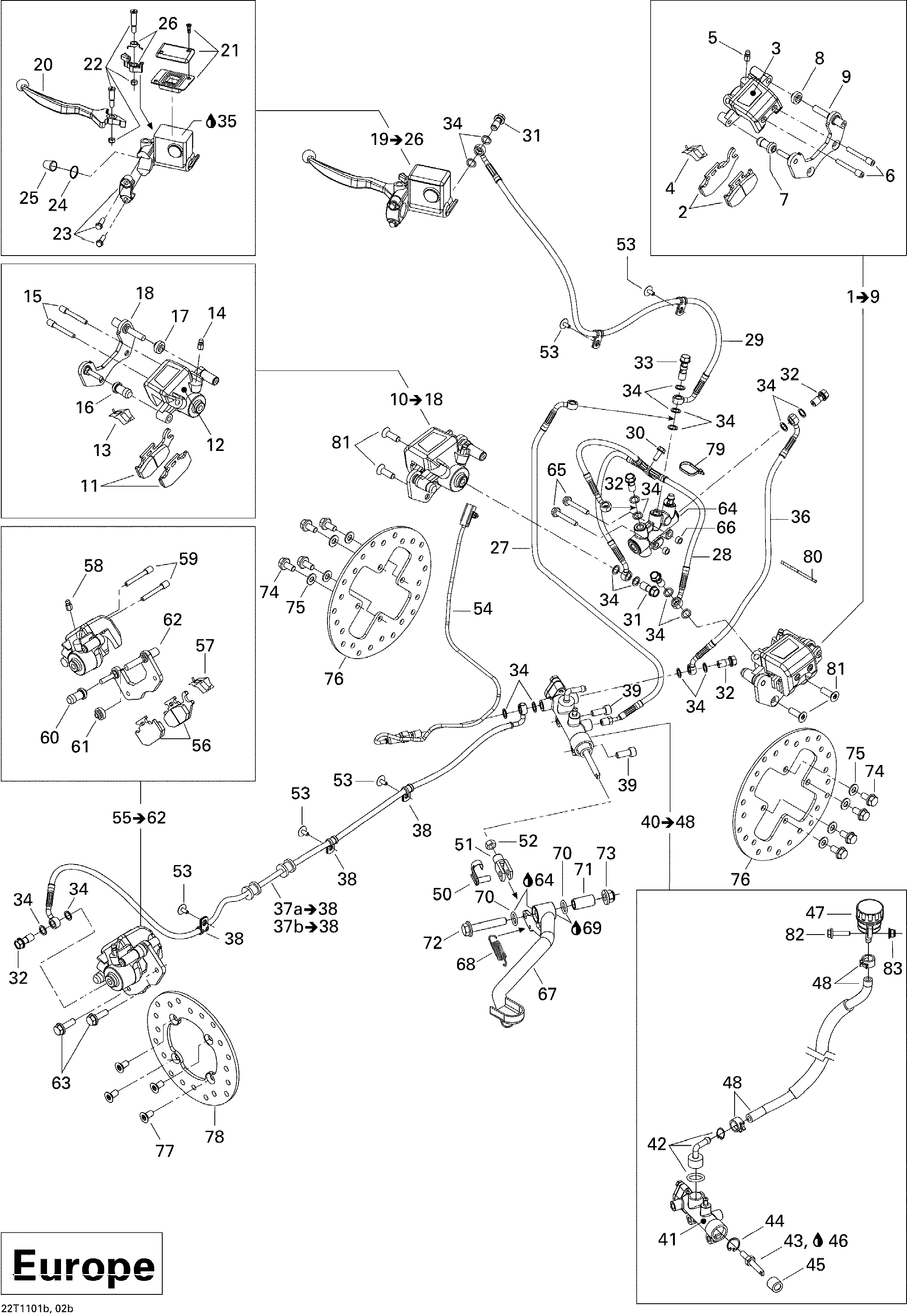

06- Hydraulic Brakes Europe для BRP Outlander Max 400 EFI - 2011
-
№АртикулНазвание
-
1705600728 RH Caliper. Includes 1 to 9RH Caliper. Includes 1 to 9
-
2705600004 Brake Pad KitBrake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeding ScrewBleeding Screw
-
6705600081 Pin SetPin Set
-
7705600082 Compression BootCompression Boot
-
8705600083 Compression BootCompression Boot
-
10705600729 LH Caliper. Includes 10 to 18LH Caliper. Includes 10 to 18
-
11705600014 Brake Pad KitBrake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeding ScrewBleeding Screw
-
15705600081 Pin SetPin Set
-
16705600082 Compression BootCompression Boot
-
17705600083 Compression BootCompression Boot
-
19705600844 Front Master Cylinder. Includes 19 to 26Front Master Cylinder. Includes 19 to 26
-
20705600243 Lever ArmLever Arm
-
21705600084 Cap SetCap Set
-
22705600246 Brake Lever Bolt KitBrake Lever Bolt Kit
-
23705600087 Bracket KitBracket Kit
-
24705600088 CirclipCirclip
-
25705600089 Compression BootCompression Boot
-
26705600477 Parking Kit, Brake Lever LockParking Kit, Brake Lever Lock
-
27705600756 Line BrakeLine Brake
-
28705600757 Line BrakeLine Brake
-
29705600758 Line BrakeLine Brake
-
30210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
31705600609 Banjo BoltBanjo Bolt
-
32705600609 Banjo BoltBanjo Bolt
-
33705600612 Banjo BoltBanjo Bolt
-
34705600310 Copper WasherCopper Washer
-
34705600310 Copper WasherCopper Washer
-
35293600062 Brake Fluid, GTLMA, DOT 4, 12 X 354 mlBrake Fluid, GTLMA, DOT 4, 12 X 354 ml
-
36705600759 Line BrakeLine Brake
-
37a705600580 Rear Hose. Includes 37a to 38Rear Hose. Includes 37a to 38
-
37b705600581 Rear Hose. Includes 37b to 38, MaxRear Hose. Includes 37b to 38, Max
-
38705600459 ClampClamp
-
39250000136 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
40705600743 Rear Master Cylinder Ass'y. Includes40 to 48Rear Master Cylinder Ass'y. Includes40 to 48
-
41705600255 Piston SetPiston Set
-
42705600064 Pusher Bracket, Hose ConnectorPusher Bracket, Hose Connector
-
44705600068 CirclipCirclip
-
45705600090 Compression BootCompression Boot
-
47705600182 Oil Tank, Brake Fluid ReservoirOil Tank, Brake Fluid Reservoir
-
48705600754 Oil Housing HoseOil Housing Hose
-
50250400007 PinPin
-
51705600100 YokeYoke
-
52232081414 Hex. Nut M8Hex. Nut M8
-
53390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
54705600798 Brake SwitchBrake Switch
-
55705600791 Rear Caliper. Includes 55 to 62Rear Caliper. Includes 55 to 62
-
56705600398 Brake Pad KitBrake Pad Kit
-
57705600079 SpringSpring
-
58705600080 Bleeding ScrewBleeding Screw
-
59705600081 Pin SetPin Set
-
60705600082 Compression BootCompression Boot
-
61705600083 Compression BootCompression Boot
-
63207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
64705600800 SplitterSplitter
-
65210264080 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
66293900029 BushingBushing
-
67705600784 Brake Pedal, BlackBrake Pedal, Black
-
68705600792 Brake Pedal SpringBrake Pedal Spring
-
69293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
70293300144 O-RingO-Ring
-
71705600815 Inner SpacerInner Spacer
-
72207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
73233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
74207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
75234281474 Conical Spring Washer M8Conical Spring Washer M8
-
76705600603 Disk BrakeDisk Brake
-
77235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
78705600604 Disk BrakeDisk Brake
-
79414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
80414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
81250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
82207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
83233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
