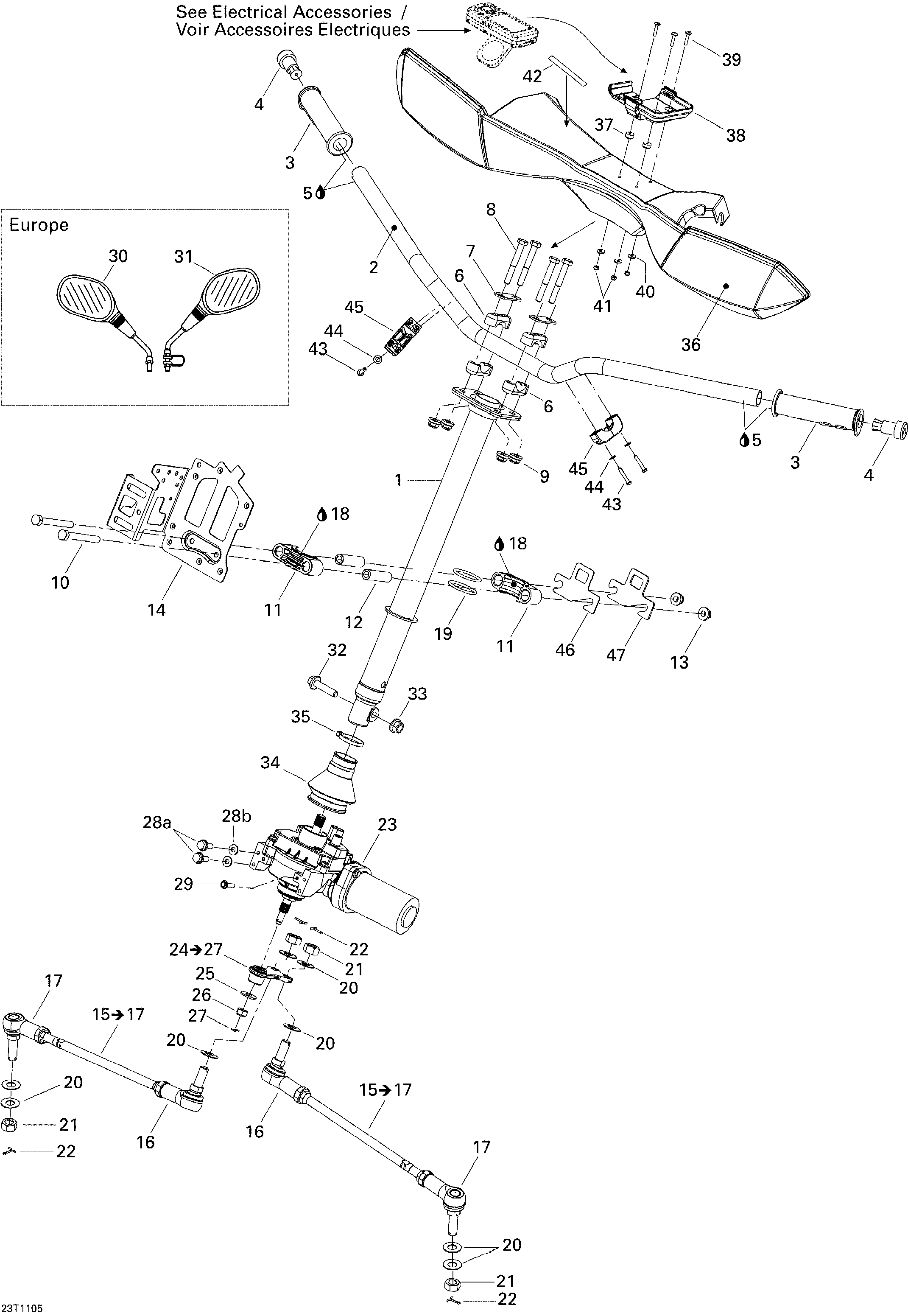

07- Steering для BRP Outlander Max 800R EFI Ltd - 2011
-
№АртикулНазвание
-
1709400566 Main TubeMain Tube
-
2709400877 Handle Bar, BlackHandle Bar, Black
-
3709400443 Handle Grip, GreyHandle Grip, Grey
-
4709400449 End PieceEnd Piece
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6506151622 Steering SupportSteering Support
-
7709400509 StiffnerStiffner
-
8207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
11709400471 Half BushingHalf Bushing
-
12709400072 BushingBushing
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14709400751 Module SupportModule Support
-
15709400485 Tie Rod Ass'y. Includes 15 to 17Tie Rod Ass'y. Includes 15 to 17
-
16709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
17709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
18293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
19293300068 O-RingO-Ring
-
20706200281 Hardened WasherHardened Washer
-
21250100099 Nut M12Nut M12
-
22211400013 Cotter PinCotter Pin
-
23709401001 Power Steering AssistPower Steering Assist
-
25250200086 Flat WasherFlat Washer
-
26250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
27211400013 Cotter PinCotter Pin
-
28a207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
28b234281474 Conical Spring Washer M8Conical Spring Washer M8
-
29210252040 Hex. Forming ScrewHex. Forming Screw
-
30709400406 LH Mirror. EuropeLH Mirror. Europe
-
31709400407 RH Mirror. EuropeRH Mirror. Europe
-
32207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
33233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
34709400674 BellowsBellows
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36703100248 Handle Bar ProtectorHandle Bar Protector
-
37709400781 Rubber BumperRubber Bumper
-
38709400764 GPS Module SupportGPS Module Support
-
39250000405 Torx Screw M4 X 20Torx Screw M4 X 20
-
40234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
41232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
42704901558 Decal, Dynamic Power SteeringDecal, Dynamic Power Steering
-
43241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
44211200035 Flat WasherFlat Washer
-
45517303264 U-ClampU-Clamp
-
46709400734 Shim 2 mmShim 2 mm
-
47709400735 Shim 1 mmShim 1 mm
