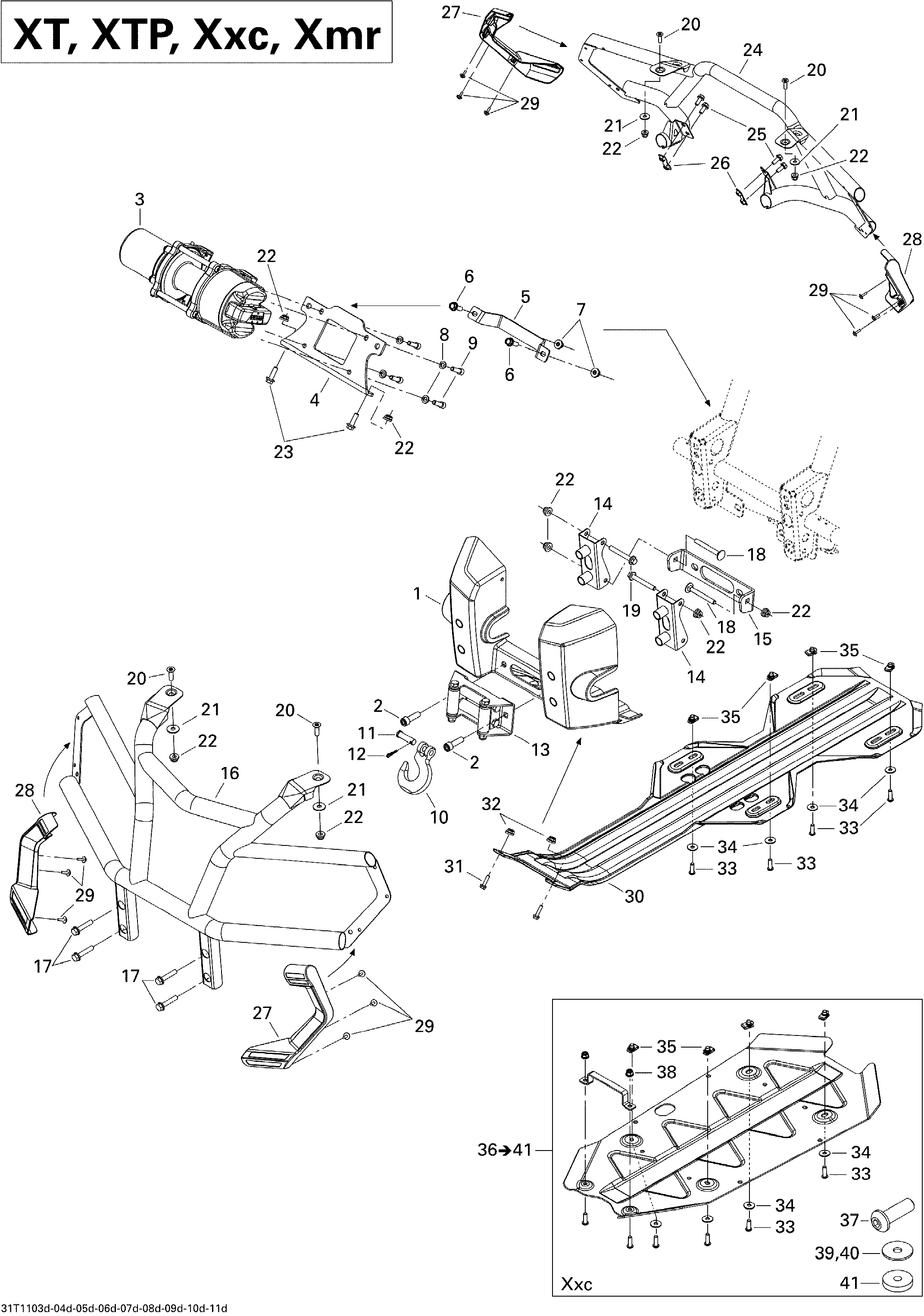

09- Body And Accessories 4, XT, XTP для BRP Outlander Max 800R EFI - 2011
-
№АртикулНазвание
-
1705003495 Guard Plate. STD, XmrGuard Plate. STD, Xmr
-
1705003496 Guard Plate. XT, XTP, LTDGuard Plate. XT, XTP, LTD
-
2205003544 Socket Screw M10 X 35. Except STD, XxcSocket Screw M10 X 35. Except STD, Xxc
-
2207602544 Hex. Flanged Screw M10 X 25. STDHex. Flanged Screw M10 X 25. STD
-
3705003296 Winch. Except STD, XxcWinch. Except STD, Xxc
-
4705004278 Mounting Plate, Black. Except STD, XxcMounting Plate, Black. Except STD, Xxc
-
5705001460 Winch Bracket, Black. Except STD, XxcWinch Bracket, Black. Except STD, Xxc
-
6207682544 Hex. Flanged Screw M8 X 25. Except STD, XxcHex. Flanged Screw M8 X 25. Except STD, Xxc
-
7233281414 Hex. Flanged Elastic Nut M8. Except STD, XxcHex. Flanged Elastic Nut M8. Except STD, Xxc
-
8234181401 Lock Washer 8 mm. Except STD, XxcLock Washer 8 mm. Except STD, Xxc
-
9205082044 Socket Head Screw M8 X 20. Except STD, XxcSocket Head Screw M8 X 20. Except STD, Xxc
-
10705002329 Hook. Except STD, XxcHook. Except STD, Xxc
-
11250400021 Clevis Pin. Except STD, XxcClevis Pin. Except STD, Xxc
-
12250400022 Cotter Pin. Except STD, XxcCotter Pin. Except STD, Xxc
-
13715000011 Winch Roller. Except STD, XxcWinch Roller. Except STD, Xxc
-
14705003828 Bumper Bracket. XT, XTP, LTDBumper Bracket. XT, XTP, LTD
-
15705003649 Winch Bracket. Except STD, XxcWinch Bracket. Except STD, Xxc
-
16705002812 Front Bumber. XT, XTP, LTDFront Bumber. XT, XTP, LTD
-
17207584044 Hex. Flanged Screw M8 X 40, Scotch Grip. MaxHex. Flanged Screw M8 X 40, Scotch Grip. Max
-
18207787044 Carriage Bolt M8 X 70. Except STD, XxcCarriage Bolt M8 X 70. Except STD, Xxc
-
19207686044 Hex. Flanged Screw M8 x 60. Except STD, XxcHex. Flanged Screw M8 x 60. Except STD, Xxc
-
20235482584 Torx Screw M8 X 25. MaxTorx Screw M8 X 25. Max
-
21234082410 Flat Washer 8 mm. MaxFlat Washer 8 mm. Max
-
22233281414 Hex. Flanged Elastic Nut M8. MaxHex. Flanged Elastic Nut M8. Max
-
23207682544 Hex. Flanged Screw M8 X 25. XT, XTP, LTDHex. Flanged Screw M8 X 25. XT, XTP, LTD
-
24705002806 Rear Bumber. XT, XTP, LTDRear Bumber. XT, XTP, LTD
-
25207582084 Hex. Flanged Screw M8 X 20, Scotch Grip. XT, XTP, LTDHex. Flanged Screw M8 X 20, Scotch Grip. XT, XTP, LTD
-
26705003796 Link Plate. XT, XTP, LTDLink Plate. XT, XTP, LTD
-
27705002802 LH Front Cap. XT, XTP, LTDLH Front Cap. XT, XTP, LTD
-
28705002803 RH Front Cap. XT, XTP, LTDRH Front Cap. XT, XTP, LTD
-
29250000113 Screw M4 X 16, Type K-40. XT, XTP, LTDScrew M4 X 16, Type K-40. XT, XTP, LTD
-
30715000688 Skid PlateSkid Plate
-
31207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
34234082410 Flat Washer 8 mmFlat Washer 8 mm
-
35250100111 Panel Nut M8Panel Nut M8
