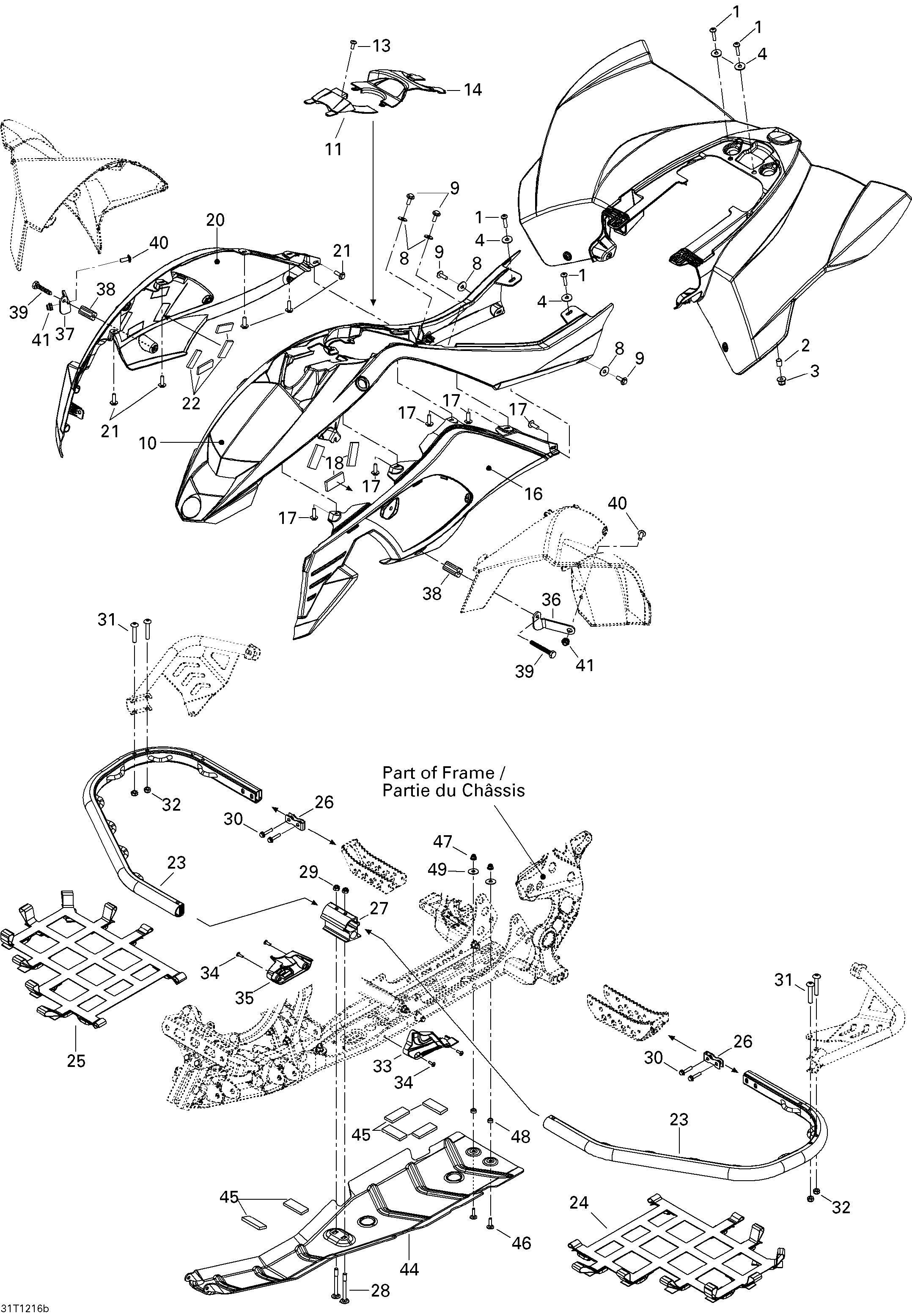

09- Body And Accessories 2 для BRP DS 450EFI Xxc & Xmx - 2012
-
№АртикулНазвание
-
1250000300 Torx Screw M5 X 25Torx Screw M5 X 25
-
2709000162 BushingBushing
-
3233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
4391301600 WasherWasher
-
8234062670 Flat WasherFlat Washer
-
9207663094 Hex. Flanged ScrewHex. Flanged Screw
-
10705001750 Front fasciaFront fascia
-
11705001758 Dash-BoardDash-Board
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14705002288 Access CoverAccess Cover
-
16705004039 LH Side PanelLH Side Panel
-
17243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
18705002447 GasketGasket
-
20705004040 RH Side PanelRH Side Panel
-
21243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
22705002447 GasketGasket
-
23705003065 Nerf Bar. XxcNerf Bar. Xxc
-
23705003924 Nerf Bar. XmxNerf Bar. Xmx
-
24705001952 LH Net. XxcLH Net. Xxc
-
24705003928 LH Net. XmxLH Net. Xmx
-
25705001953 RH Net. XxcRH Net. Xxc
-
25705003929 RH Net. XmxRH Net. Xmx
-
26705002646 Attachment PlateAttachment Plate
-
27705003761 Nerf Bar HolderNerf Bar Holder
-
28207788036 Carriage Bolt M8 X 80Carriage Bolt M8 X 80
-
29232581434 Elastic Stop NutElastic Stop Nut
-
30207682534 Hex. Flanged ScrewHex. Flanged Screw
-
31250000298 Torx Truss Screw M8 X 50. XxcTorx Truss Screw M8 X 50. Xxc
-
32232581434 Elastic Stop Nut. XxcElastic Stop Nut. Xxc
-
33705002631 LH Engine MouldingLH Engine Moulding
-
34250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
35705002632 RH Engine MouldingRH Engine Moulding
-
36705002695 LH Fender SupportLH Fender Support
-
37705002696 RH Fender SupportRH Fender Support
-
38705002697 BushingBushing
-
39207265560 Hex. Screw M6 X 55, Scotch GripHex. Screw M6 X 55, Scotch Grip
-
40250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
41293450274 InsertInsert
-
44705201761 Skid Plate. XxcSkid Plate. Xxc
-
45293830083 Protector. XxcProtector. Xxc
-
46207762534 Carriage Bolt M6 X 25. XxcCarriage Bolt M6 X 25. Xxc
-
47233261434 Flanged Elastic Nut M6. XxcFlanged Elastic Nut M6. Xxc
-
48293900067 Bushing. XxcBushing. Xxc
-
49234062600 Flat Washer M6, Stainless. XxcFlat Washer M6, Stainless. Xxc
