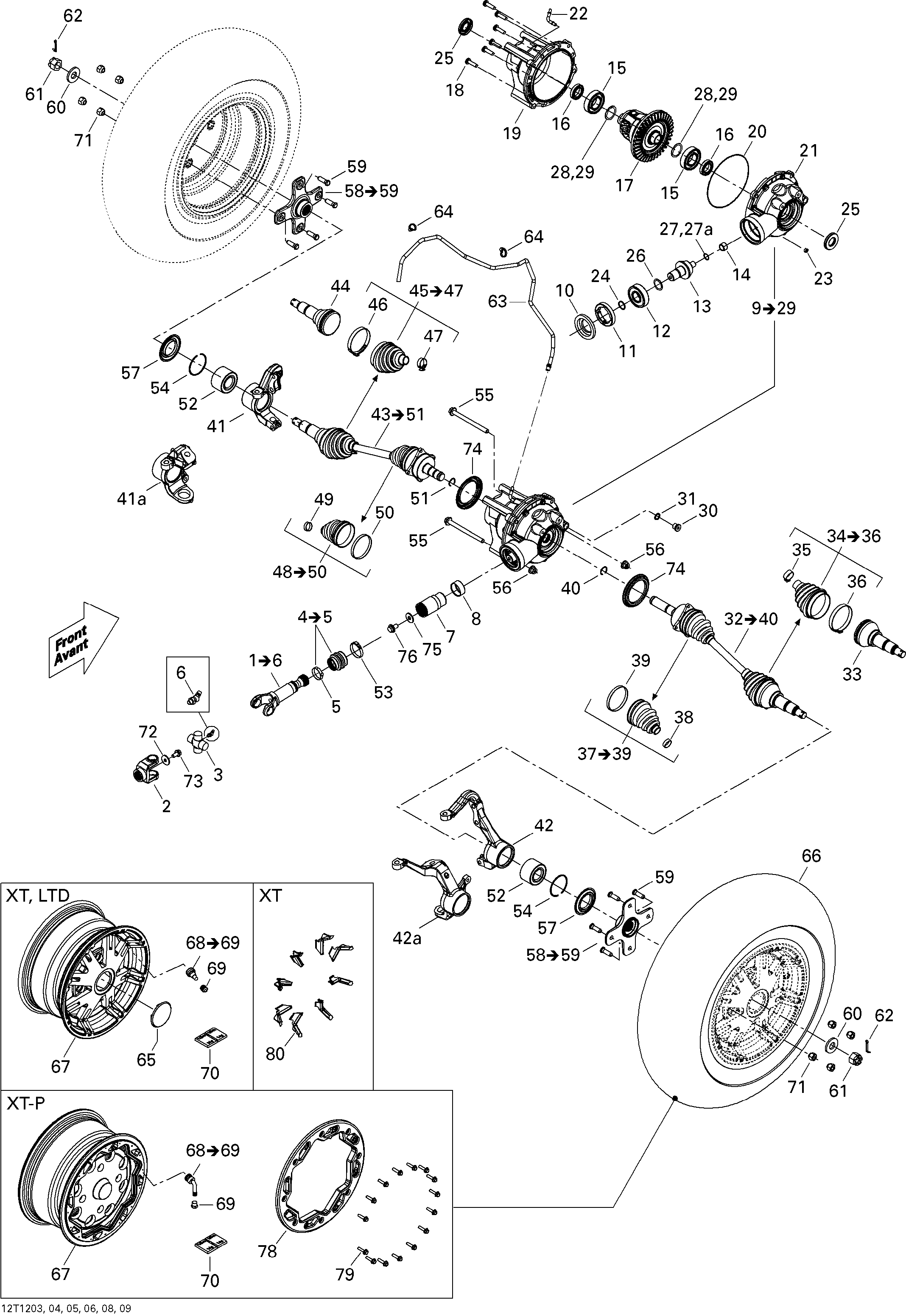

07- Drive System, Front для BRP Outlander 650EFI STD & XT - 2012
-
№АртикулНазвание
-
1705400551 Front Drive Axle Ass'y. Includes 1 to 6Front Drive Axle Ass'y. Includes 1 to 6
-
2705400391 Yoke, Fixed JointYoke, Fixed Joint
-
3703000024 Unit Pack KitUnit Pack Kit
-
4703500255 Rubber Boot KitRubber Boot Kit
-
5293650138 Oetiker ClampOetiker Clamp
-
6715900067 Grease FittingGrease Fitting
-
7703500678 Front Bushing Shaft kitFront Bushing Shaft kit
-
8705400036 Wear RingWear Ring
-
9705400772 Front Differential Ass'y. STD, Includes 9 to 29Front Differential Ass'y. STD, Includes 9 to 29
-
9705401077 Front Differential Ass'y. XT, Includes 9 to 29Front Differential Ass'y. XT, Includes 9 to 29
-
10705400027 Oil SealOil Seal
-
11705400661 NutNut
-
12705500260 Ball BearingBall Bearing
-
13705501570 10Teeth Pinion10Teeth Pinion
-
14705501408 Needle BearingNeedle Bearing
-
15705500259 Ball BearingBall Bearing
-
16293350044 Ball BearingBall Bearing
-
17705400645 Differential. STDDifferential. STD
-
17705400822 Differential. XTDifferential. XT
-
18705500892 ScrewScrew
-
19705400762 Front CoverFront Cover
-
20705500265 SealSeal
-
21705400761 Front CoverFront Cover
-
22705500893 Vent ValveVent Valve
-
23705500894 Drain PlugDrain Plug
-
24705500267 O-RingO-Ring
-
25705500255 Oil SealOil Seal
-
26703500049 Pinion Shim KitPinion Shim Kit
-
27705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
27a705501162 Pinion Gear ShimPinion Gear Shim
-
28703500288 Differential Shim KitDifferential Shim Kit
-
29703500050 Differential Shim KitDifferential Shim Kit
-
30250400041 Screw PlugScrew Plug
-
31705500506 Copper WasherCopper Washer
-
32705400935 RH Homocinetic Joint. Includes 32 to 40RH Homocinetic Joint. Includes 32 to 40
-
33705500560 CV JointCV Joint
-
34705400511 Wheel Boot KitWheel Boot Kit
-
35293650194 Oetiker Clamp 70mmOetiker Clamp 70mm
-
36293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
37705400512 Differential Boot Kit. Includes 37 to 39Differential Boot Kit. Includes 37 to 39
-
38293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
39293650193 Oetiker Clamp 67mmOetiker Clamp 67mm
-
40705400042 CirclipCirclip
-
41a705400817 LH KnuckleLH Knuckle
-
42a705400819 RH KnuckleRH Knuckle
-
43705400934 LH Homocinetic Joint. Includes 43 to 51LH Homocinetic Joint. Includes 43 to 51
-
44705500560 CV JointCV Joint
-
45705400511 Wheel Boot Kit . Includes 45 to 47Wheel Boot Kit . Includes 45 to 47
-
46293650194 Oetiker Clamp 70mmOetiker Clamp 70mm
-
47293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
48705400512 Differential Boot Kit. Includes 48 to 50Differential Boot Kit. Includes 48 to 50
-
49293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
50293650193 Oetiker Clamp 67mmOetiker Clamp 67mm
-
51705400042 CirclipCirclip
-
52293350040 Cone BearingCone Bearing
-
53293650138 Oetiker ClampOetiker Clamp
-
54293370019 CirclipCirclip
-
55230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
56233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
57705501121 Wear SleeveWear Sleeve
-
58705501199 Wheel Hub Ass'y. Includes 58 to 59Wheel Hub Ass'y. Includes 58 to 59
-
59250300045 Wheel StudWheel Stud
-
60250200049 Spring WasherSpring Washer
-
61250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
62250400036 Cotter PinCotter Pin
-
63415080200 Hose, PolyurethaneHose, Polyurethane
-
64414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
65705400680 Wheel CapWheel Cap
-
66705400431 Front Tire. XTFront Tire. XT
-
66705400382 Front Tire. STD InternationalFront Tire. STD International
-
66705400382 Front Tire. STD North AmericaFront Tire. STD North America
-
66705400610 Front Tire. EuropeFront Tire. Europe
-
67705400687 Front Rim. XTFront Rim. XT
-
67705400853 Front Rim. STDFront Rim. STD
-
68705400193 Rim Valve with CapRim Valve with Cap
-
69293000110 Valve CapValve Cap
-
70705501385 1/2 OZ Weight1/2 OZ Weight
-
71250100082 Chrome Wheel Nut M10 X 1.25. STDChrome Wheel Nut M10 X 1.25. STD
-
71250100100 Black Wheel Nut M10 X 1.25. XTBlack Wheel Nut M10 X 1.25. XT
-
72250200102 Flat Washer M12Flat Washer M12
-
73250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
74705400780 Wear SleeveWear Sleeve
-
75250200102 Flat Washer M12Flat Washer M12
-
76250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
80705400950 Fin Wheel Moulding, Steel Gray. XT MagnesiumFin Wheel Moulding, Steel Gray. XT Magnesium
-
80705400681 Fin Wheel Moulding, Yellow. XT YellowFin Wheel Moulding, Yellow. XT Yellow
-
80705401071 Fin Wheel Moulding, Red. XT RedFin Wheel Moulding, Red. XT Red
