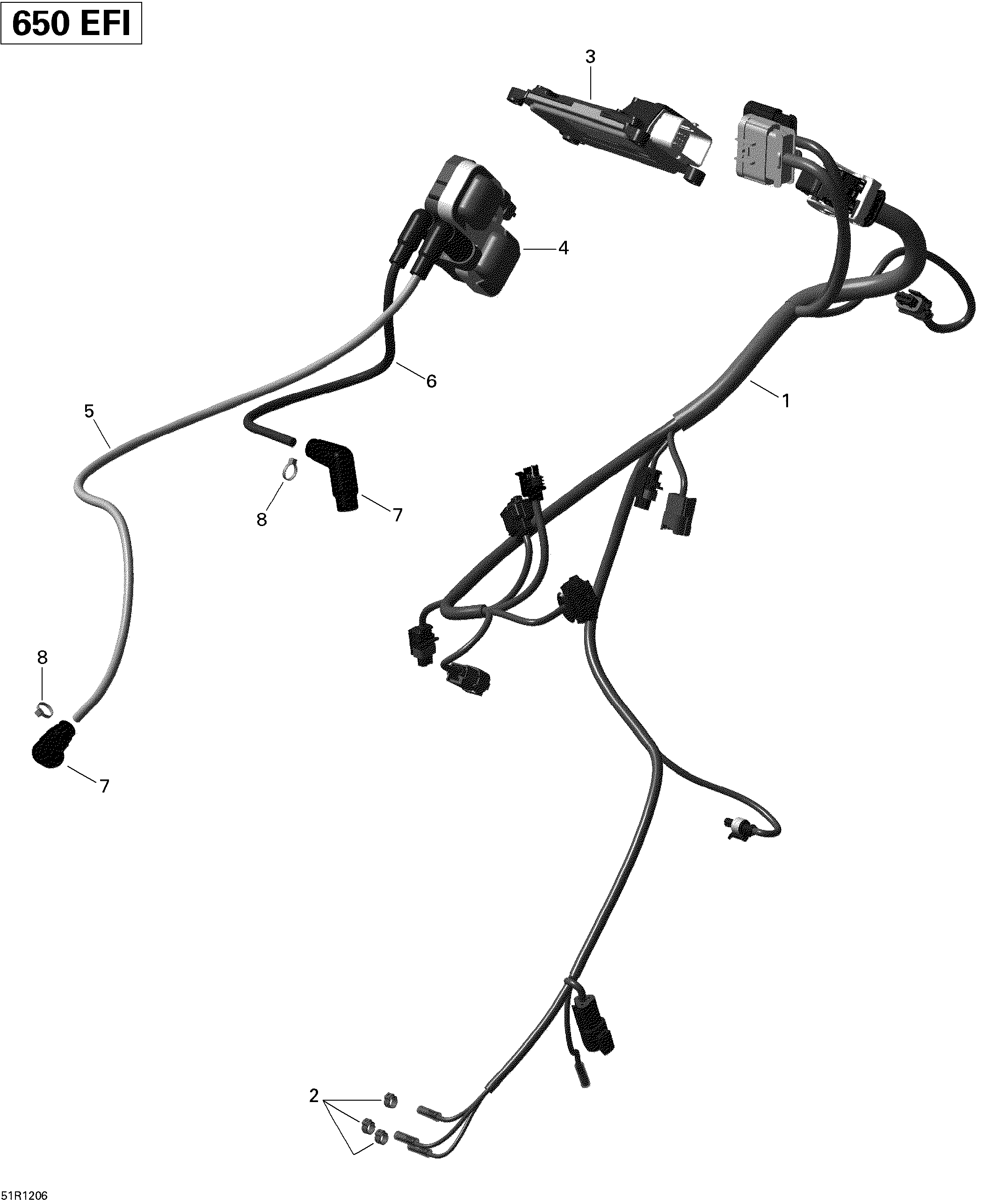

10- Engine Harness And Electronic Module _2VCA Model для BRP Outlander MAX 650EFI STD, XT & XT-P - 2012
-
№АртикулНазвание
-
1420665909 Engine Wiring HarnessEngine Wiring Harness
-
2420853648 ClampClamp
-
3420266853 ECM ConnectorECM Connector
-
4278001546 Ignition CoilIgnition Coil
-
5420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
6420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
7420265240 Spark Plug ConnectorSpark Plug Connector
-
8420866710 Tie RapTie Rap
