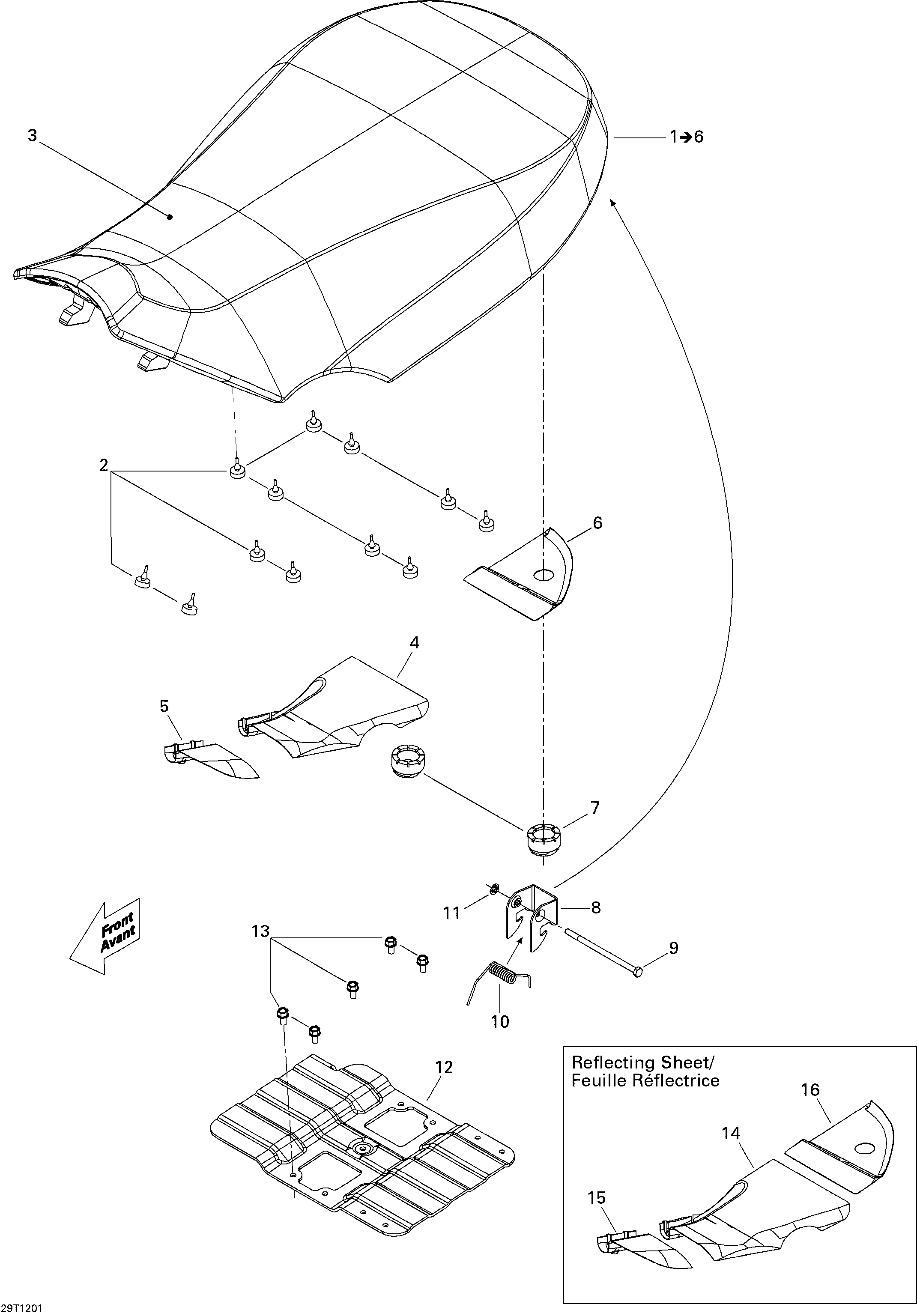

09- Seat для BRP Outlander STD, XT, 400 EFI - 2012
-
№АртикулНазвание
-
1715500322 Seat Ass'y. Includes 1 to 6Seat Ass'y. Includes 1 to 6
-
2708000759 Rubber StopperRubber Stopper
-
3708000474 Seat CoverSeat Cover
-
4708000650 Reflecting SheetReflecting Sheet
-
5708000649 Reflecting SheetReflecting Sheet
-
6708000514 Reflecting SheetReflecting Sheet
-
7708000760 Bumper RubberBumper Rubber
-
8708000144 Latch, BlackLatch, Black
-
9230061044 Hex. Screw M6 X 110Hex. Screw M6 X 110
-
10708000369 SpringSpring
-
11732610072 Push NutPush Nut
-
12708000629 Seat ReinforcementSeat Reinforcement
-
13210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
14708000650 Reflecting SheetReflecting Sheet
-
15708000649 Reflecting SheetReflecting Sheet
-
16708000514 Reflecting SheetReflecting Sheet
