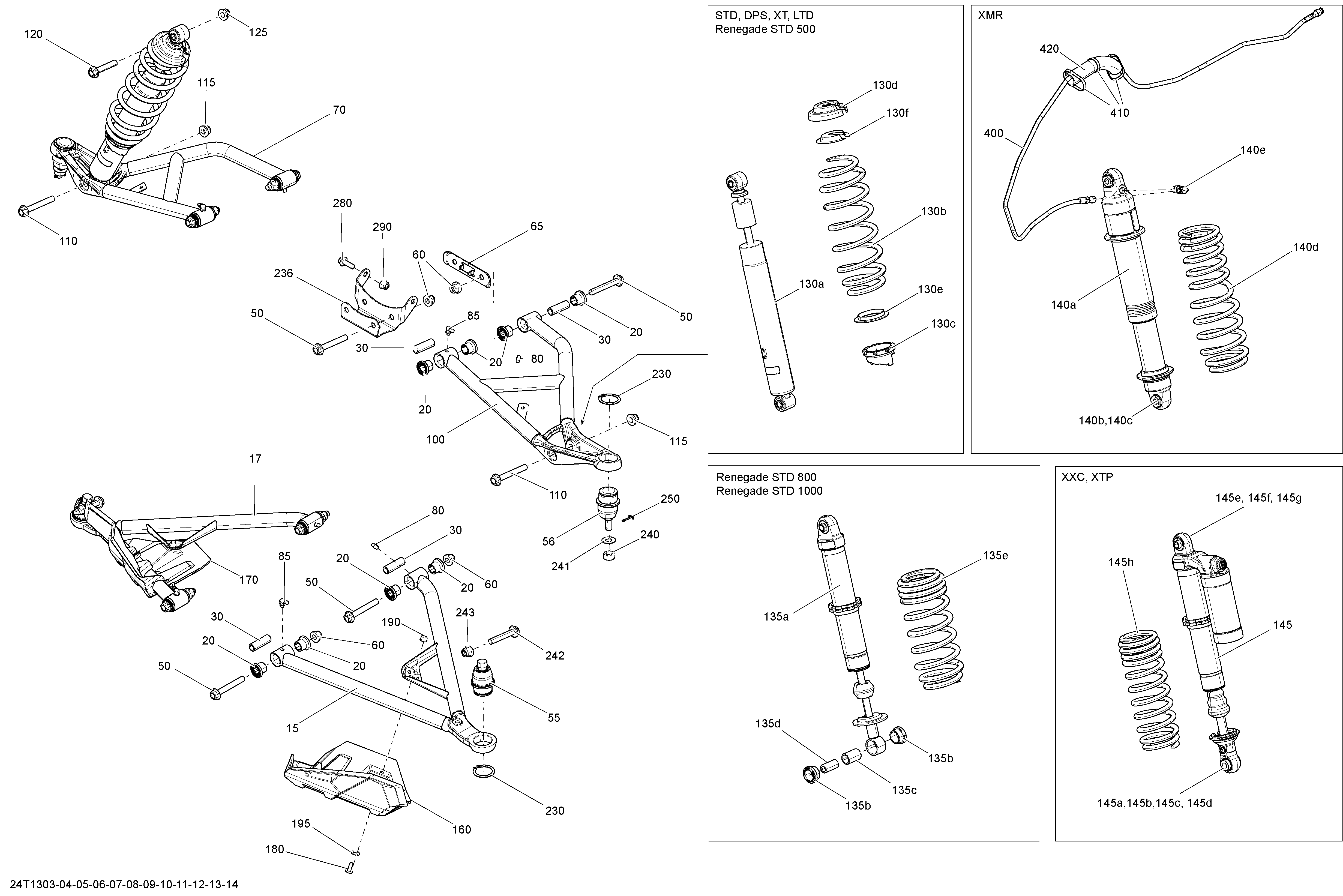

07- Front Suspension для BRP Outlander 1000EFI, DPS, XT & XT-P - 2013
-
№АртикулНазвание
-
15706200955 LH Lower ArmLH Lower Arm
-
17706200984 RH Lower ArmRH Lower Arm
-
20703500875 Bushing Kit. Includes 30Bushing Kit. Includes 30
-
30703500875 Bushing Kit. Includes 20Bushing Kit. Includes 20
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55706201393 Ball JointBall Joint
-
56706201394 Ball JointBall Joint
-
60233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
65706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
70706201527 RH Upper ArmRH Upper Arm
-
80408200700 Grease FittingGrease Fitting
-
85293550056 Grease Fitting 90°Grease Fitting 90°
-
100706201526 LH Upper ArmLH Upper Arm
-
110207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
115233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
120207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
125233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
130a706201170 Shock Absorber. Outlander, DPS, XTShock Absorber. Outlander, DPS, XT
-
130b706201171 Black Spring. Outlander, DPSBlack Spring. Outlander, DPS
-
130b706201173 Black Spring. Outlander, XTBlack Spring. Outlander, XT
-
130c505070150 Adjustment CamAdjustment Cam
-
130d706200881 Spring StopperSpring Stopper
-
130e503187500 Spring GuideSpring Guide
-
130f706200785 Cap. OutlanderCap. Outlander
-
145706201257 Shock Absorber. XTP, Includes 145 to 145gShock Absorber. XTP, Includes 145 to 145g
-
145a706201586 Bushing Sleeve. XTPBushing Sleeve. XTP
-
145b715900209 O-Ring Bushing. XTPO-Ring Bushing. XTP
-
145c715900252 Retaining Ring. XTPRetaining Ring. XTP
-
145d715900251 Spherical Bearing. XTPSpherical Bearing. XTP
-
145e706201585 Bushing Sleeve. XTPBushing Sleeve. XTP
-
145f715900210 Interior Bushing. XTPInterior Bushing. XTP
-
145g706201648 Bushing. XTPBushing. XTP
-
145h706201637 Black Spring. XTPBlack Spring. XTP
-
160706201303 LH ProtectorLH Protector
-
170706201304 RH ProtectorRH Protector
-
180250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
190233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
195234062670 Flat WasherFlat Washer
-
230293370035 CirclipCirclip
-
236705203247 Upper Front HolderUpper Front Holder
-
240250100099 Nut M12Nut M12
-
241706200281 Hardened WasherHardened Washer
-
242207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
243233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
250211400017 Cotter PinCotter Pin
-
280207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
