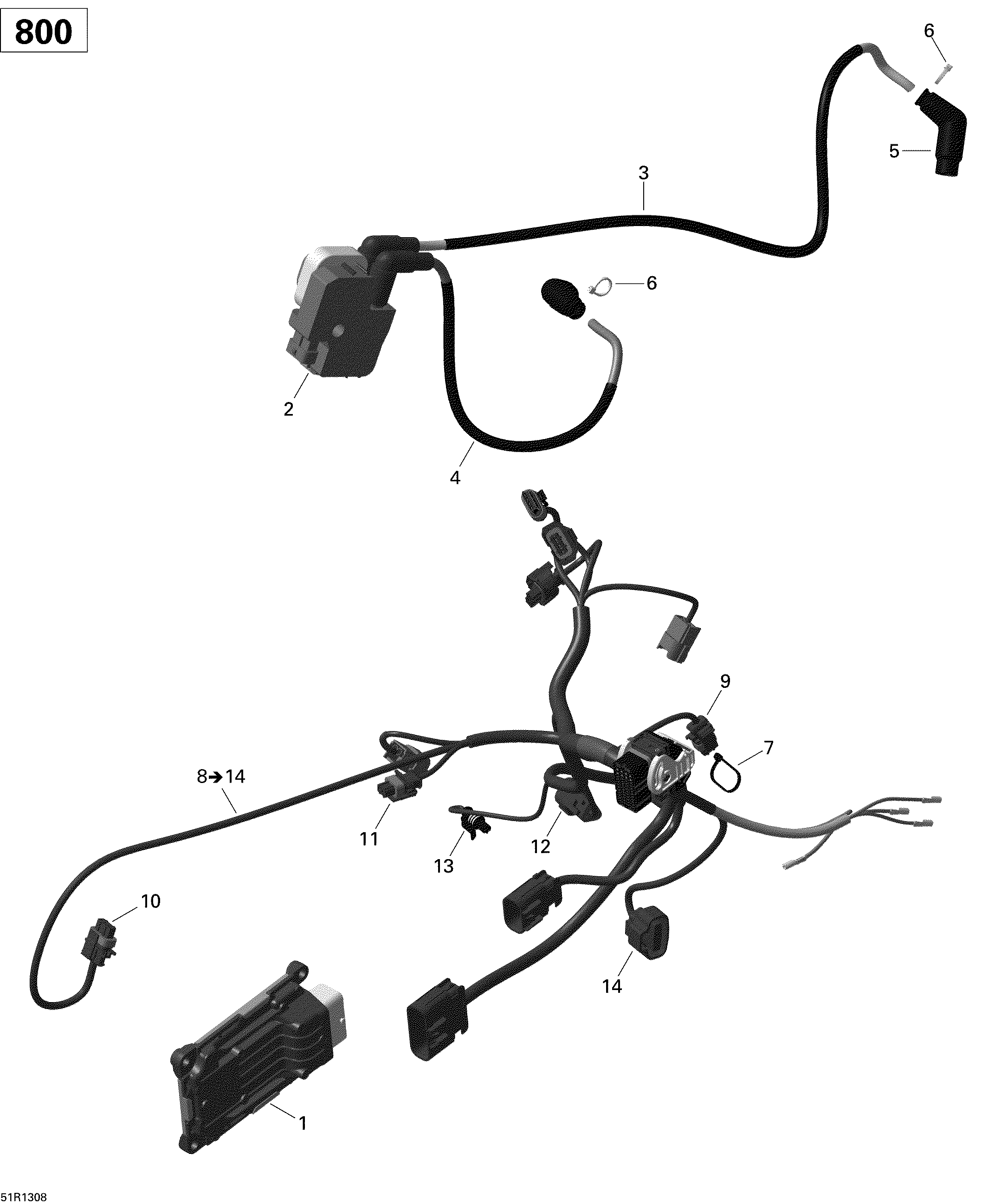

10- Engine Harness And Electronic Module Outlander для BRP Outlander 800R EFI, STD, DPS, XT & XT-P - 2013
-
№АртикулНазвание
-
1420266741 ECM Connector. Except EuropeECM Connector. Except Europe
-
1420266910 ECM Connector. EuropeECM Connector. Europe
-
2278001546 Ignition CoilIgnition Coil
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8420665908 Engine Wiring Harness. Includes 8 to 14Engine Wiring Harness. Includes 8 to 14
-
9278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
10278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
11278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
12409207000 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
13278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
14710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
