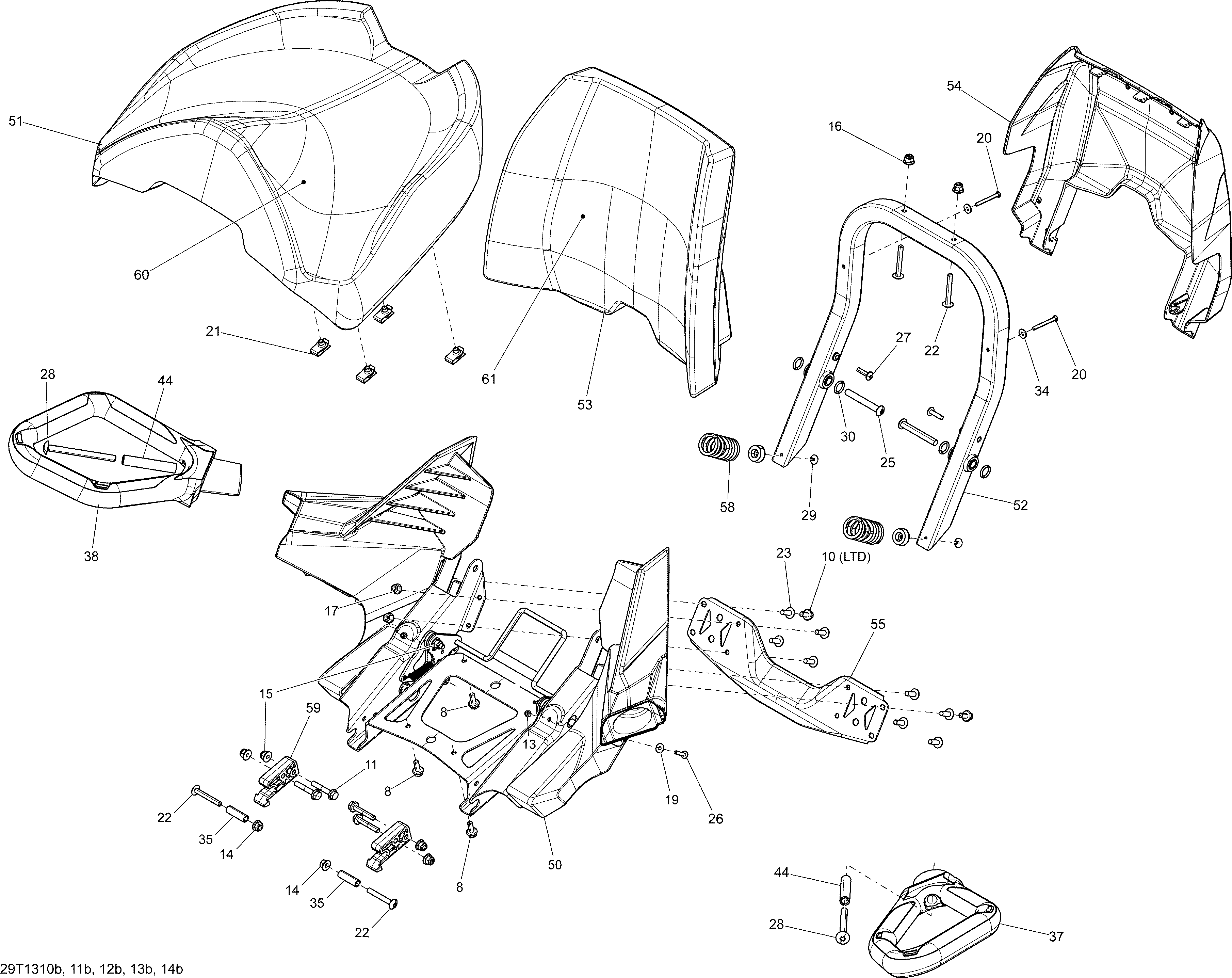

09- Seat Passenger для BRP Outlander MAX 500EFI STD, DPS & XT - 2013
-
№АртикулНазвание
-
8207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
11207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
13232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
17233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
19234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
20250000008 Hex. Screw K40 X 40Hex. Screw K40 X 40
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
22250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
23250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
25250000383 Torx Screw M8 X 60, Scotch GripTorx Screw M8 X 60, Scotch Grip
-
26250000405 Torx Screw M4 X 20Torx Screw M4 X 20
-
27250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
28250000617 Torx Screw M8 X 90Torx Screw M8 X 90
-
29293150170 Pop Rivet 5/32''Pop Rivet 5/32''
-
30293300006 O-RingO-Ring
-
34517225900 Flat WasherFlat Washer
-
35517305142 SpacerSpacer
-
37703500806 LH Passenger Seat Handle Kit. Includes 28, 44LH Passenger Seat Handle Kit. Includes 28, 44
-
38703500807 RH Passenger Seat Handle Kit. Includes 28, 44RH Passenger Seat Handle Kit. Includes 28, 44
-
44705006129 SleeveSleeve
-
50703500808 Passenger Seat Support KitPassenger Seat Support Kit
-
51708000980 Passenger Seat Ass'yPassenger Seat Ass'y
-
52703500809 Passenger Support Backrest KitPassenger Support Backrest Kit
-
53708000982 BackrestBackrest
-
54708001057 Backrest CapBackrest Cap
-
55708001058 Painted BracketPainted Bracket
-
58708001096 Compressor SpringCompressor Spring
-
59708001116 Seat GuideSeat Guide
-
60708000981 Seat CoverSeat Cover
-
61708000983 Backrest CoverBackrest Cover
