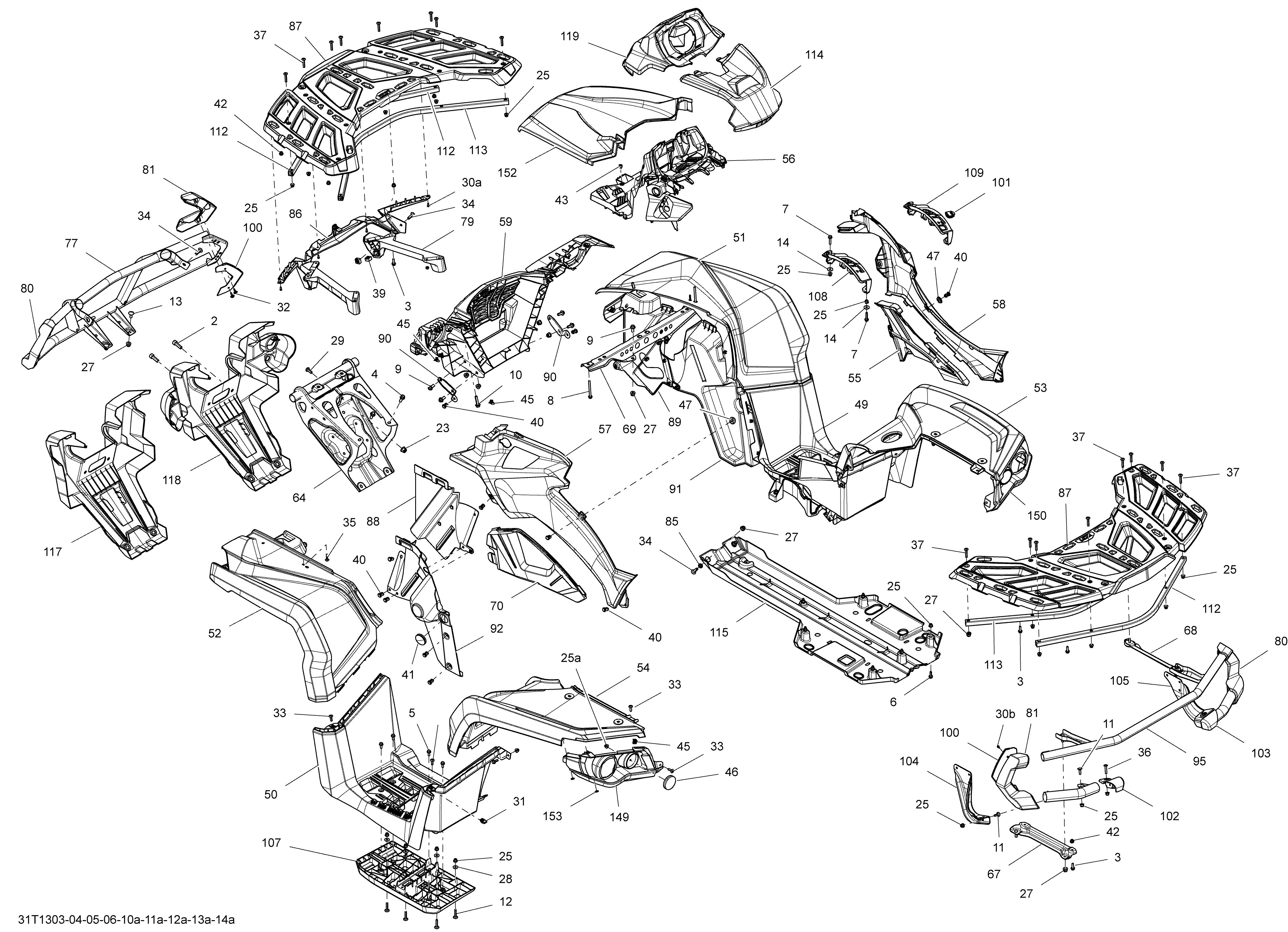

09- Body And Accessories для BRP Outlander MAX 650EFI STD, DPS & XT - 2013
-
№АртикулНазвание
-
2205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
3207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
8207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
10207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
11207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
12207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
13207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
14224061201 Flat WasherFlat Washer
-
23233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
25233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
27233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
28234062410 Flat Washer 6 mmFlat Washer 6 mm
-
29236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
33250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
34250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
35250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
36250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
37250000541 Torx Screw M6 X 35Torx Screw M6 X 35
-
39269501387 Nut Housing Ass'yNut Housing Ass'y
-
40293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
41293250242 Rubber CoverRubber Cover
-
42293450274 InsertInsert
-
43293830005 Rubber PlugRubber Plug
-
45517302785 ClipClip
-
46705002408 Reflector, RedReflector, Red
-
47705003264 GrommetGrommet
-
51715001781 RH Front Fender Kit, RedRH Front Fender Kit, Red
-
51715001783 RH Front Fender Kit, CamoRH Front Fender Kit, Camo
-
51715001785 RH Front Fender Kit, MagnesiumRH Front Fender Kit, Magnesium
-
51715001791 RH Front Fender Kit, YellowRH Front Fender Kit, Yellow
-
52715001769 LH Front Fender Kit, YellowLH Front Fender Kit, Yellow
-
52715001772 LH Front Fender Kit, RedLH Front Fender Kit, Red
-
52715001775 LH Front Fender Kit, CamoLH Front Fender Kit, Camo
-
52715001779 LH Front Fender Kit, MagnesiumLH Front Fender Kit, Magnesium
-
53715001820 RH Rear Fender Kit, YellowRH Rear Fender Kit, Yellow
-
53715001821 RH Rear Fender Kit, Yellow. Europe, Int'lRH Rear Fender Kit, Yellow. Europe, Int'l
-
53715001823 RH Rear Fender Kit, RedRH Rear Fender Kit, Red
-
53715001833 RH Rear Fender Kit, Red. Int'lRH Rear Fender Kit, Red. Int'l
-
53715001811 RH Rear Fender Kit, CamoRH Rear Fender Kit, Camo
-
53715001835 RH Rear Fender Kit, Camo. Int'lRH Rear Fender Kit, Camo. Int'l
-
53715001819 RH Rear Fender Kit, MagnesiumRH Rear Fender Kit, Magnesium
-
54715001793 LH Rear Fender Kit, YellowLH Rear Fender Kit, Yellow
-
54715001795 LH Rear Fender Kit, RedLH Rear Fender Kit, Red
-
54715001804 LH Rear Fender Kit, CamoLH Rear Fender Kit, Camo
-
54715001806 LH Rear Fender Kit, MagnesiumLH Rear Fender Kit, Magnesium
-
54715001812 LH Rear Fender Kit, Yellow. EuropeLH Rear Fender Kit, Yellow. Europe
-
55705003444 Engine CoverEngine Cover
-
56715001552 Dash Support KitDash Support Kit
-
57705003446 Yellow LH PannelYellow LH Pannel
-
57705005237 LH Pannel, RedLH Pannel, Red
-
58705003447 Yellow RH PannelYellow RH Pannel
-
58705005241 RH Pannel, RedRH Pannel, Red
-
59705003552 Front FaciaFront Facia
-
64705004165 Front Bumper SupportFront Bumper Support
-
67705003995 LH SupportLH Support
-
68705003996 RH SupportRH Support
-
69705006812 Cargo Rack Center SupportCargo Rack Center Support
-
70705004147 LH Extension PannelLH Extension Pannel
-
77705005018 Front BumperFront Bumper
-
79705004230 LH SupportLH Support
-
79705004231 RH SupportRH Support
-
80705004409 Cap (Front LH) (Rear RH)Cap (Front LH) (Rear RH)
-
81705004410 Cap (Front RH) (Rear LH)Cap (Front RH) (Rear LH)
-
85705004497 RingRing
-
86705004523 Lugage Rack MouldingLugage Rack Moulding
-
87715001852 Rack KitRack Kit
-
88705004557 LH Inner FenderLH Inner Fender
-
89705004558 RH Inner FenderRH Inner Fender
-
90705004565 Lower Fender SupportLower Fender Support
-
91705004587 RH Inner FenderRH Inner Fender
-
92705004588 LH Inner FenderLH Inner Fender
-
95705005019 Black BumperBlack Bumper
-
100705004987 Bracket CoverBracket Cover
-
101705005003 Shiftgate Trim. EuropeShiftgate Trim. Europe
-
102705005094 LH BracketLH Bracket
-
103705005095 RH BracketRH Bracket
-
104705005166 LH SupportLH Support
-
105705005167 RH SupportRH Support
-
107705005254 LH. FootboardLH. Footboard
-
107705005253 RH. FootboardRH. Footboard
-
108705005258 IndicatorIndicator
-
109705005259 Indicator. EuropeIndicator. Europe
-
112705005469 TubeTube
-
113705005470 TubeTube
-
114715001765 Dash KitDash Kit
-
115705006018 Skid PlateSkid Plate
-
117705006299 Front Guard PlateFront Guard Plate
-
118705006300 Front Guard Plate. EuropeFront Guard Plate. Europe
-
119705006321 Gage Support. STD, DPS, XT ModelGage Support. STD, DPS, XT Model
-
149705006643 LH Rear FaciaLH Rear Facia
-
149705006651 LH Rear Facia. EuropeLH Rear Facia. Europe
-
150705006650 RH Rear FaciaRH Rear Facia
-
150705006652 RH Rear Facia. EuropeRH Rear Facia. Europe
-
152715001541 Hood Kit, YellowHood Kit, Yellow
-
152715001543 Hood Kit, RedHood Kit, Red
-
152715001547 Hood Kit, CamoHood Kit, Camo
-
152715001549 Hood Kit, MagnesiumHood Kit, Magnesium
-
153732610072 Push NutPush Nut
-
25a233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
30a241140060 Screw K40 X 10Screw K40 X 10
-
30b250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
