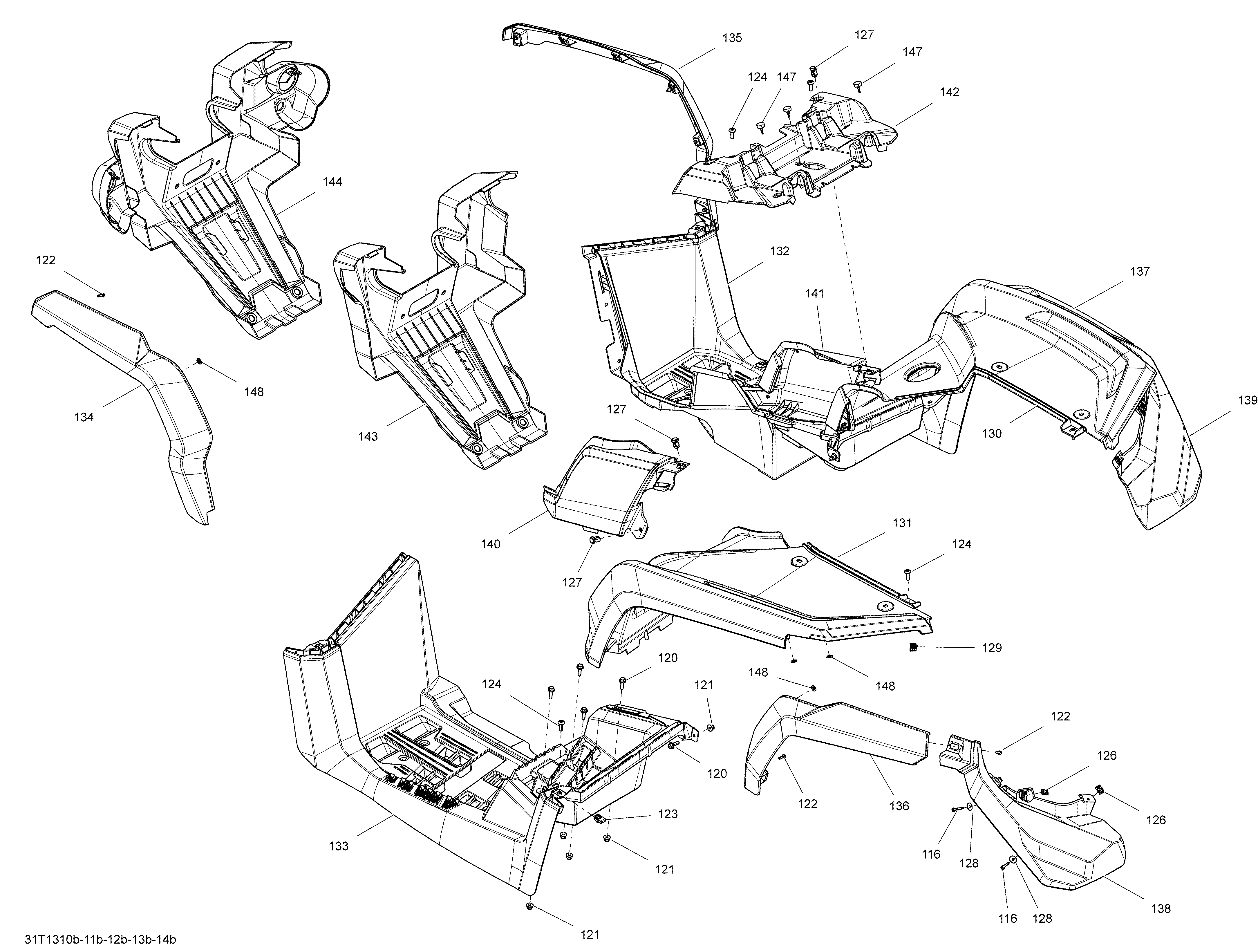

09- Body And Accessories для BRP Outlander MAX 800R EFI, DPS, XT & XT-P - 2013
-
№АртикулНазвание
-
116207342544 Hex. Cap Screw M4 X 25Hex. Cap Screw M4 X 25
-
120207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
121233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
122241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
123250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
124250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
126250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
127293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
128517124300 WasherWasher
-
129517302785 ClipClip
-
130715001820 RH Rear Fender Kit, YellowRH Rear Fender Kit, Yellow
-
130715001821 RH Rear Fender Kit, Yellow. Europe, Int'lRH Rear Fender Kit, Yellow. Europe, Int'l
-
130715001823 RH Rear Fender Kit, RedRH Rear Fender Kit, Red
-
130715001833 RH Rear Fender Kit, Red. Int'lRH Rear Fender Kit, Red. Int'l
-
130715001835 RH Rear Fender Kit, CamoRH Rear Fender Kit, Camo
-
130715001836 RH Rear Fender Kit, BlackRH Rear Fender Kit, Black
-
130715001837 RH Rear Fender Kit, Black. Europe, Int'lRH Rear Fender Kit, Black. Europe, Int'l
-
130715001819 RH Rear Fender Kit, MagnesiumRH Rear Fender Kit, Magnesium
-
131715001793 LH Rear Fender Kit, YellowLH Rear Fender Kit, Yellow
-
131715001795 LH Rear Fender Kit, RedLH Rear Fender Kit, Red
-
131715001804 LH Rear Fender Kit, CamoLH Rear Fender Kit, Camo
-
131715001806 LH Rear Fender Kit, MagnesiumLH Rear Fender Kit, Magnesium
-
131715001812 LH Rear Fender Kit, Yellow. EuropeLH Rear Fender Kit, Yellow. Europe
-
131715001802 LH Rear Fender Kit, Black. XTP ModelLH Rear Fender Kit, Black. XTP Model
-
131715001814 LH Rear Fender Kit, Black. XTP Model, EuropeLH Rear Fender Kit, Black. XTP Model, Europe
-
132705003521 RH Footboard, MaxRH Footboard, Max
-
133705003525 LH Footboard, MaxLH Footboard, Max
-
134705003914 LH Front MudguardLH Front Mudguard
-
135705003915 RH Front MudguardRH Front Mudguard
-
136705003918 LH Rear MudguardLH Rear Mudguard
-
137705003920 RH Rear MudguardRH Rear Mudguard
-
138705003921 LH Rear Mudguard, Part 2LH Rear Mudguard, Part 2
-
139705003922 RH Rear Mudguard, Part 2RH Rear Mudguard, Part 2
-
140705004347 LH Extension PanelLH Extension Panel
-
141705004348 RH Extension PanelRH Extension Panel
-
142715001854 Rear Center Panel KitRear Center Panel Kit
-
143705006299 Front Guard PlateFront Guard Plate
-
144705006300 Front Guard Plate. EuropeFront Guard Plate. Europe
-
147708000759 Rubber StopperRubber Stopper
-
148732610072 Push NutPush Nut
