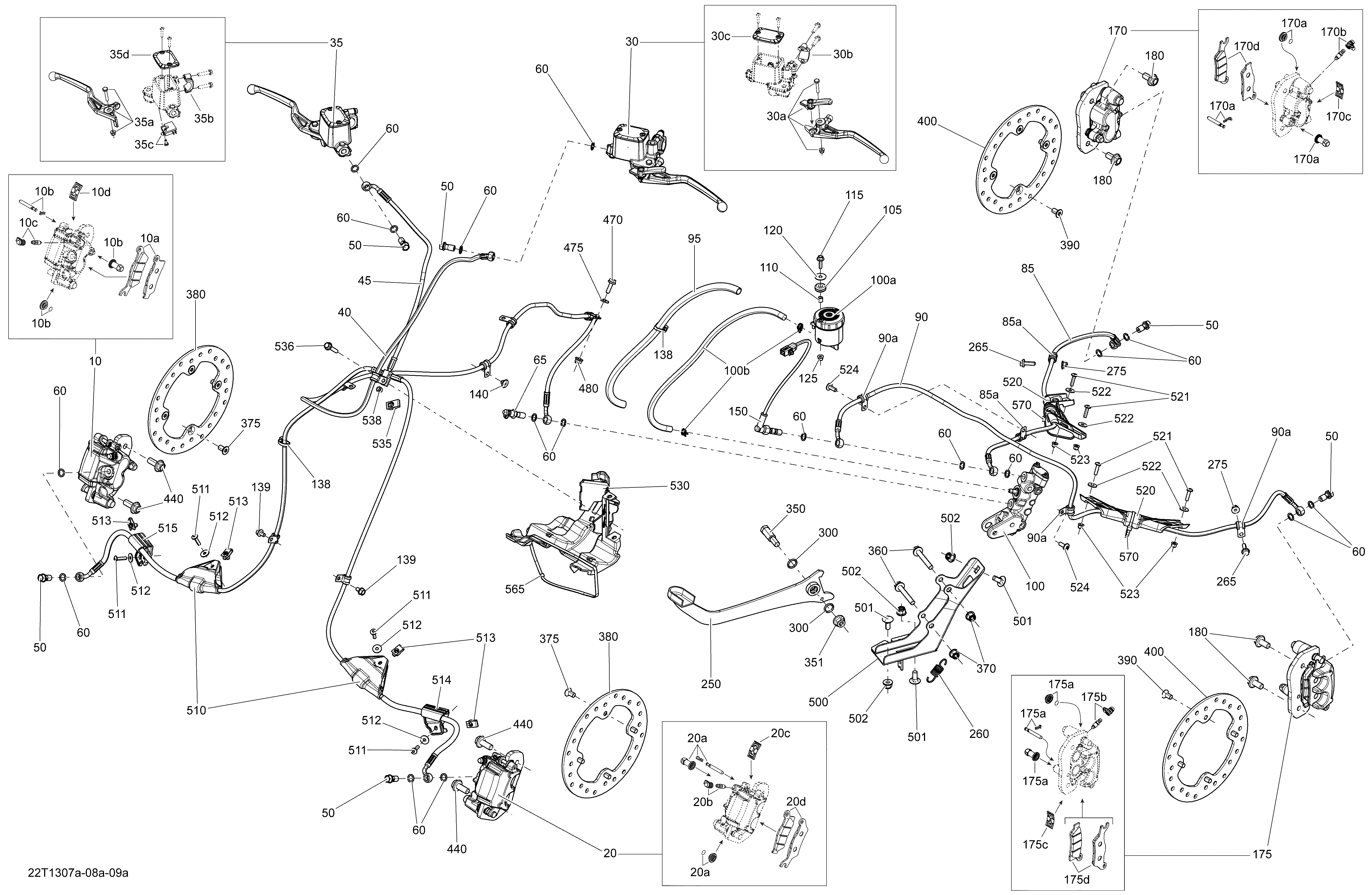

06- Brakes Except Europe для BRP Renegade 800R EFI STD & XXC - 2013
-
№АртикулНазвание
-
10705600861 RH Front Caliper Ass'y. Includes 10 to 10dRH Front Caliper Ass'y. Includes 10 to 10d
-
10a705601014 Brake Pad KitBrake Pad Kit
-
10b705601016 Pin SetPin Set
-
10c705601017 Bleeding ScrewBleeding Screw
-
10d705601018 SpringSpring
-
20705600862 LH Front Caliper Ass'y. Includes 20 to 20dLH Front Caliper Ass'y. Includes 20 to 20d
-
20a705601016 Pin SetPin Set
-
20b705601017 Bleeding ScrewBleeding Screw
-
20c705601018 SpringSpring
-
20d705601015 Brake Pad KitBrake Pad Kit
-
30705600912 LH Front Master Cylinder Ass'y. Includes 30 to 30cLH Front Master Cylinder Ass'y. Includes 30 to 30c
-
30a705601013 Lever SetLever Set
-
30b507032477 Clamp And Screw KitClamp And Screw Kit
-
30c219800096 Cap SetCap Set
-
35705600913 RH Front Master Cylinder Ass'y. Includes 35 to 35dRH Front Master Cylinder Ass'y. Includes 35 to 35d
-
35a705601011 Lever SetLever Set
-
35b507032477 Clamp And Screw KitClamp And Screw Kit
-
35c705601012 Kit SwitchKit Switch
-
35d219800096 Cap SetCap Set
-
40705601059 Brake LineBrake Line
-
45705601123 Brake LineBrake Line
-
50705600609 Banjo BoltBanjo Bolt
-
60705600310 Copper WasherCopper Washer
-
65705601051 Bleeding ScrewBleeding Screw
-
85705601002 Brake Line Ass'y. Includes 85 to 85aBrake Line Ass'y. Includes 85 to 85a
-
85a705600459 ClampClamp
-
90705600911 Brake Line Ass'y. Includes 90 to 90aBrake Line Ass'y. Includes 90 to 90a
-
90A705600459 ClampClamp
-
95415079900 Tubing 10 mmTubing 10 mm
-
100705600982 Rear Cylinder Master Ass'y. Includes 100 to 100bRear Cylinder Master Ass'y. Includes 100 to 100b
-
100a705601020 Oil TankOil Tank
-
100b705601019 Housing Oil HoseHousing Oil Hose
-
105414036300 GrommetGrommet
-
110293900112 BushingBushing
-
115207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
120224060201 Flat WasherFlat Washer
-
125233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
138414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
139210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
140390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705600997 Brake SwitchBrake Switch
-
170705600859 RH Rear Caliper Ass'y. Includes 170 to 170dRH Rear Caliper Ass'y. Includes 170 to 170d
-
170a705601016 Pin SetPin Set
-
170b705601017 Bleeding ScrewBleeding Screw
-
170c705601018 SpringSpring
-
170d705601014 Brake Pad KitBrake Pad Kit
-
175705600860 LH Rear Caliper Ass'y. Includes 175 to 175dLH Rear Caliper Ass'y. Includes 175 to 175d
-
175a705601016 Pin SetPin Set
-
175b705601017 Bleeding ScrewBleeding Screw
-
175c705601018 SpringSpring
-
175d705601015 Brake Pad KitBrake Pad Kit
-
180207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
250705601155 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
275233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
300293300144 O-RingO-Ring
-
350250000513 Shoulder Screw M10Shoulder Screw M10
-
351233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
360207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
370233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
375235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
380705600999 Disc BrakeDisc Brake
-
390235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
400705600999 Disc BrakeDisc Brake
-
440207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
470207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
475234062410 Flat Washer 6 mmFlat Washer 6 mm
-
480233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
500705202000 Bracket Brake PedalBracket Brake Pedal
-
501207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
510705600962 Front Hose ProtectorFront Hose Protector
-
511250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
512250200025 Washer M5Washer M5
-
513250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
514705601048 LH Hose BracketLH Hose Bracket
-
515705601049 RH Hose BracketRH Hose Bracket
-
520705600963 Rear Hose ProtectorRear Hose Protector
-
521250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
522250200025 Washer M5Washer M5
-
523233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
524250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
530705600983 Front Hose BracketFront Hose Bracket
-
535250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
536207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
538293900104 BushingBushing
-
565293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
570293750008 Tie-Rap 350 mmTie-Rap 350 mm
