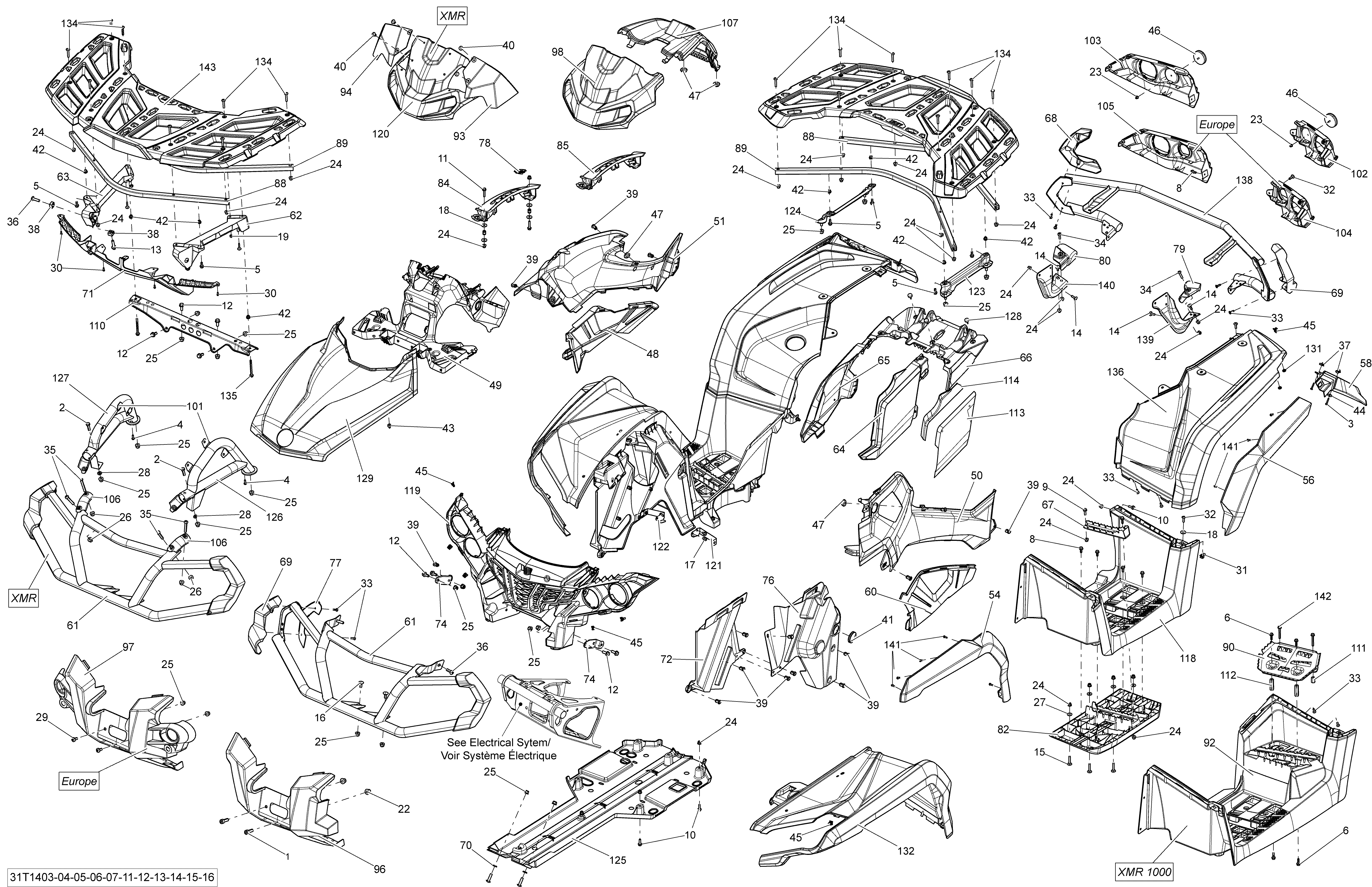

09- Body And Accessories _31T1403 для BRP Outlander 500EFI STD, DPS & XT - 2014
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
4250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
13207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
14207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
15207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
16207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
18224061201 Flat WasherFlat Washer
-
19232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
22233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
24233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27234062410 Flat Washer 6 mmFlat Washer 6 mm
-
29236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
30241140060 Screw K40 X 10Screw K40 X 10
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
34250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
36250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
38269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
41293250242 Rubber CoverRubber Cover
-
42293450274 InsertInsert
-
43293830005 Rubber BumperRubber Bumper
-
45517302785 ClipClip
-
46705002408 Red ReflectorRed Reflector
-
47705003264 GrommetGrommet
-
48705003444 Engine CoverEngine Cover
-
49715001552 Dash Support Kit. Model-North AmericaDash Support Kit. Model-North America
-
49715002245 Dash Support Kit. Model-Europe/InternationalDash Support Kit. Model-Europe/International
-
50705003446 Yellow LH Pannel. Model-YellowYellow LH Pannel. Model-Yellow
-
50705005237 Red LH Pannel. Model-RedRed LH Pannel. Model-Red
-
50705005238 Camo LH Pannel. Model-CamoCamo LH Pannel. Model-Camo
-
50705007530 Grey LH Lateral Panel. Model-GrayGrey LH Lateral Panel. Model-Gray
-
51705003447 Yellow RH Pannel. Model-YellowYellow RH Pannel. Model-Yellow
-
51705005241 Red RH Pannel. Model-RedRed RH Pannel. Model-Red
-
51705005242 Camo RH Pannel. Model-CamoCamo RH Pannel. Model-Camo
-
51705007529 Grey RH Lateral Panel. Model-GrayGrey RH Lateral Panel. Model-Gray
-
60705004147 LH Extension PannelLH Extension Pannel
-
61705005018 Front Bumper. Model-XTFront Bumper. Model-XT
-
62705006700 LH Support Ass'yLH Support Ass'y
-
63705006701 RH Support Ass'yRH Support Ass'y
-
68705004409 Cap (Front LH) (Rear RH). Model-XTCap (Front LH) (Rear RH). Model-XT
-
69705004410 Cap (Front RH) (Rear LH). Model-XTCap (Front RH) (Rear LH). Model-XT
-
70705004497 RingRing
-
71705004523 Lugage Rack MouldingLugage Rack Moulding
-
72705004558 RH Inner FenderRH Inner Fender
-
72705004557 LH Inner FenderLH Inner Fender
-
74705004565 Lower Fender SupportLower Fender Support
-
76705004587 RH Inner FenderRH Inner Fender
-
76705004588 LH Inner FenderLH Inner Fender
-
77705004987 Bracket Cover. Model-XTBracket Cover. Model-XT
-
78705005003 Shiftgate Trim. Model-EuropeShiftgate Trim. Model-Europe
-
79705005094 LH Bracket. Model-XTLH Bracket. Model-XT
-
80705005095 RH Bracket. Model-XTRH Bracket. Model-XT
-
82705005254 LH. FootboardLH. Footboard
-
82705005253 RH. FootboardRH. Footboard
-
84705005258 Indicator. Model-Nord America/InternationalIndicator. Model-Nord America/International
-
85705005259 Indicator. Model-EuropeIndicator. Model-Europe
-
88705005469 TubeTube
-
89705005470 TubeTube
-
96705006299 Front Guard Plate. Model-Nord America, InternationalFront Guard Plate. Model-Nord America, International
-
97705006300 Front Guard Plate. Model-EuropeFront Guard Plate. Model-Europe
-
98705006321 Gage Support. Model-STD, DPS, XTGage Support. Model-STD, DPS, XT
-
102705006643 LH Rear Facia. Model-Nord America, InternationalLH Rear Facia. Model-Nord America, International
-
103705006650 RH Rear Facia. Model-Nord America, InternationalRH Rear Facia. Model-Nord America, International
-
104705006651 LH Rear Facia. Model-EuropeLH Rear Facia. Model-Europe
-
105705006652 RH Rear Facia. Model-EuropeRH Rear Facia. Model-Europe
-
107715001765 Dash Kit. Model-Nord AmericaDash Kit. Model-Nord America
-
110705006812 Cargo Rack Center SupportCargo Rack Center Support
-
118705007040 LH FootrestLH Footrest
-
118705007039 RH FootrestRH Footrest
-
119705007041 Front FaciaFront Facia
-
123705007277 LH SupportLH Support
-
124705007278 RH SupportRH Support
-
125705007553 Central Skid PlateCentral Skid Plate
-
129715001541 Yellow Hood Kit. Model-Yellow Nord AmericaYellow Hood Kit. Model-Yellow Nord America
-
129715002234 Yellow Hood Kit. Model-Yellow InternationalYellow Hood Kit. Model-Yellow International
-
129715002234 Yellow Hood Kit. Model-Yellow EuropeYellow Hood Kit. Model-Yellow Europe
-
129715001543 Red Hood Kit. Model-Red Nord AmericaRed Hood Kit. Model-Red Nord America
-
129715002235 Red Hood Kit. Model-Red InternationalRed Hood Kit. Model-Red International
-
129715001547 Camo Hood Kit. Model-Camo Nord AmericaCamo Hood Kit. Model-Camo Nord America
-
129715002239 Grey Hood Kit. Model-Grey EuropeGrey Hood Kit. Model-Grey Europe
-
131732610072 Push NutPush Nut
-
132715002180 Yellow LH Front Fender Kit. Model-Yellow Nord AmericaYellow LH Front Fender Kit. Model-Yellow Nord America
-
132715002199 Yellow LH Front Fender Kit. Model-Yellow InternationalYellow LH Front Fender Kit. Model-Yellow International
-
132715002199 Yellow LH Front Fender Kit. Model-Yellow EuropeYellow LH Front Fender Kit. Model-Yellow Europe
-
132715002182 Red LH Front Fender Kit. Model-Red Nord AmericaRed LH Front Fender Kit. Model-Red Nord America
-
132715002203 Red LH Front Fender Kit. Model-Red InternationalRed LH Front Fender Kit. Model-Red International
-
132715002183 Camo LH Front Fender Kit. Model-Camo Nord AmericaCamo LH Front Fender Kit. Model-Camo Nord America
-
132715002204 Grey LH Front Fender Kit. Model-Grey EuropeGrey LH Front Fender Kit. Model-Grey Europe
-
132715001510 Yellow RH Front Fender Kit. Model-Yellow Nord AmericaYellow RH Front Fender Kit. Model-Yellow Nord America
-
132715002208 Yellow RH Front Fender Kit. Model-Yellow EuropeYellow RH Front Fender Kit. Model-Yellow Europe
-
132715002208 Yellow RH Front Fender Kit. Model-Yellow InternationalYellow RH Front Fender Kit. Model-Yellow International
-
132715001512 Red RH Front Fender Kit. Model-Red Nord AmericaRed RH Front Fender Kit. Model-Red Nord America
-
132715002206 Red RH Front Fender Kit. Model-Red InternationalRed RH Front Fender Kit. Model-Red International
-
132715001516 Camo RH Front Fender Kit. Model-Camo Nord AmericaCamo RH Front Fender Kit. Model-Camo Nord America
-
132715002211 Grey RH Front Fender Kit. Model-Grey EuropeGrey RH Front Fender Kit. Model-Grey Europe
-
134250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
135207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
136715001858 Yellow LH Rear Fender Kit. Model-Yellow Nord AmericaYellow LH Rear Fender Kit. Model-Yellow Nord America
-
136715002212 Yellow LH Rear Fender Kit. Model-Yellow EuropeYellow LH Rear Fender Kit. Model-Yellow Europe
-
136715002279 Yellow LH Rear Fender Kit. Model-Yellow InternationalYellow LH Rear Fender Kit. Model-Yellow International
-
136715001864 Red LH Rear Fender Kit. Model-Red Nord AmericaRed LH Rear Fender Kit. Model-Red Nord America
-
136715002219 Red LH Rear Fender Kit. Model-Red InternationalRed LH Rear Fender Kit. Model-Red International
-
136715001862 Camo LH Rear Fender Kit. Model-Camo Nord AmericaCamo LH Rear Fender Kit. Model-Camo Nord America
-
136715002283 Grey LH Rear Fender Kit. Model-Grey EuropeGrey LH Rear Fender Kit. Model-Grey Europe
-
136715001820 Yellow RH Rear Fender Kit. Model-Yellow Nord AmericaYellow RH Rear Fender Kit. Model-Yellow Nord America
-
136715002229 Yellow RH Rear Fender Kit. Model-Yellow EuropeYellow RH Rear Fender Kit. Model-Yellow Europe
-
136715002229 Yellow RH Rear Fender Kit. Model-Yellow InternationalYellow RH Rear Fender Kit. Model-Yellow International
-
136715001823 Red RH Rear Fender Kit. Model-Red Nord AmericaRed RH Rear Fender Kit. Model-Red Nord America
-
136715002228 Red RH Rear Fender Kit. Model-Red InternationalRed RH Rear Fender Kit. Model-Red International
-
136715001811 Camo RH Rear Fender Kit. Model-Camo Nord AmericaCamo RH Rear Fender Kit. Model-Camo Nord America
-
136715002233 Grey RH Rear Fender Kit. Model-Grey EuropeGrey RH Rear Fender Kit. Model-Grey Europe
-
138705005019 Black Bumper. Model-XTBlack Bumper. Model-XT
-
139705007896 LH Rear Bracket. Model-XTLH Rear Bracket. Model-XT
-
140705007897 RH Rear Bracket. Model-XTRH Rear Bracket. Model-XT
-
143715001852 Rack Kit. Model-Nord AmericaRack Kit. Model-Nord America
-
143715002240 Rack Kit. Model-InternationalRack Kit. Model-International
-
143715002240 Rack Kit. Model-EuropeRack Kit. Model-Europe
