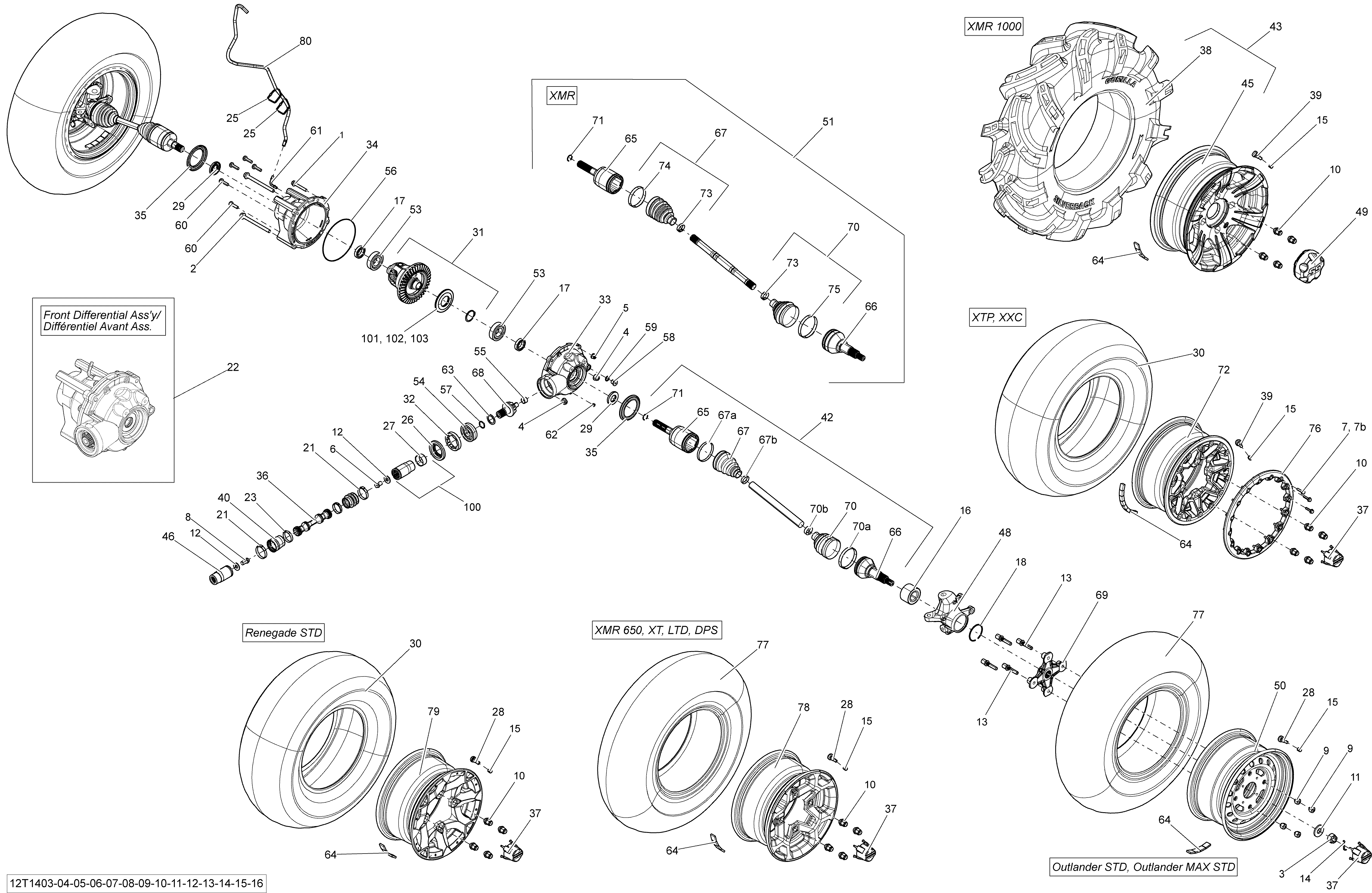

07- Drive System, Front для BRP Outlander 650EFI XMR - 2014
-
№АртикулНазвание
-
1207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
2230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
3250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
8250000540 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
10250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
11250200049 Spring WasherSpring Washer
-
12250200102 Flat Washer M12Flat Washer M12
-
13250300048 Wheel StudWheel Stud
-
14250400036 Cotter PinCotter Pin
-
15293000110 Valve CapValve Cap
-
16293350040 Cone BearingCone Bearing
-
17293350044 Ball BearingBall Bearing
-
18293370019 CirclipCirclip
-
21293650138 Oetiker Gear ClampOetiker Gear Clamp
-
22705401485 Front Differential Ass'yFront Differential Ass'y
-
23293650199 Oetiker ClampOetiker Clamp
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26705401481 Oil SealOil Seal
-
27705400036 Wear RingWear Ring
-
28705400193 Rim Valve With CapRim Valve With Cap
-
29705401486 Oil SealOil Seal
-
31705400822 DifferentialDifferential
-
32705400661 NutNut
-
33705400761 Front CoverFront Cover
-
34705400762 Front CoverFront Cover
-
35705400780 Wear SleeveWear Sleeve
-
36705400913 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
37705400928 Wheel CapWheel Cap
-
39705400193 Rim Valve With CapRim Valve With Cap
-
40705401093 Rubber BootRubber Boot
-
46703500678 Front Bushing Shaft kitFront Bushing Shaft kit
-
48705401290 LH KnuckleLH Knuckle
-
48705401291 RH KnuckleRH Knuckle
-
51705401383 RH Homocinetic JointRH Homocinetic Joint
-
51705401384 LH Homocinetic JointLH Homocinetic Joint
-
53705500259 Ball BearingBall Bearing
-
54705500260 Ball BearingBall Bearing
-
55705500261 Needle BearingNeedle Bearing
-
56705500265 SealSeal
-
57705500267 O-RingO-Ring
-
58705500504 Fill Level PlugFill Level Plug
-
59705500506 Copper WasherCopper Washer
-
60705500892 ScrewScrew
-
61705500893 Vent ValveVent Valve
-
62705500894 Drain PlugDrain Plug
-
63705501162 Pinion Gear ShimPinion Gear Shim
-
65705401357 RH Plunging JointRH Plunging Joint
-
65705401359 LH Plunging JointLH Plunging Joint
-
66705401407 CV JointCV Joint
-
67705401355 Boot Kit, Differential SideBoot Kit, Differential Side
-
68705501588 10 Teeth Pinion10 Teeth Pinion
-
69705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
70705401354 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
71705401349 Circlip JointCirclip Joint
-
73715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
74715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
75715900260 Oetiker Clamp, LargeOetiker Clamp, Large
-
77705401391 Front TireFront Tire
-
78705401420 Painted Front RimPainted Front Rim
-
80415080200 Hose, PolyurethaneHose, Polyurethane
-
100703500678 Front Bushing Shaft kitFront Bushing Shaft kit
-
101703500050 Differential Shim Spool KitDifferential Shim Spool Kit
-
102703500288 Differential Shim Spool KitDifferential Shim Spool Kit
-
103703500049 Pinion Shim KitPinion Shim Kit
