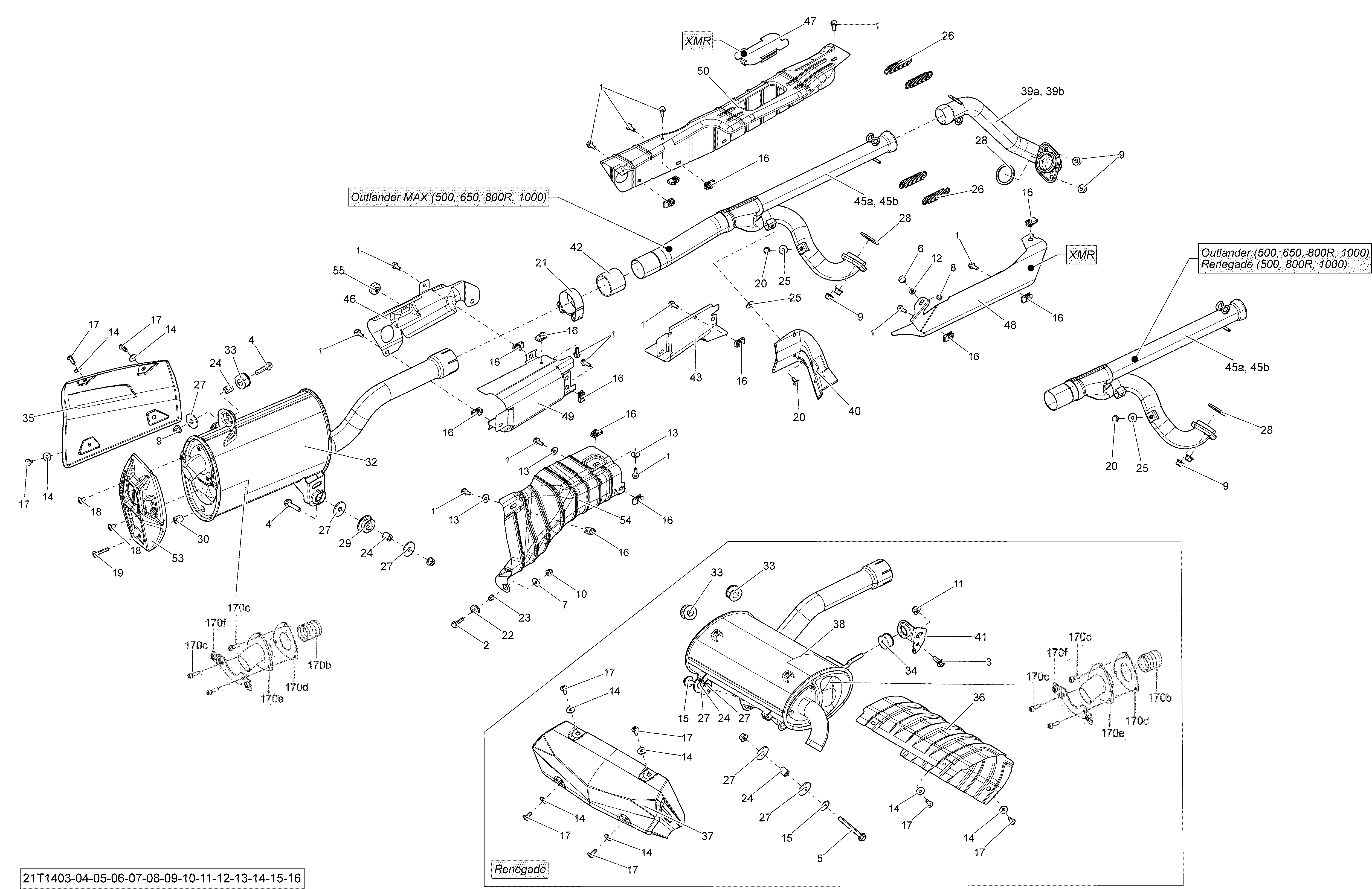

01- Exhaust System для BRP Outlander MAX 500EFI STD, DPS & XT - 2014
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207662534 Hex. Flanged ScrewHex. Flanged Screw
-
4207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
7224060201 Flat WasherFlat Washer
-
9233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13234062410 Flat Washer 6 mmFlat Washer 6 mm
-
14234062670 Flat WasherFlat Washer
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
18250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
19250000541 Torx Screw M6 X 35Torx Screw M6 X 35
-
20250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
21293650177 Norma Gear ClampNorma Gear Clamp
-
22293720053 GrommetGrommet
-
23293900105 BushingBushing
-
24293900106 BushingBushing
-
25250200082 Flat WasherFlat Washer
-
26415107100 SpringSpring
-
27503032900 WasherWasher
-
28707600317 GasketGasket
-
29707600448 RubberRubber
-
30707600524 BushingBushing
-
32707600629 Muffler. Except Outlander MAX EuropeMuffler. Except Outlander MAX Europe
-
32707600799 Muffler. Outlander MAX EuropeMuffler. Outlander MAX Europe
-
33707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
35707600710 Heat DeflectorHeat Deflector
-
39a707600764 Front Head PipeFront Head Pipe
-
39b75014500 Stainless Steel weding wireStainless Steel weding wire
-
40707600932 Pipe ProtectorPipe Protector
-
42707600955 Pipe GasketPipe Gasket
-
43707600983 Heat DeflectorHeat Deflector
-
45a707600985 Rear Head PipeRear Head Pipe
-
45b75014500 Stainless Steel weding wireStainless Steel weding wire
-
46707600994 Heat ShieldHeat Shield
-
49707600999 Heat ShieldHeat Shield
-
50707601045 Heat ShieldHeat Shield
-
53707601255 Heat Shield End CapHeat Shield End Cap
-
54703500816 Rear Heat DeflectorRear Heat Deflector
-
55708000506 Rubber StopperRubber Stopper
-
170b715900089 Spark ArrestorSpark Arrestor
-
170c205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
170d715900149 GasketGasket
-
170e715900143 Muffler End PieceMuffler End Piece
-
170f715900147 SupportSupport
