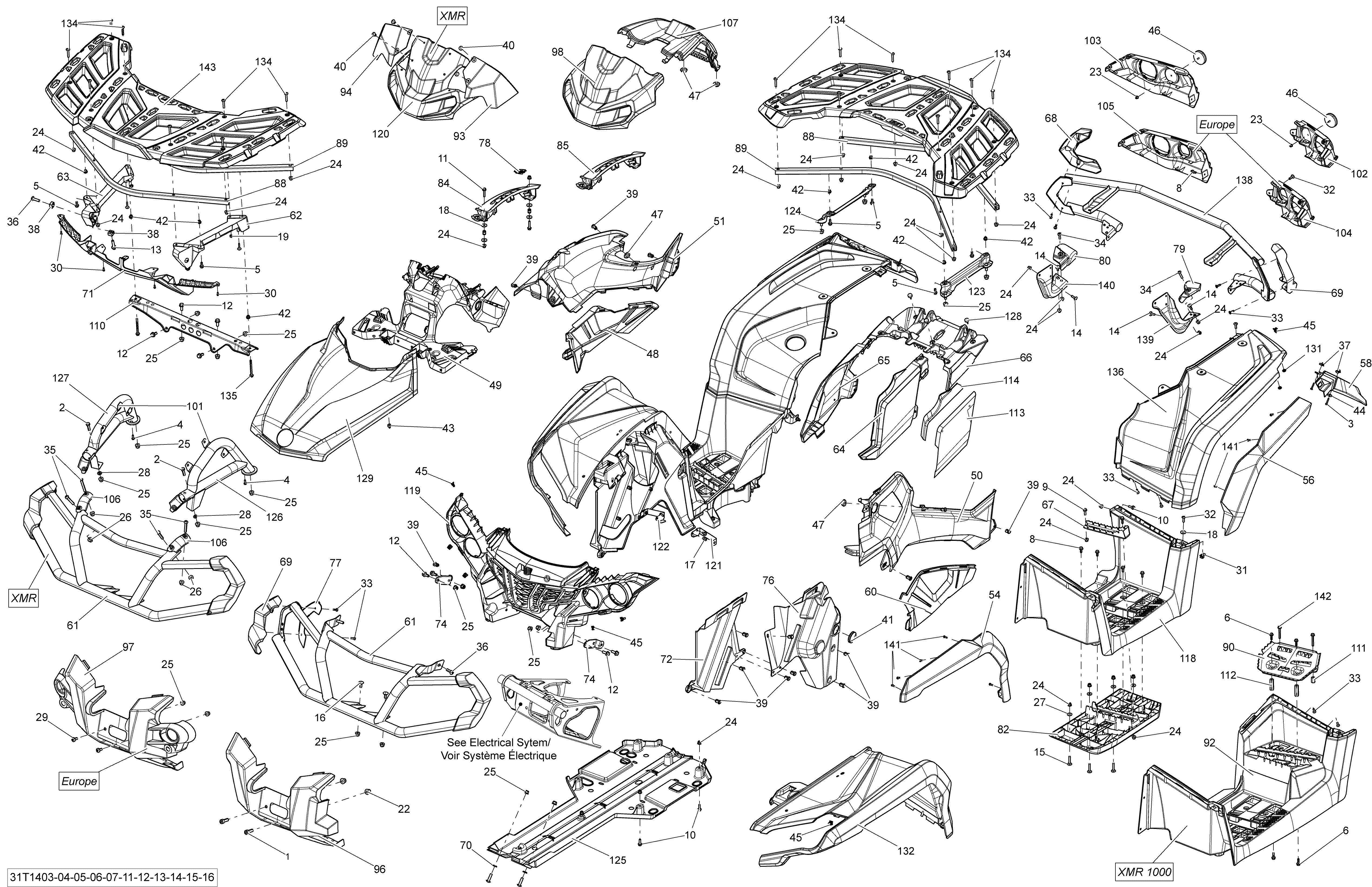

09- Body And Accessories для BRP Outlander MAX 650EFI STD, DPS, X, XT-P 2014 - 2014
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
4250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
13207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
14207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
15207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
16207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
18224061201 Flat WasherFlat Washer
-
19232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
22233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
24233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27234062410 Flat Washer 6 mmFlat Washer 6 mm
-
29236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
30241140060 Screw K40 X 10Screw K40 X 10
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
34250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
36250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
38269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
41293250242 Rubber CoverRubber Cover
-
42293450274 InsertInsert
-
43293830005 Rubber BumperRubber Bumper
-
45517302785 ClipClip
-
46705002408 Red ReflectorRed Reflector
-
47705003264 GrommetGrommet
-
48705003444 Engine CoverEngine Cover
-
49715001552 Dash Support Kit. Model-North AmericaDash Support Kit. Model-North America
-
49715002245 Dash Support Kit. Model-Europe/InternationalDash Support Kit. Model-Europe/International
-
50705003446 Yellow LH Pannel. Model-YellowYellow LH Pannel. Model-Yellow
-
50705003446 Yellow LH Pannel. Model-Black/YellowYellow LH Pannel. Model-Black/Yellow
-
50705005237 Red LH Pannel. Model-RedRed LH Pannel. Model-Red
-
50705005238 Camo LH Pannel. Model-CamoCamo LH Pannel. Model-Camo
-
50705005239 Magnesium LH Pannel. Model-MagnesiumMagnesium LH Pannel. Model-Magnesium
-
51705003447 Yellow RH Pannel. Model-YellowYellow RH Pannel. Model-Yellow
-
51705003447 Yellow RH Pannel. Model-Black/YellowYellow RH Pannel. Model-Black/Yellow
-
51705005241 Red RH Pannel. Model-RedRed RH Pannel. Model-Red
-
51705005242 Camo RH Pannel. Model-CamoCamo RH Pannel. Model-Camo
-
51705005243 Magnesium RH Pannel. Model-MagnesiumMagnesium RH Pannel. Model-Magnesium
-
60705004147 LH Extension PannelLH Extension Pannel
-
61705005018 Front Bumper. Model-XT, XTPFront Bumper. Model-XT, XTP
-
62705006700 LH Support Ass'yLH Support Ass'y
-
63705006701 RH Support Ass'yRH Support Ass'y
-
64715001897 LH Extension PanelLH Extension Panel
-
65705004348 RH Extension PanelRH Extension Panel
-
66715001854 Rear Center Panel KitRear Center Panel Kit
-
68705004409 Cap (Front LH) (Rear RH). Model-XT, XTPCap (Front LH) (Rear RH). Model-XT, XTP
-
69705004410 Cap (Front RH) (Rear LH). Model-XT, XTPCap (Front RH) (Rear LH). Model-XT, XTP
-
70705004497 RingRing
-
71705004523 Lugage Rack MouldingLugage Rack Moulding
-
72705004558 RH Inner FenderRH Inner Fender
-
72705004557 LH Inner FenderLH Inner Fender
-
74705004565 Lower Fender SupportLower Fender Support
-
76705004587 RH Inner FenderRH Inner Fender
-
76705004588 LH Inner FenderLH Inner Fender
-
77705004987 Bracket Cover. Model-XT, XTPBracket Cover. Model-XT, XTP
-
78705005003 Shiftgate Trim. Model-EuropeShiftgate Trim. Model-Europe
-
79705005094 LH BracketLH Bracket
-
80705005095 RH BracketRH Bracket
-
82705005254 LH. FootboardLH. Footboard
-
82705005253 RH. FootboardRH. Footboard
-
84705005258 Indicator. Model-Nord America/InternationalIndicator. Model-Nord America/International
-
85705005259 Indicator. Model-EuropeIndicator. Model-Europe
-
88705005469 TubeTube
-
89705005470 TubeTube
-
96705006299 Front Guard Plate. Model-Nord America/InternationalFront Guard Plate. Model-Nord America/International
-
97705006300 Front Guard Plate. Model-EuropeFront Guard Plate. Model-Europe
-
98705006321 Gage Support. Model-STD, DPS, XTGage Support. Model-STD, DPS, XT
-
98705006322 Gage Support. Model-XTPGage Support. Model-XTP
-
102705006643 LH Rear Facia. Model-Nord America/InternationalLH Rear Facia. Model-Nord America/International
-
103705006650 RH Rear Facia. Model-Nord America/InternationalRH Rear Facia. Model-Nord America/International
-
104705006651 LH Rear Facia. Model-EuropeLH Rear Facia. Model-Europe
-
105705006652 RH Rear Facia. Model-EuropeRH Rear Facia. Model-Europe
-
107715001765 Dash Kit. Model-Nord AmericaDash Kit. Model-Nord America
-
110705006812 Cargo Rack Center SupportCargo Rack Center Support
-
113705006870 Heat ShieldHeat Shield
-
114705006871 Heat ShieldHeat Shield
-
118705003525 LH Footboard, MaxLH Footboard, Max
-
118705003521 RH Footboard, MaxRH Footboard, Max
-
119705007041 Front FaciaFront Facia
-
123705007277 LH SupportLH Support
-
124705007278 RH SupportRH Support
-
125705007553 Central Skid PlateCentral Skid Plate
-
128708000759 Rubber StopperRubber Stopper
-
129715001543 Red Hood Kit. Model-Red Nord AmericaRed Hood Kit. Model-Red Nord America
-
129715002235 Red Hood Kit. Model-Red InternationalRed Hood Kit. Model-Red International
-
129715001541 Yellow Hood Kit. Model-Yellow Nord AmericaYellow Hood Kit. Model-Yellow Nord America
-
129715002234 Yellow Hood Kit. Model-Yellow InternationalYellow Hood Kit. Model-Yellow International
-
129715002234 Yellow Hood Kit. Model-XTP EuropeYellow Hood Kit. Model-XTP Europe
-
129715001549 Magnesium Hood Kit. Model-Magnesium Nord AmericaMagnesium Hood Kit. Model-Magnesium Nord America
-
129715002237 Grey Hood Kit. Model-Gray Nord AmericaGrey Hood Kit. Model-Gray Nord America
-
129715002298 Camo Hood Kit. Model-XT Camo InternationalCamo Hood Kit. Model-XT Camo International
-
129715001547 Camo Hood Kit. Model-XT Camo Nord AmericaCamo Hood Kit. Model-XT Camo Nord America
-
131732610072 Push NutPush Nut
-
132715002246 Red LH Front Fender Kit. Model-Red Nord AmericaRed LH Front Fender Kit. Model-Red Nord America
-
132715002247 Red LH Front Fender Kit. Model-Red InternationalRed LH Front Fender Kit. Model-Red International
-
132715002248 Yellow LH Front Fender Kit. Model-Yellow Nord AmericaYellow LH Front Fender Kit. Model-Yellow Nord America
-
132715002249 Yellow LH Front Fender Kit. Model-Yellow InternationalYellow LH Front Fender Kit. Model-Yellow International
-
132715002255 Black LH Front Fender Kit. Model-XTP EuropeBlack LH Front Fender Kit. Model-XTP Europe
-
132715002252 Magnesium LH Front Fender Kit. Model-Magnesium Nord AmericaMagnesium LH Front Fender Kit. Model-Magnesium Nord America
-
132715002262 Grey LH Front Fender Kit. Model-Gray Nord AmericaGrey LH Front Fender Kit. Model-Gray Nord America
-
132715002261 Camo LH Front Fender Kit. Model-XT Camo InternationalCamo LH Front Fender Kit. Model-XT Camo International
-
132715002260 Camo LH Front Fender Kit. Model-XT Camo Nord AmericaCamo LH Front Fender Kit. Model-XT Camo Nord America
-
132715001781 Red RH Front Fender Kit. Model-Red Nord AmericaRed RH Front Fender Kit. Model-Red Nord America
-
132715002206 Red RH Front Fender Kit. Model-Red InternationalRed RH Front Fender Kit. Model-Red International
-
132715001791 Yellow RH Front Fender Kit. Model-Yellow Nord AmericaYellow RH Front Fender Kit. Model-Yellow Nord America
-
132715002208 Yellow RH Front Fender Kit. Model-Yellow InternationalYellow RH Front Fender Kit. Model-Yellow International
-
132715002207 Black RH Front Fender Kit. Model-XTP EuropeBlack RH Front Fender Kit. Model-XTP Europe
-
132715001785 Magnesium RH Front Fender Kit. Model-Magnesium Nord AmericaMagnesium RH Front Fender Kit. Model-Magnesium Nord America
-
132715002267 Grey RH Front Fender Kit. Model-Gray Nord AmericaGrey RH Front Fender Kit. Model-Gray Nord America
-
132715002266 Camo RH Front Fender Kit. Model-XT Camo InternationalCamo RH Front Fender Kit. Model-XT Camo International
-
132715001783 Camo RH Front Fender Kit. Model-XT Camo Nord AmericaCamo RH Front Fender Kit. Model-XT Camo Nord America
-
134250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
135207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
136715002270 Red LH Rear Fender Kit. Model-Red Nord AmericaRed LH Rear Fender Kit. Model-Red Nord America
-
136715002271 Red LH Rear Fender Kit. Model-Red InternationalRed LH Rear Fender Kit. Model-Red International
-
136715001793 Yellow LH Rear Fender Kit. Model-Yellow Nord AmericaYellow LH Rear Fender Kit. Model-Yellow Nord America
-
136715002284 Yellow LH Rear Fender Kit. Model-Yellow InternationalYellow LH Rear Fender Kit. Model-Yellow International
-
136715002276 Black LH Rear Fender Kit. Model-XTP EuropeBlack LH Rear Fender Kit. Model-XTP Europe
-
136715001806 Magnesium LH Rear Fender Kit. Model-Magnesium Nord AmericaMagnesium LH Rear Fender Kit. Model-Magnesium Nord America
-
136715002290 Grey LH Rear Fender Kit. Model-Gray Nord AmericaGrey LH Rear Fender Kit. Model-Gray Nord America
-
136715002278 Camo LH Rear Fender Kit. Model-XT Camo InternationalCamo LH Rear Fender Kit. Model-XT Camo International
-
136715001804 Camo LH Rear Fender Kit. Model-XT Camo Nord AmericaCamo LH Rear Fender Kit. Model-XT Camo Nord America
-
136715001823 Red RH Rear Fender Kit. Model-Red Nord AmericaRed RH Rear Fender Kit. Model-Red Nord America
-
136715002228 Red RH Rear Fender Kit. Model-Red InternationalRed RH Rear Fender Kit. Model-Red International
-
136715001820 Yellow RH Rear Fender Kit. Model-Yellow Nord AmericaYellow RH Rear Fender Kit. Model-Yellow Nord America
-
136715002229 Yellow RH Rear Fender Kit. Model-Yellow InternationalYellow RH Rear Fender Kit. Model-Yellow International
-
136715002230 Black RH Rear Fender Kit. Model-XTP EuropeBlack RH Rear Fender Kit. Model-XTP Europe
-
136715001819 Magnesium RH Rear Fender Kit. Model-Magnesium Nord AmericaMagnesium RH Rear Fender Kit. Model-Magnesium Nord America
-
136715002232 Grey RH Rear Fender Kit. Model-Gray Nord AmericaGrey RH Rear Fender Kit. Model-Gray Nord America
-
136715002295 Camo RH Rear Fender Kit. Model-XT Camo InternationalCamo RH Rear Fender Kit. Model-XT Camo International
-
136715001811 Camo RH Rear Fender Kit. Model-XT Camo Nord AmericaCamo RH Rear Fender Kit. Model-XT Camo Nord America
-
138705005019 Black Bumper. Model-XT, XTPBlack Bumper. Model-XT, XTP
-
139705007896 LH Rear Bracket. Model-XT, XTPLH Rear Bracket. Model-XT, XTP
-
140705007897 RH Rear Bracket. Model-XT, XTPRH Rear Bracket. Model-XT, XTP
-
143715001852 Rack Kit. Model-Nord AmericaRack Kit. Model-Nord America
-
143715002240 Rack Kit. Model-InternationalRack Kit. Model-International
-
143715002240 Rack Kit. Model-EuropeRack Kit. Model-Europe
