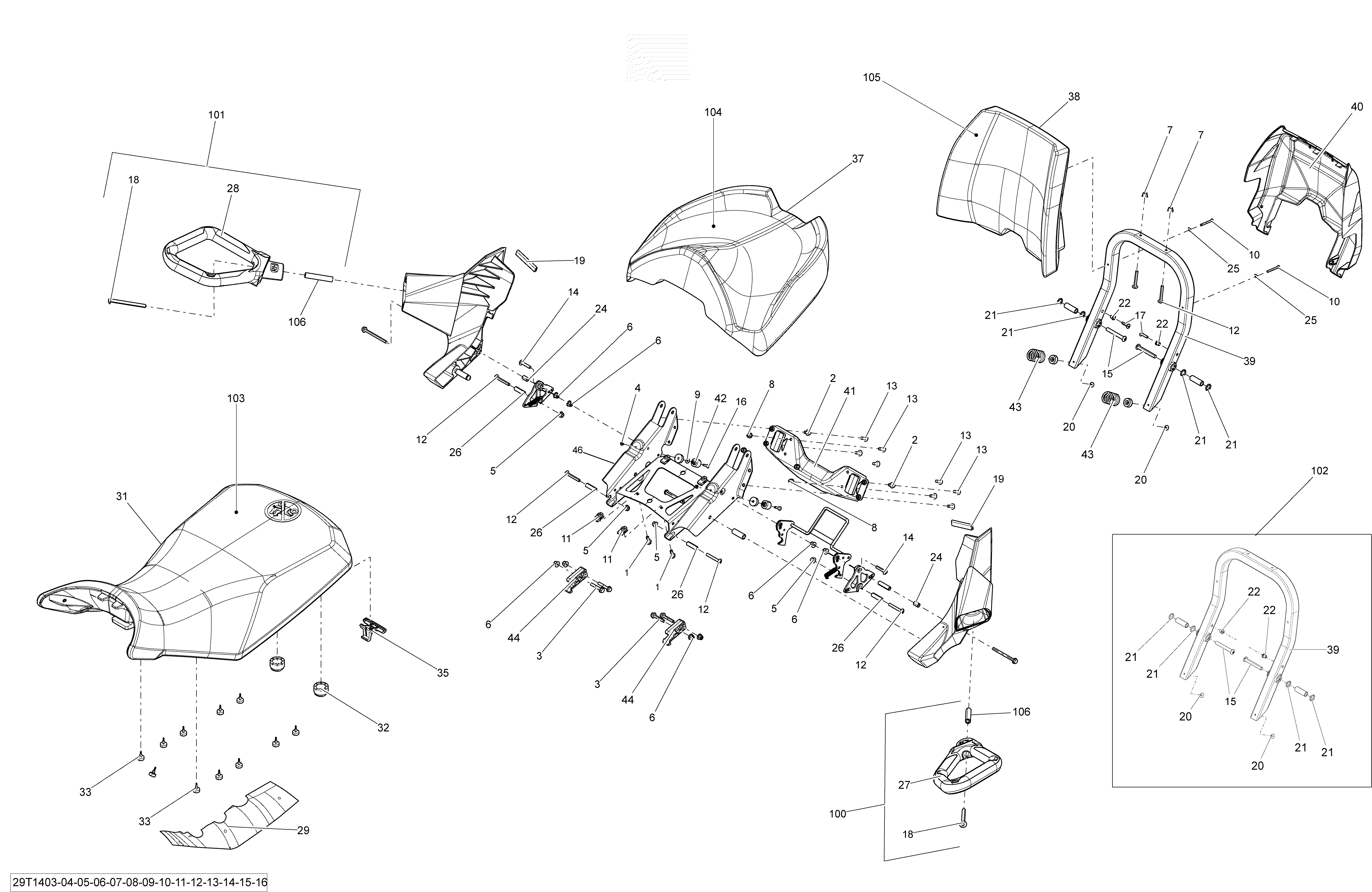

09- Seat для BRP Renegade 500EFI STD - 2014
-
№АртикулНазвание
-
29705005762 Heat ShieldHeat Shield
-
31715500356 Seat Ass'y. STDSeat Ass'y. STD
-
31715500357 Seat Ass'y. XXCSeat Ass'y. XXC
-
32708000760 Bumper RubberBumper Rubber
-
35708000914 LatchLatch
-
103708000887 Seat Cover. STDSeat Cover. STD
-
103708000886 Seat Cover. XXCSeat Cover. XXC
