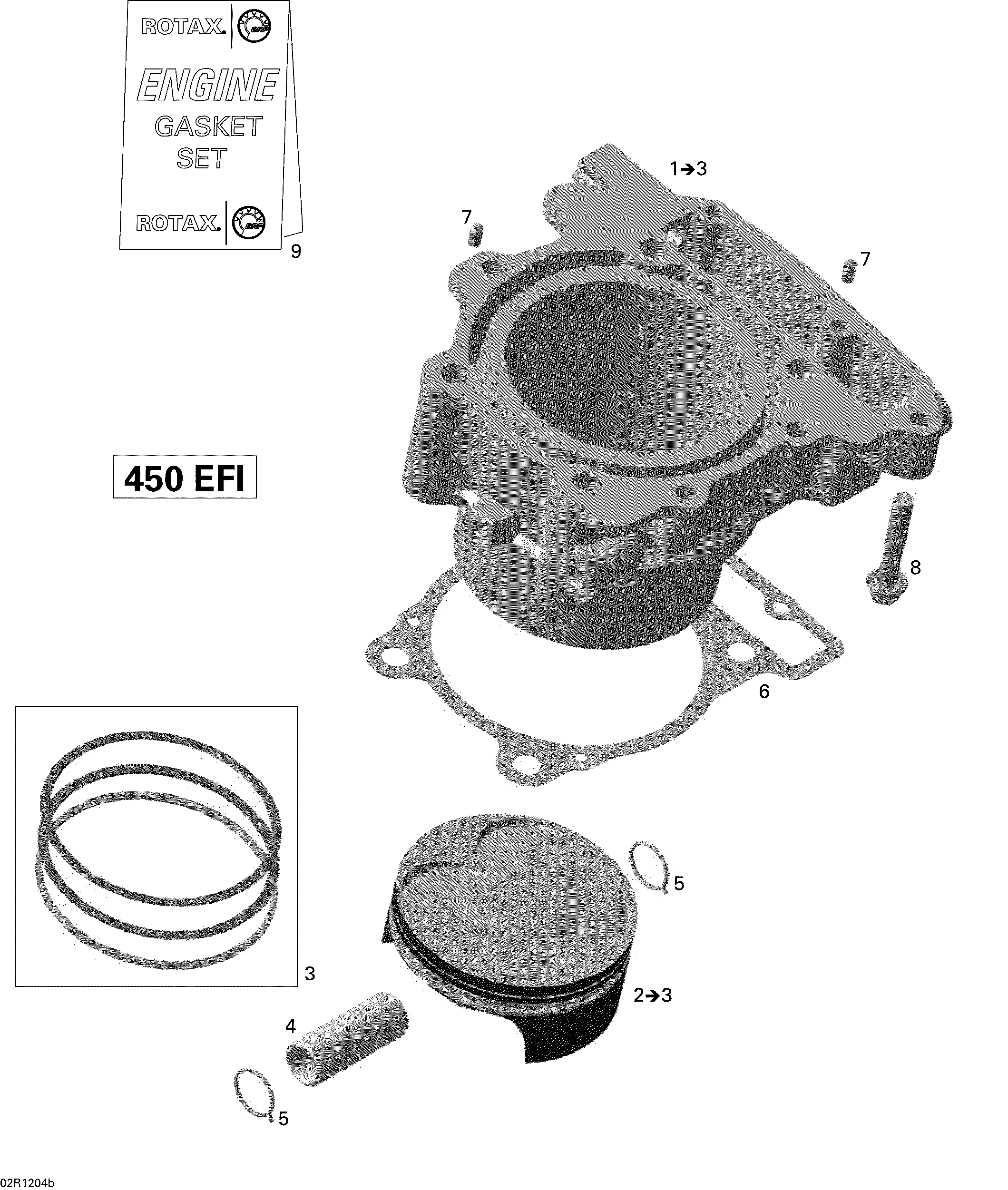

01- Cylinder And Piston для BRP DS 450EFI STD - 2015
-
№АртикулНазвание
-
1420623826 Cylinder And Piston Ass'y. Includes 1 to 3Cylinder And Piston Ass'y. Includes 1 to 3
-
2420685132 Piston Ass'y, 96.95 mm. Includes 2 to 3Piston Ass'y, 96.95 mm. Includes 2 to 3
-
2420685133 Piston Ass'y, 96.96 mm. Includes 2 to 3Piston Ass'y, 96.96 mm. Includes 2 to 3
-
3420685134 Piston Ring SetPiston Ring Set
-
4420216276 Piston PinPiston Pin
-
5420845107 Piston CirclipPiston Circlip
-
6420650390 Cylinder GasketCylinder Gasket
-
7420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
8420940637 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
9420685380 Gasket Set, EngineGasket Set, Engine
