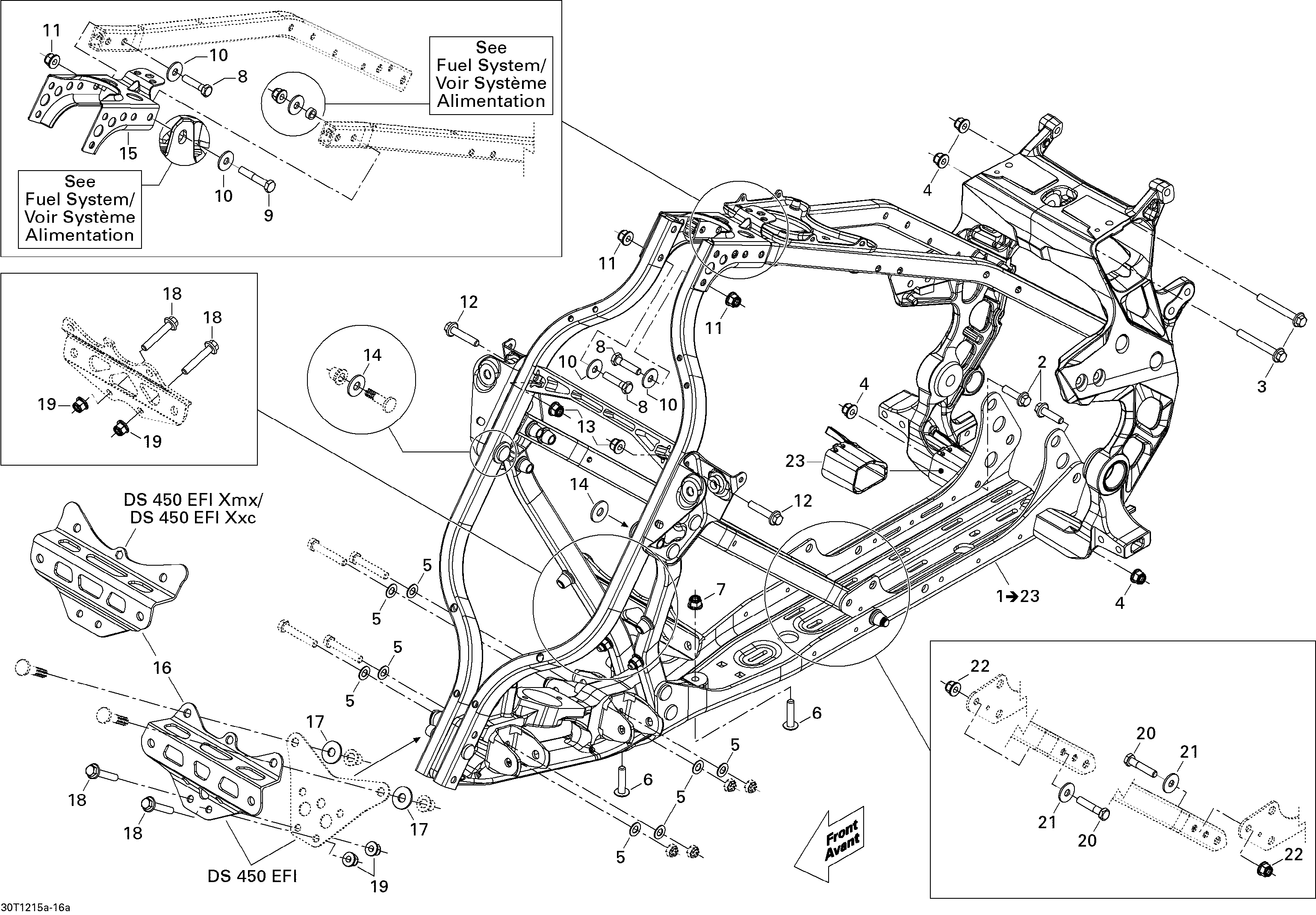

09- Frame, System 1 для BRP DS 450EFI Xxc, Xmx - 2015
-
№АртикулНазвание
-
1705202639 Frame Ass'y. Xmx, Includes 1 to 23Frame Ass'y. Xmx, Includes 1 to 23
-
1705202908 Frame Ass'y. Xxc, Includes 1 to 23Frame Ass'y. Xxc, Includes 1 to 23
-
2207683034 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3207686534 Hex. Flanged Screw M8 x 65Hex. Flanged Screw M8 x 65
-
4233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5506151252 WasherWasher
-
6250000316 Torx Truss Screw M8 X 35Torx Truss Screw M8 X 35
-
7233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
9207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
10234082410 Flat Washer 8 mmFlat Washer 8 mm
-
11233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
13233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14506151251 WasherWasher
-
15705201072 PlatePlate
-
16705202172 Front Braket A-ArmFront Braket A-Arm
-
17506151251 WasherWasher
-
18207684534 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
19233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20207084044 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
21234082410 Flat Washer 8 mmFlat Washer 8 mm
-
22233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23705500931 Skid PlateSkid Plate
