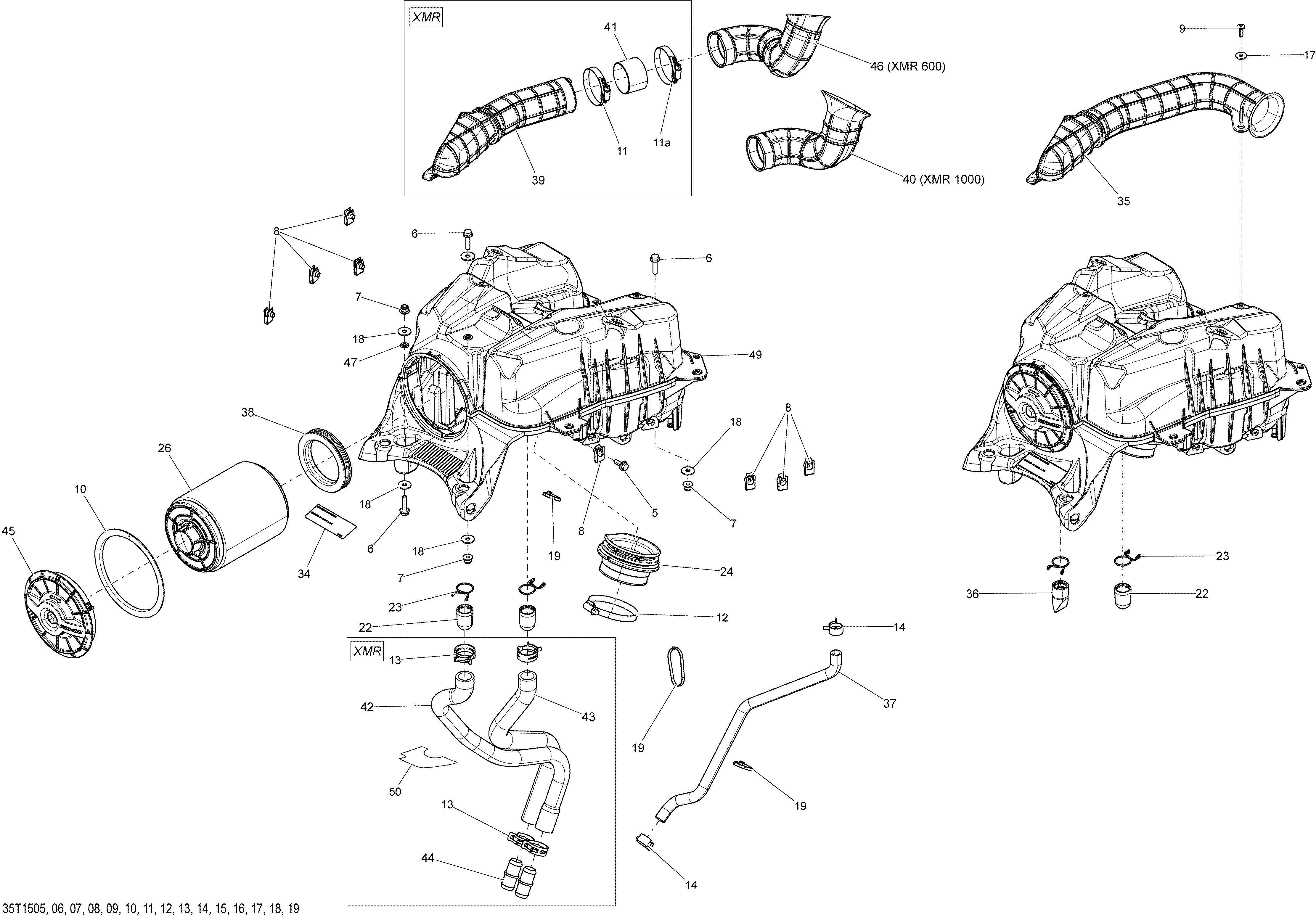

02- Air Intake _35T1510 для BRP Outlander 1000 EFI - 2015
-
№АртикулНазвание
-
5207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
9250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
10293300175 GasketGasket
-
12293650091 Norma ClampNorma Clamp
-
14293650110 Norma ClampNorma Clamp
-
17391301600 WasherWasher
-
18250200082 Flat WasherFlat Washer
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
22707800080 Drain TubeDrain Tube
-
23707800278 Retainer ClipRetainer Clip
-
24707800333 Intake AdaptorIntake Adaptor
-
26707800371 Air FilterAir Filter
-
34707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
35707800375 Air Intake HoseAir Intake Hose
-
36707800404 Drain TubeDrain Tube
-
37707800453 Vent HoseVent Hose
-
38707800470 Air Filter AdaptorAir Filter Adaptor
-
45715002174 Intake Silencer Cap Ass'yIntake Silencer Cap Ass'y
-
47732610072 Push NutPush Nut
-
49707800599 Welded Air BoxWelded Air Box
