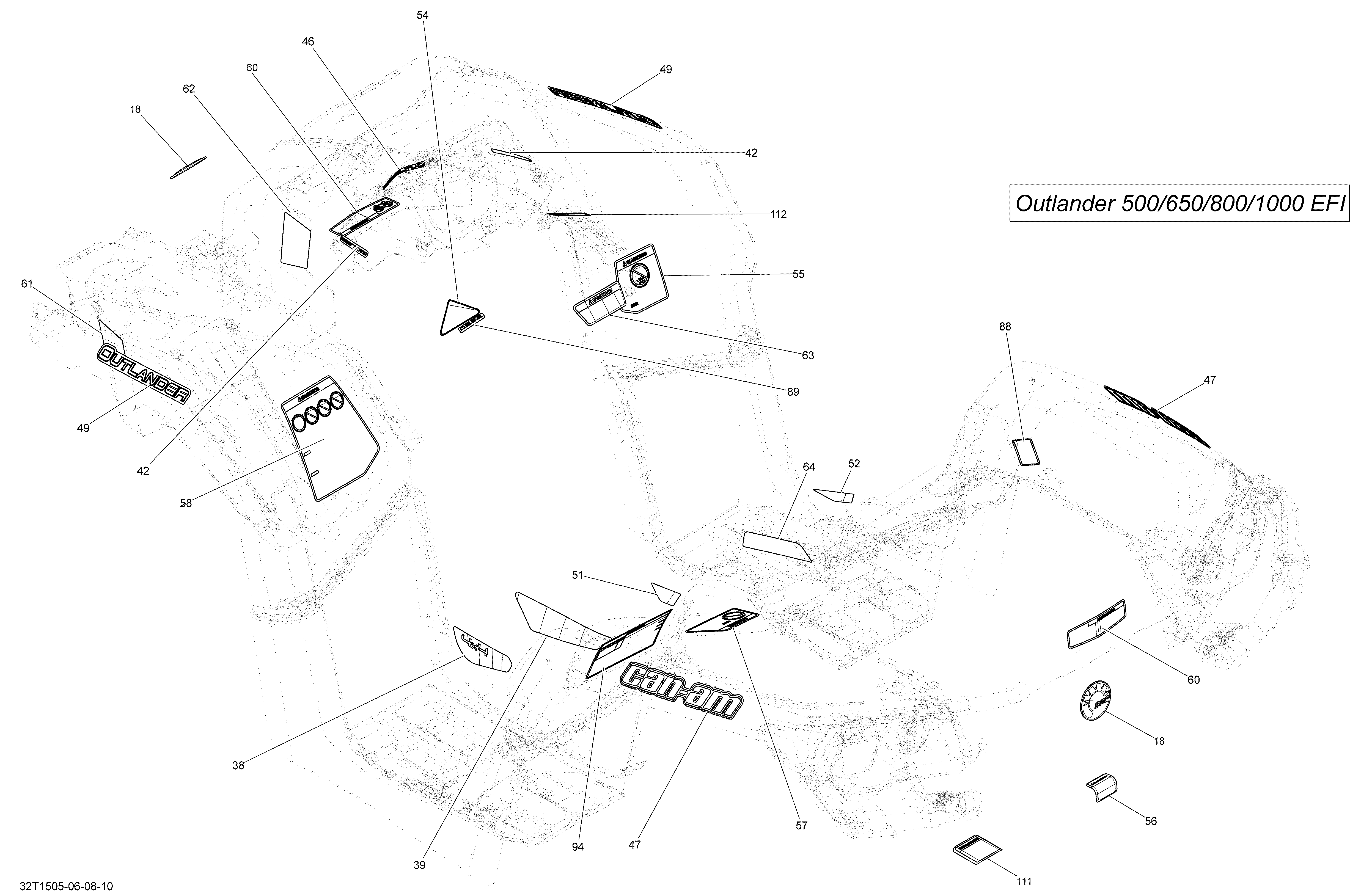

09- Decals _32T1505 для BRP Outlander 500 EFI - 2015
-
№АртикулНазвание
-
18704904613 BRP Logo, 68mmBRP Logo, 68mm
-
38704902083 Decal, 4x4 Visco-LokDecal, 4x4 Visco-Lok
-
39704902098 LH Engine Cover DecalLH Engine Cover Decal
-
42704902721 Decal, SST G2Decal, SST G2
-
46704902728 Decal, Outlander. Package-DPS,Model-YellowDecal, Outlander. Package-DPS,Model-Yellow
-
46704902729 Decal, Outlander XT. Model-CAMODecal, Outlander XT. Model-CAMO
-
46704902729 Decal, Outlander XT. Package-XT, Model-YellowDecal, Outlander XT. Package-XT, Model-Yellow
-
46704904309 Decal, Outlander. Package-DPS,Model-GrayDecal, Outlander. Package-DPS,Model-Gray
-
47704904427 CAN-AM Decal. Model-YellowCAN-AM Decal. Model-Yellow
-
47704904429 CAN-AM Decal. Model-CAMOCAN-AM Decal. Model-CAMO
-
49704904430 Front Side Decal, Outlander. Model-YellowFront Side Decal, Outlander. Model-Yellow
-
49704904431 Front Side Decal, Outlander. Model-CAMOFront Side Decal, Outlander. Model-CAMO
-
51704902755 LH Decal, XTLH Decal, XT
-
52704902756 RH Decal, XTRH Decal, XT
-
54704902774 Decal, Public RoadsDecal, Public Roads
-
55704902775 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
56704902777 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
57704902785 Warning Decal, PassengerWarning Decal, Passenger
-
58704902787 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
60704902791 Warning Decal, LoadWarning Decal, Load
-
61704902865 LH Front Side ReflectorLH Front Side Reflector
-
62704902866 RH Front Side ReflectorRH Front Side Reflector
-
63704902941 Warning Decal, PerformanceWarning Decal, Performance
-
64704903040 RH Engine Cover DecalRH Engine Cover Decal
-
88704903310 Warning Decal, General Use ModelWarning Decal, General Use Model
-
89704903497 Decal, D.E.S.S.Decal, D.E.S.S.
-
94704903236 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
111704904438 Warning Decal, Loading/TowingWarning Decal, Loading/Towing
-
112704904383 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
