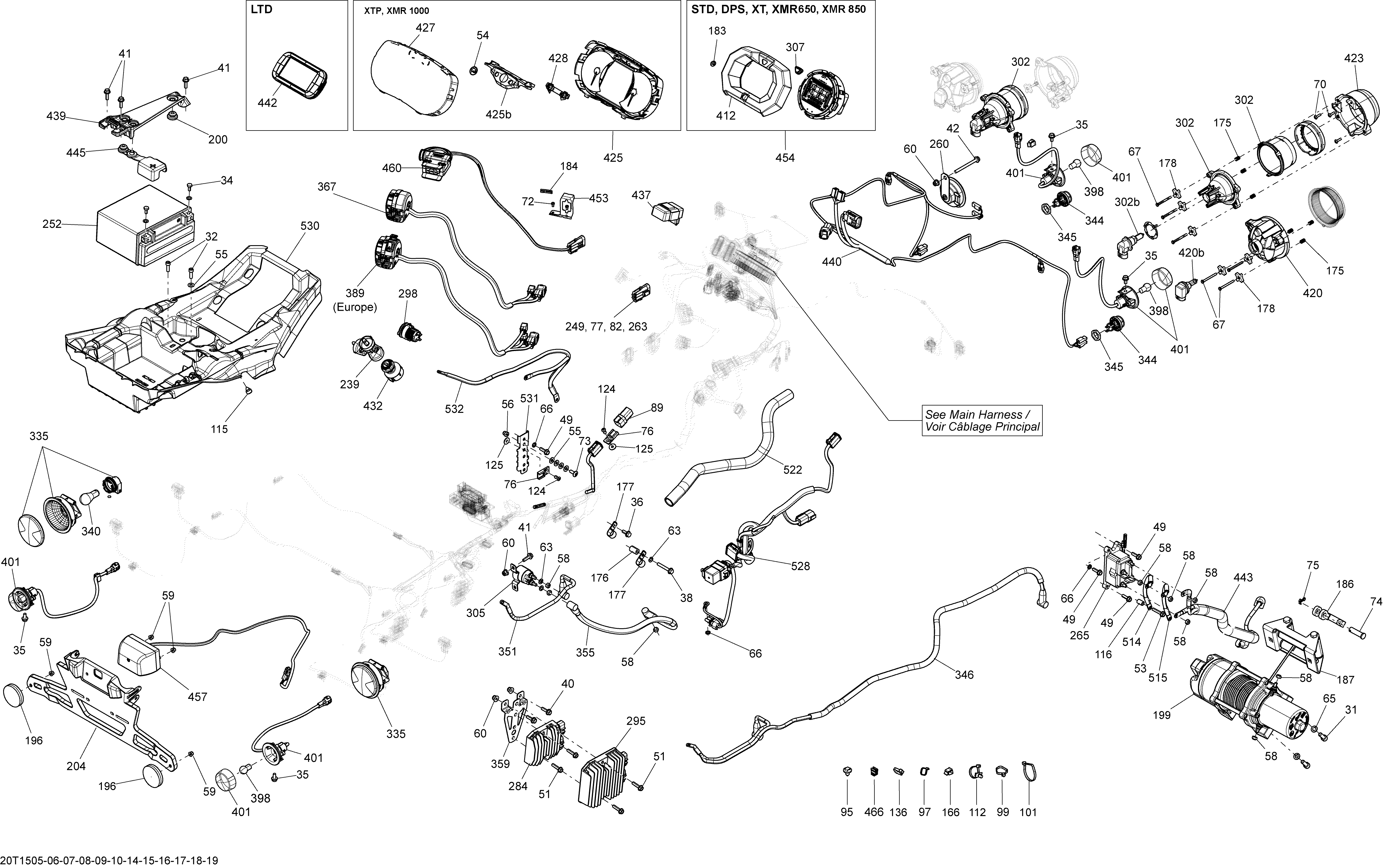

10- Electrical System _20T1507 для BRP Outlander 650 EFI Xmr - 2015
-
№АртикулНазвание
-
31205082044 Socket Head Screw M8 X 20. Model-InternationalSocket Head Screw M8 X 20. Model-International
-
32205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
34250000282 Battery Bolt Kit. Model-North AmericaBattery Bolt Kit. Model-North America
-
38207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
40207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
41207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
49210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
51210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
53210264040 Hex Flanged Screw M6 X 40. Model-InternationalHex Flanged Screw M6 X 40. Model-International
-
55224061121 Flat WasherFlat Washer
-
56232361493 Domed Nut M6Domed Nut M6
-
58232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
60233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
63234161601 Lock Washer Helical M6Lock Washer Helical M6
-
65234181401 Lock Washer 8 mm. Model-InternationalLock Washer 8 mm. Model-International
-
66234461608 External Serrated Lock Washer 6 mm. Model-InternationalExternal Serrated Lock Washer 6 mm. Model-International
-
67250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
70250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
72250000153 Hex. Cap Screw 6-32 X 1/4''. Model-InternationalHex. Cap Screw 6-32 X 1/4''. Model-International
-
73250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
74250400021 Clevis Pin. Model-InternationalClevis Pin. Model-International
-
75250400022 Cotter Pin. Model-InternationalCotter Pin. Model-International
-
76270000141 ClipClip
-
77278000216 Wire Seal. Model- North AmericaWire Seal. Model- North America
-
82278000281 Female Terminal Housing, 3 Circuits. Model- North AmericaFemale Terminal Housing, 3 Circuits. Model- North America
-
89710003006 HousingHousing
-
95293730040 Mount DartMount Dart
-
97293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
99293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
101293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
112293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
115293830005 Rubber BumperRubber Bumper
-
116293900078 Sleeve. Model-InternationalSleeve. Model-International
-
124390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
125391301600 WasherWasher
-
136414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
166414227300 ClipClip
-
175517168600 SpringSpring
-
176517203200 SpacerSpacer
-
177518321570 Open ClampOpen Clamp
-
178572106600 HandleHandle
-
183704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
186705002329 Hook. Model-InternationalHook. Model-International
-
187715000011 Winch Roller. Model-InternationalWinch Roller. Model-International
-
199705008546 Winch. Model-InternationalWinch. Model-International
-
200705003666 Rubber GrommetRubber Grommet
-
239710000817 Black-Electronic KeyBlack-Electronic Key
-
239710002183 Grey-Electronic KeyGrey-Electronic Key
-
249710000917 Connector Ass'y. Model- North AmericaConnector Ass'y. Model- North America
-
252410301203 Lead Battery 18 AmperesLead Battery 18 Amperes
-
263710000992 ClipClip
-
265710001000 Winch Solenoid. Model-InternationalWinch Solenoid. Model-International
-
295710001191 Voltage RegulatorVoltage Regulator
-
298710001248 Outlet DCOutlet DC
-
302710002525 High Beam Ass'yHigh Beam Ass'y
-
302b415129249 Halogen BulbHalogen Bulb
-
305710001364 Starter RelayStarter Relay
-
307710001473 ButtonButton
-
335710001645 Tail LightTail Light
-
346710001748 Battery Positive Cable. Model-InternationalBattery Positive Cable. Model-International
-
351710001749 Positive Cable. Model- North AmericaPositive Cable. Model- North America
-
355710001750 Positive CablePositive Cable
-
359710001752 Rectifier SupportRectifier Support
-
367710003062 Multi-Function HandleMulti-Function Handle
-
412710002092 Trim RingTrim Ring
-
420710002191 Low BeamLow Beam
-
420b715900141 Bulb 12V 55WBulb 12V 55W
-
423710002291 RH High Front HousingRH High Front Housing
-
423710002292 LH High Front HousingLH High Front Housing
-
432710003847 Ignition SwitchIgnition Switch
-
439710002404 Fixation PlateFixation Plate
-
443710002560 Winch Cables. Model-InternationalWinch Cables. Model-International
-
445710002569 CapCap
-
453710002631 Winch Interrupter Support. Model-InternationalWinch Interrupter Support. Model-International
-
454710003923 Speedometer Ass'ySpeedometer Ass'y
-
454a415129320 LensLens
-
460710002724 Winch Interrupter. Model-InternationalWinch Interrupter. Model-International
-
466710002896 Tie-Rap ClipTie-Rap Clip
-
514710003003 Negative Harness. Model-InternationalNegative Harness. Model-International
-
522710003260 Protective TubingProtective Tubing
-
530710003990 Battery TrayBattery Tray
-
531710004118 Connector BracketConnector Bracket
-
532710004183 Ground CableGround Cable
