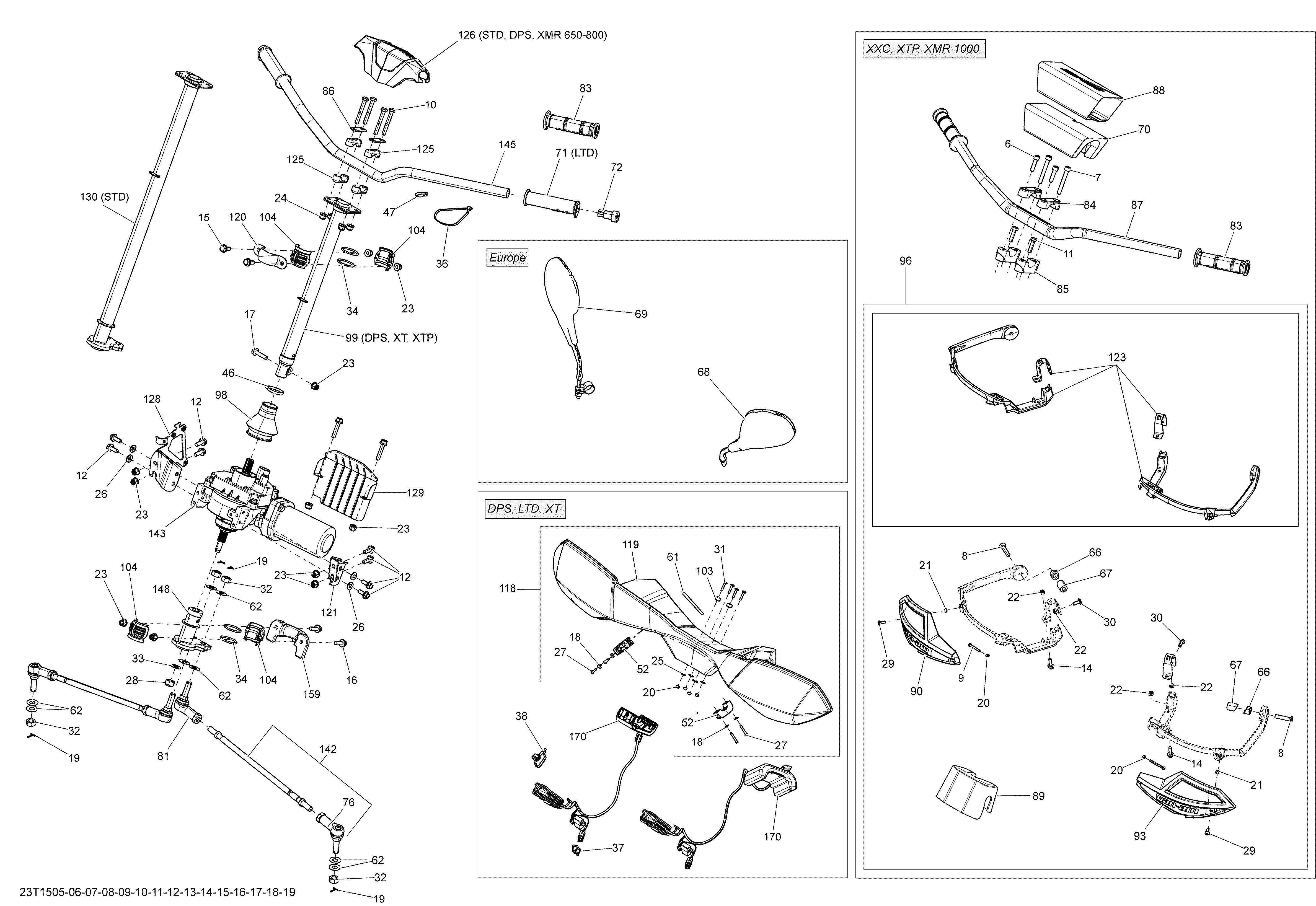

07- Steering _23T1509 для BRP Outlander 800R EFI Xmr - 2015
-
№АртикулНазвание
-
10207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
12207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
15207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
16207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
17207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
18211200035 Flat WasherFlat Washer
-
19211400013 Cotter PinCotter Pin
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
26234281474 Conical Spring Washer M8Conical Spring Washer M8
-
27241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
28250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
32250100099 Nut M12Nut M12
-
33250200086 Flat WasherFlat Washer
-
34293300068 O-RingO-Ring
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
52517303264 U-ClampU-Clamp
-
61704902966 DPS DecalDPS Decal
-
62250200086 Flat WasherFlat Washer
-
68709400406 LH Mirror. Model-EuropeLH Mirror. Model-Europe
-
69709400407 RH Mirror. Model-EuropeRH Mirror. Model-Europe
-
72709400449 End PieceEnd Piece
-
76709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
81709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
83709400493 Handle GripHandle Grip
-
86709400509 StiffnerStiffner
-
98709400674 BellowsBellows
-
99709400703 Noir Upper Main TubeNoir Upper Main Tube
-
104709400783 Spherical Half BushingSpherical Half Bushing
-
119709400822 Handle Bar ProtectorHandle Bar Protector
-
120709400827 Upper Column AttachmentUpper Column Attachment
-
121709400848 Power Steering Module BracketPower Steering Module Bracket
-
125709400919 Steering SupportSteering Support
-
126709400939 CoverCover
-
128709400994 RH Steering BracketRH Steering Bracket
-
129709401005 Heat DeflectorHeat Deflector
-
142703500829 Tie-Rod Ass'yTie-Rod Ass'y
-
143709401182 Power SteeringPower Steering
-
145709401240 Black Handle BarBlack Handle Bar
-
148703500812 Pitman KitPitman Kit
-
159709401428 Column AttachmentColumn Attachment
