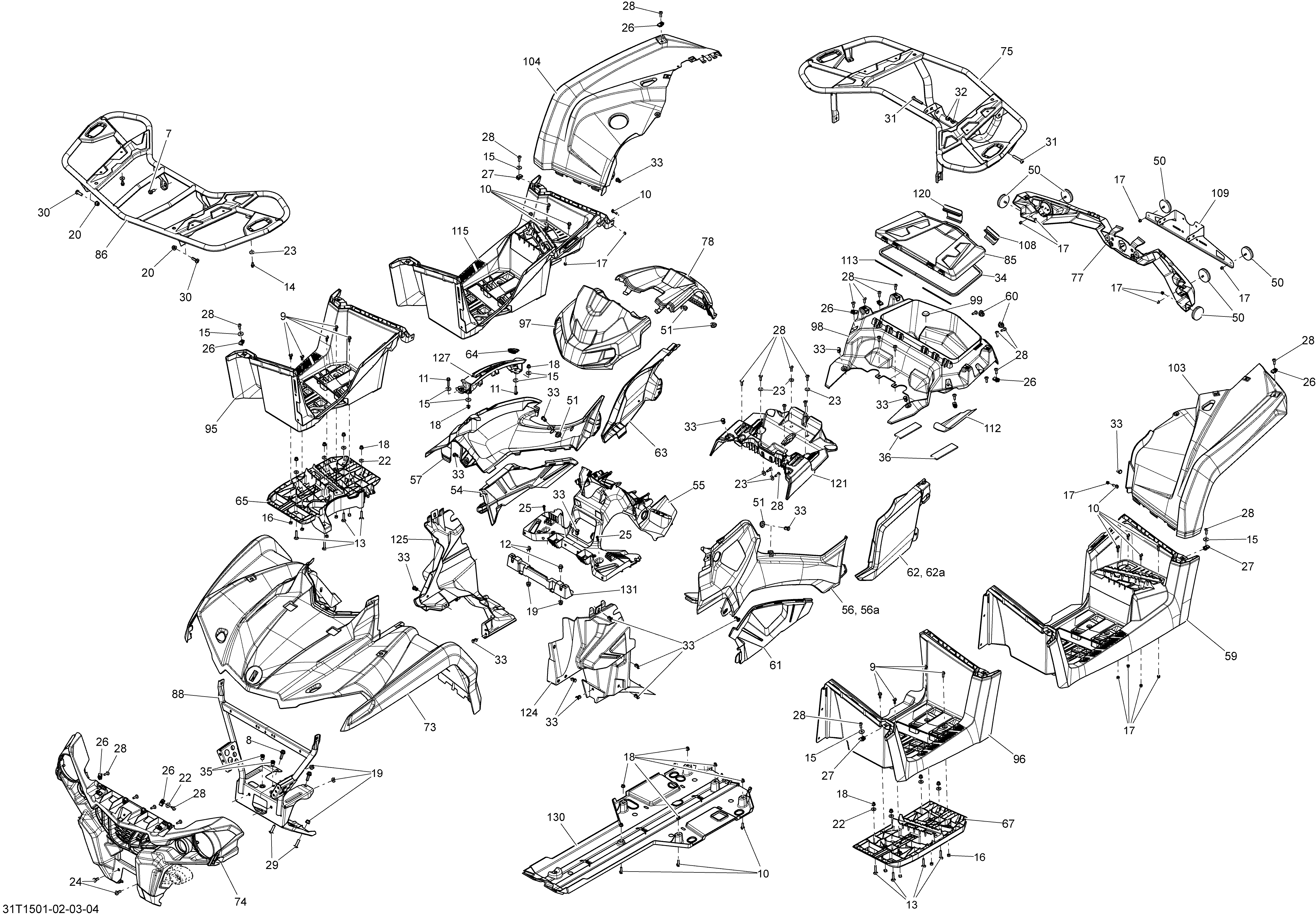

09- Body And Accessories _31T1504 для BRP Outlander L MAX 500 EFI - 2015
-
№АртикулНазвание
-
7207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
8207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
9207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
13207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
14210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
15224061201 Flat WasherFlat Washer
-
16232862412 Square Nut M6Square Nut M6
-
17233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
18233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
19233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
22234062410 Flat Washer 6 mmFlat Washer 6 mm
-
23234062670 Flat WasherFlat Washer
-
24236282084 Hex. Screw M8 X 20. Package STDHex. Screw M8 X 20. Package STD
-
25241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
26250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
28250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
29250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
30250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
31250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
32250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
33293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
34293250312 Neoprene SealNeoprene Seal
-
35293450307 InsertInsert
-
36293830163 Rubber PadRubber Pad
-
50705002408 Red ReflectorRed Reflector
-
51705003264 GrommetGrommet
-
54705003444 Engine CoverEngine Cover
-
55715002245 Dash Support Kit. Model-Europe, InternationalDash Support Kit. Model-Europe, International
-
55715001552 Dash Support Kit. Model North AmericaDash Support Kit. Model North America
-
56705003446 Yellow LH Lateral Panel. Model- YellowYellow LH Lateral Panel. Model- Yellow
-
56705005237 Red LH Pannel. Model- Viper RedRed LH Pannel. Model- Viper Red
-
56705007530 Quarry Gray LH Lateral Panel. Model- GreyQuarry Gray LH Lateral Panel. Model- Grey
-
57705009116 Quarry Gray RH Lateral Panel. Model-GreyQuarry Gray RH Lateral Panel. Model-Grey
-
57705009115 Viper Red RH Lateral Panel. Model-Viper RedViper Red RH Lateral Panel. Model-Viper Red
-
57705009019 Yellow RH Lateral Panel. Model-YellowYellow RH Lateral Panel. Model-Yellow
-
59705003525 LH Footboard, Max. Model- Outlander-MaxLH Footboard, Max. Model- Outlander-Max
-
60705003666 Rubber GrommetRubber Grommet
-
61705004147 LH Extension PannelLH Extension Pannel
-
62715001897 LH Extension Panel. Model- Outlander-MaxLH Extension Panel. Model- Outlander-Max
-
63705004348 RH Extension Panel. Model- Outlander-MaxRH Extension Panel. Model- Outlander-Max
-
64705005003 Shiftgate Trim. Model- EuropeShiftgate Trim. Model- Europe
-
65705005253 RH. FootboardRH. Footboard
-
67705005254 LH. FootboardLH. Footboard
-
73715002669 Grey Front Fender. Model-OUT-MAX Grey EuropeGrey Front Fender. Model-OUT-MAX Grey Europe
-
73715002670 Grey Front Fender. Model-OUT-MAX Grey InternationalGrey Front Fender. Model-OUT-MAX Grey International
-
73715002667 Grey Front Fender. Model-OUT-MAX Grey North AmericaGrey Front Fender. Model-OUT-MAX Grey North America
-
73715002684 Viper Red Front Fender. Model-OUT-MAX Viper Red InternationalViper Red Front Fender. Model-OUT-MAX Viper Red International
-
73715002682 Viper Red Front Fender. Model-OUT-MAX Viper Red North AmericaViper Red Front Fender. Model-OUT-MAX Viper Red North America
-
73715002677 Yellow Front Fender. Model-OUT-MAX Yellow EuropeYellow Front Fender. Model-OUT-MAX Yellow Europe
-
73715002678 Yellow Front Fender. Model-OUT-MAX Yellow InternationalYellow Front Fender. Model-OUT-MAX Yellow International
-
73715002675 Yellow Front Fender. Model-OUT-MAX Yellow North AmericaYellow Front Fender. Model-OUT-MAX Yellow North America
-
74705009335 Front Facia. Model-EuropeFront Facia. Model-Europe
-
74705009334 Front Facia. Model-North America, InternationalFront Facia. Model-North America, International
-
75705005304 Black Rear Luggage RackBlack Rear Luggage Rack
-
77705005576 Rear Facia. Except Model- EuropeRear Facia. Except Model- Europe
-
77705007445 Rear Facia. Model- EuropeRear Facia. Model- Europe
-
78715001765 Dash KitDash Kit
-
85715002726 Rear Box Cover. Model-Europe InternationalRear Box Cover. Model-Europe International
-
85715002724 Rear Cover Box Ass'y. Model-North AmericaRear Cover Box Ass'y. Model-North America
-
86705006887 Black Front Luggage RackBlack Front Luggage Rack
-
88705009256 Front StructureFront Structure
-
97705007066 Gage SupportGage Support
-
98715900335 Rear Box Ass'y. Model-OUTLANDERRear Box Ass'y. Model-OUTLANDER
-
98715002729 Rear Box Ass'y. Model-OUT-MAX EuropeRear Box Ass'y. Model-OUT-MAX Europe
-
98715002729 Rear Box Ass'y. Model-OUT-MAX InternationalRear Box Ass'y. Model-OUT-MAX International
-
98715002727 Rear Box Ass'y. Model-OUT-MAX North AmericaRear Box Ass'y. Model-OUT-MAX North America
-
99414859400 CapCap
-
103715002694 Grey LH Rear Fender. Model-OUT-MAX Grey EuropeGrey LH Rear Fender. Model-OUT-MAX Grey Europe
-
103715002696 Grey LH Rear Fender. Model-OUT-MAX Grey InternationalGrey LH Rear Fender. Model-OUT-MAX Grey International
-
103715002692 Grey LH Rear Fender. Model-OUT-MAX Grey North AmericaGrey LH Rear Fender. Model-OUT-MAX Grey North America
-
103715002717 Viper Red LH Rear Fender. Model-OUT-MAX Viper Red InternationalViper Red LH Rear Fender. Model-OUT-MAX Viper Red International
-
103715002715 Viper Red LH Rear Fender. Model-OUT-MAX Viper Red North AmericaViper Red LH Rear Fender. Model-OUT-MAX Viper Red North America
-
103715002704 Yellow LH Rear Fender. Model-OUT-MAX Yellow EuropeYellow LH Rear Fender. Model-OUT-MAX Yellow Europe
-
103715002706 Yellow LH Rear Fender. Model-OUT-MAX Yellow InternationalYellow LH Rear Fender. Model-OUT-MAX Yellow International
-
103715002702 Yellow LH Rear Fender. Model-OUT-MAX Yellow North AmericaYellow LH Rear Fender. Model-OUT-MAX Yellow North America
-
104715002721 Grey RH Rear Fender. Model-Grey EuropeGrey RH Rear Fender. Model-Grey Europe
-
104715002721 Grey RH Rear Fender. Model-Grey InternationalGrey RH Rear Fender. Model-Grey International
-
104705008501 Grey RH Rear Fender. Model-Grey North AmericaGrey RH Rear Fender. Model-Grey North America
-
104715002723 Viper Red RH Rear Fender. Model-Viper Red InternationalViper Red RH Rear Fender. Model-Viper Red International
-
104705008499 Viper Red RH Rear Fender. Model-Viper Red North AmericaViper Red RH Rear Fender. Model-Viper Red North America
-
104715002732 Camo RH Rear Fender. Model-Viper Red North AmericaCamo RH Rear Fender. Model-Viper Red North America
-
104715002719 Yellow RH Rear Fender. Model-Yellow EuropeYellow RH Rear Fender. Model-Yellow Europe
-
104715002719 Yellow RH Rear Fender. Model-Yellow InternationalYellow RH Rear Fender. Model-Yellow International
-
104705007210 Yellow RH Rear Fender. Model-Yellow North AmericaYellow RH Rear Fender. Model-Yellow North America
-
108705007448 LH Box Rear LatchLH Box Rear Latch
-
109705007449 Plate Support. Model- EuropePlate Support. Model- Europe
-
112705007487 Heat Deflector SheetHeat Deflector Sheet
-
113705007531 Retaining RodRetaining Rod
-
115705003521 RH Footboard, Max. Model- Outlander-Max 500RH Footboard, Max. Model- Outlander-Max 500
-
120705007921 RH Box Rear LatchRH Box Rear Latch
-
121705007948 Seat Holder. Model- Outlander-MaxSeat Holder. Model- Outlander-Max
-
124705007999 LH Inner FenderLH Inner Fender
-
125705008000 RH Inner FenderRH Inner Fender
-
127705005258 Indicator. Model- 500 North America, 500 InternationalIndicator. Model- 500 North America, 500 International
-
127705005259 Indicator. Model- 500 EuropeIndicator. Model- 500 Europe
-
130715002374 Protective Plate Kit. Package DPSProtective Plate Kit. Package DPS
-
131705008427 Console Add OnConsole Add On
-
56a705006871 Heat Shield. Model- Outlander-MaxHeat Shield. Model- Outlander-Max
-
62a705006870 Heat Shield. Model- Outlander-MaxHeat Shield. Model- Outlander-Max
