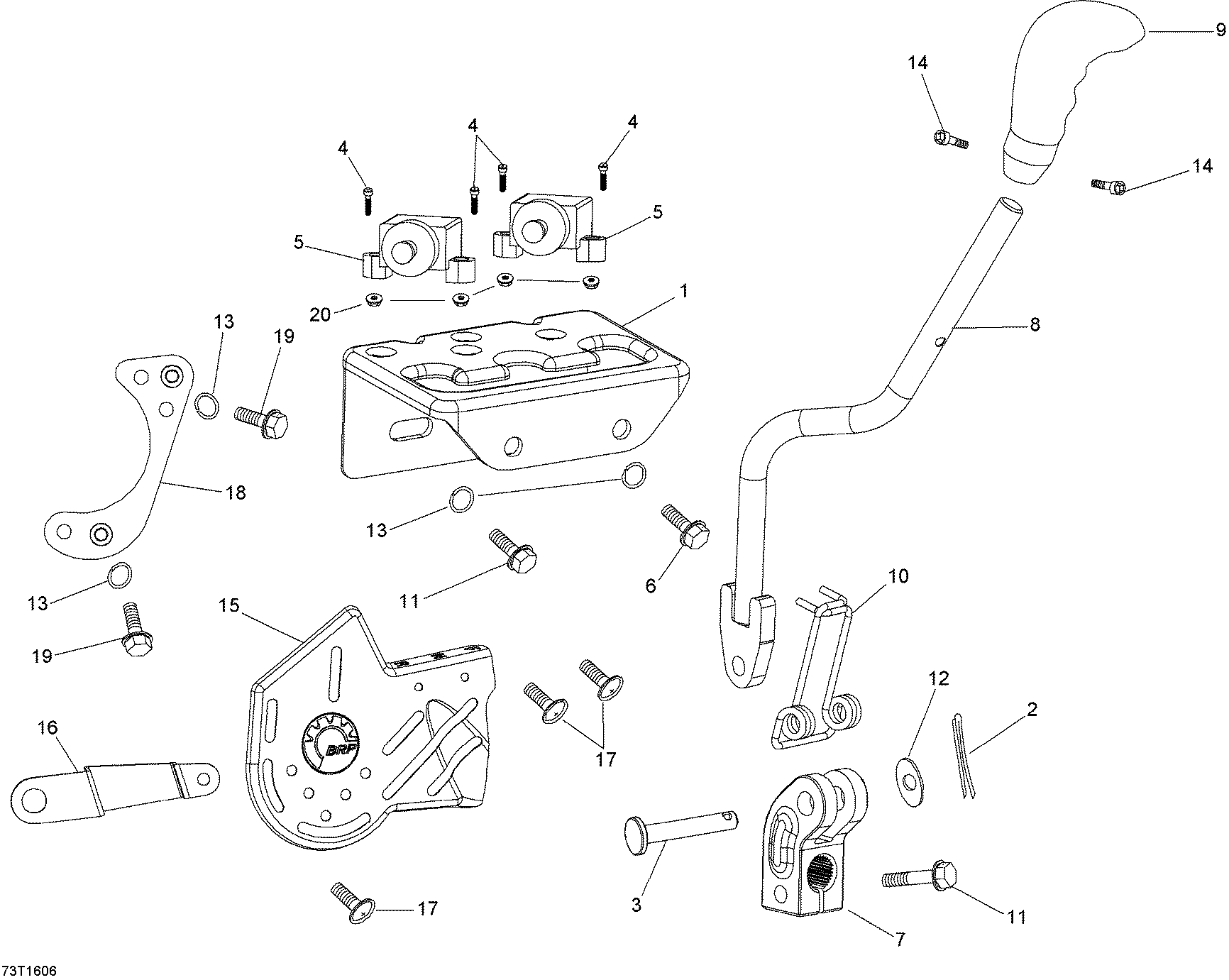

05- Shift Lever для BRP DS 90 X - 2016
-
№АртикулНазвание
-
1V72101DGF01H Shift PlateShift Plate
-
2V9420130032LL Cotter PinCotter Pin
-
3V50226MAF040 PinPin
-
4V9350005015 Pan Head Phillips Bolt M5 X 15Pan Head Phillips Bolt M5 X 15
-
5V35152DGF060 SwitchSwitch
-
6207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
7V72315MAD040 Support ShifterSupport Shifter
-
8V72314DGF050LL ShifterShifter
-
9V72201CEK040LL HandleHandle
-
10V54294MAF030LL SpringSpring
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12V941010816015L WasherWasher
-
13234161601 Lock Washer Helical M6Lock Washer Helical M6
-
14V9105005006 Socket Head ScrewSocket Head Screw
-
15V50122DGF03HLL Front Chain GuardFront Chain Guard
-
16V50124DGF00H Chain Guard BracketChain Guard Bracket
-
17V9300006012BLL Round Head Bolt M6 X 12, WhiteRound Head Bolt M6 X 12, White
-
18V50242DGF02H Rear Chain GuardRear Chain Guard
-
19207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
20234161601 Lock Washer Helical M6Lock Washer Helical M6
