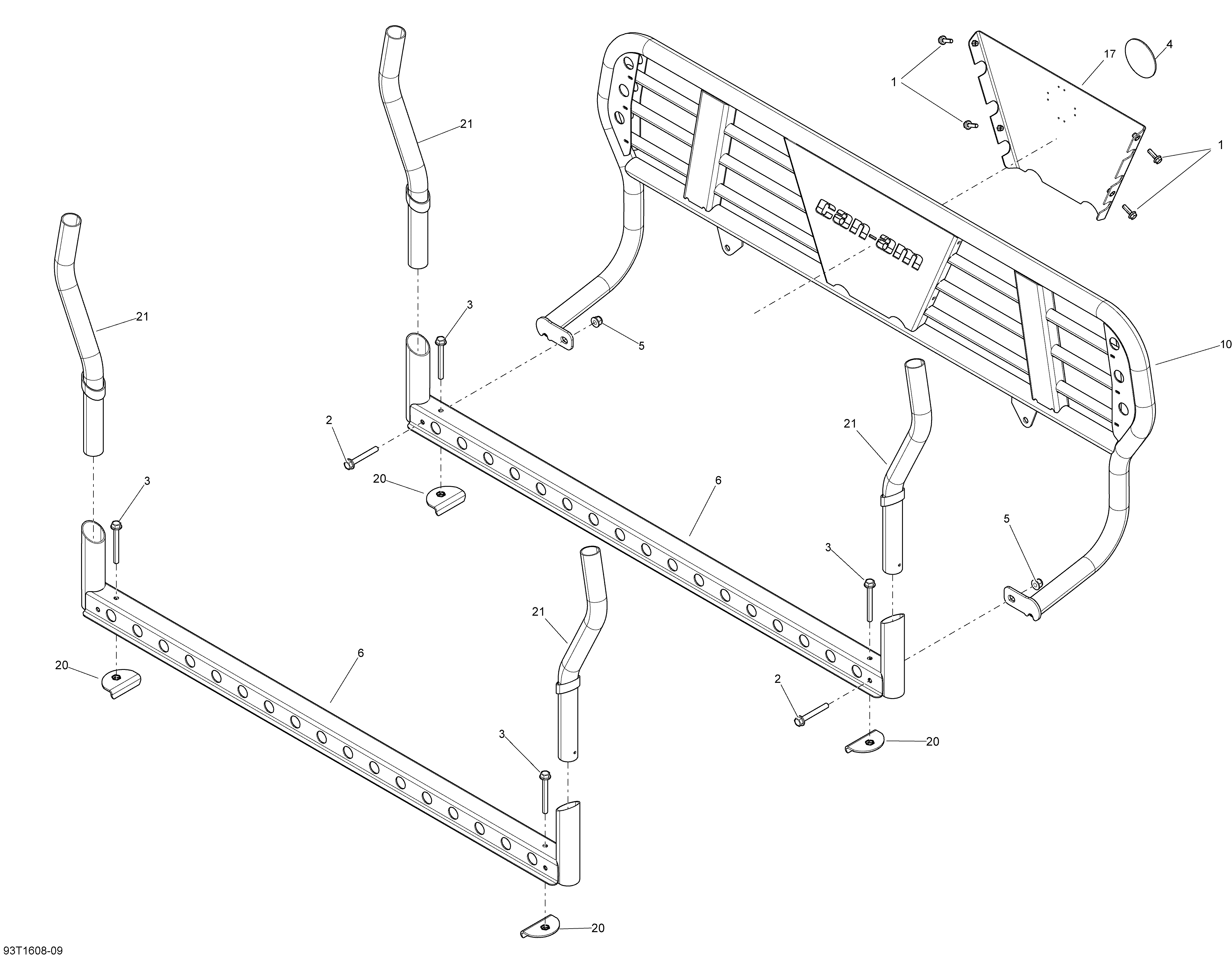

09- Forestry Log Bar для BRP Outlander 6X6 - 1000 EFI - 2016
-
№АртикулНазвание
-
1207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
2207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
3207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
4219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6708300974 Frame Tube PaintedFrame Tube Painted
-
10708301554 Front Wall AssemblyFront Wall Assembly
-
17708301072 Cover PlateCover Plate
-
20708301094 Fastening PlateFastening Plate
-
21708301277 Log Bar PaintedLog Bar Painted
