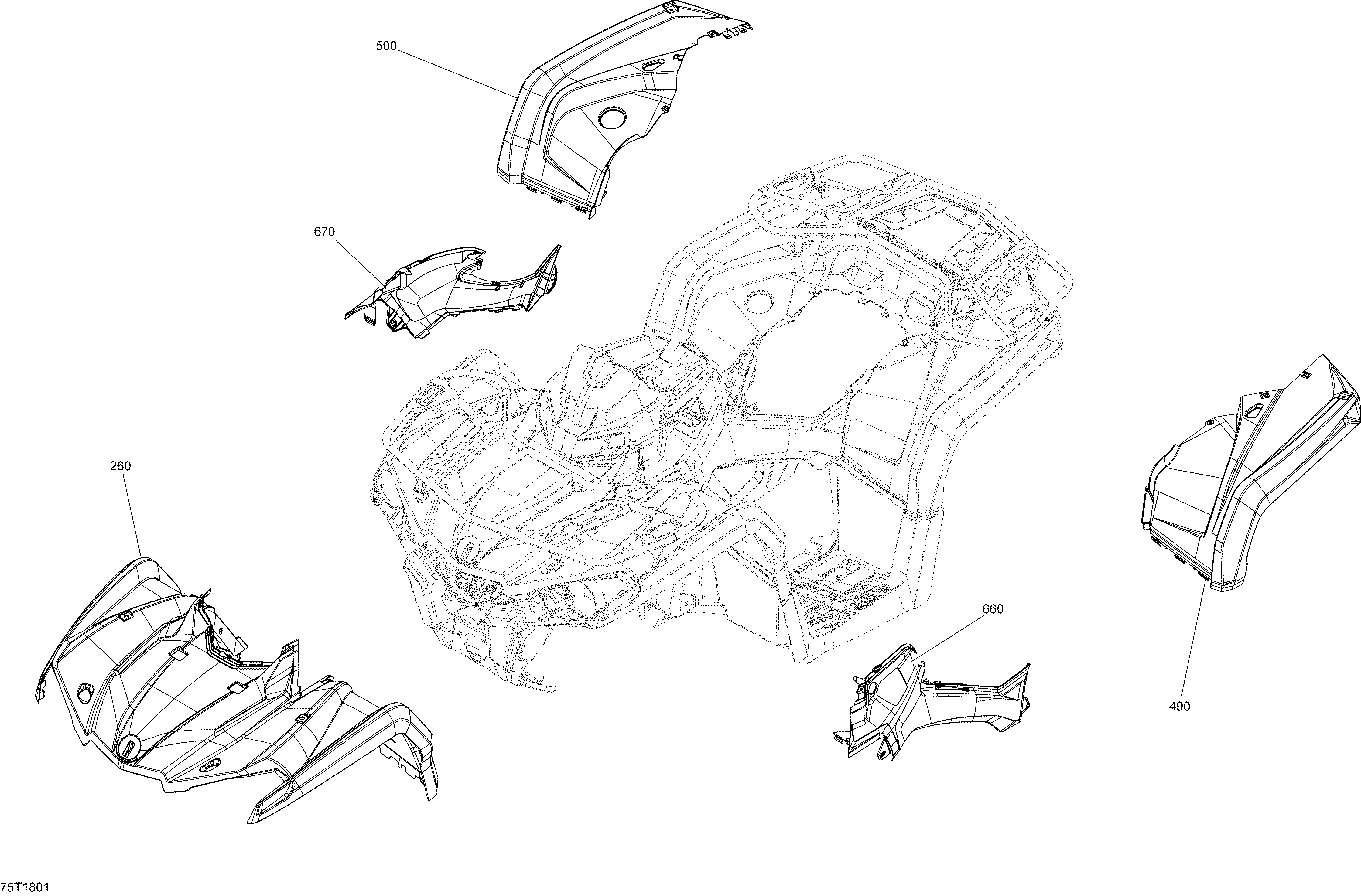

09- Fender And Central Panel Kit G2L - Viper Red для BRP 1- Outlander 450 EFI - 2018
-
№АртикулНазвание
-
260715002679 Viper Red Front Fender. Outlander North AmericaViper Red Front Fender. Outlander North America
-
260715002681 Viper Red Front Fender. Outlander InternationnalViper Red Front Fender. Outlander Internationnal
-
260715002682 Viper Red Front Fender. Out-Max North AmericaViper Red Front Fender. Out-Max North America
-
260715002684 Viper Red Front Fender. Out-Max InternationnalViper Red Front Fender. Out-Max Internationnal
-
260715003891 Viper Red Front Fender. T3Viper Red Front Fender. T3
-
490715003952 Viper Red LH Rear Fender. T3Viper Red LH Rear Fender. T3
-
490715003987 Viper Red LH Rear Fender. Outlander North AmericaViper Red LH Rear Fender. Outlander North America
-
490715003989 Viper Red LH Rear Fender. Outlander InternationnalViper Red LH Rear Fender. Outlander Internationnal
-
490715003990 Viper Red LH Rear Fender. Out-Max North AmericaViper Red LH Rear Fender. Out-Max North America
-
490715003992 Viper Red LH Rear Fender. Out-Max InternationnalViper Red LH Rear Fender. Out-Max Internationnal
-
500715002722 Viper Red RH Rear Fender. North AmericaViper Red RH Rear Fender. North America
-
500715002723 Viper Red RH Rear Fender. InternationnalViper Red RH Rear Fender. Internationnal
-
500715003969 Viper Red RH Rear Fender. T3Viper Red RH Rear Fender. T3
-
660705005237 Red LH Lateral PannelRed LH Lateral Pannel
-
670705009115 Red RH Lateral PanelRed RH Lateral Panel
-
670715003981 Red RH Lateral Panel. T3Red RH Lateral Panel. T3
