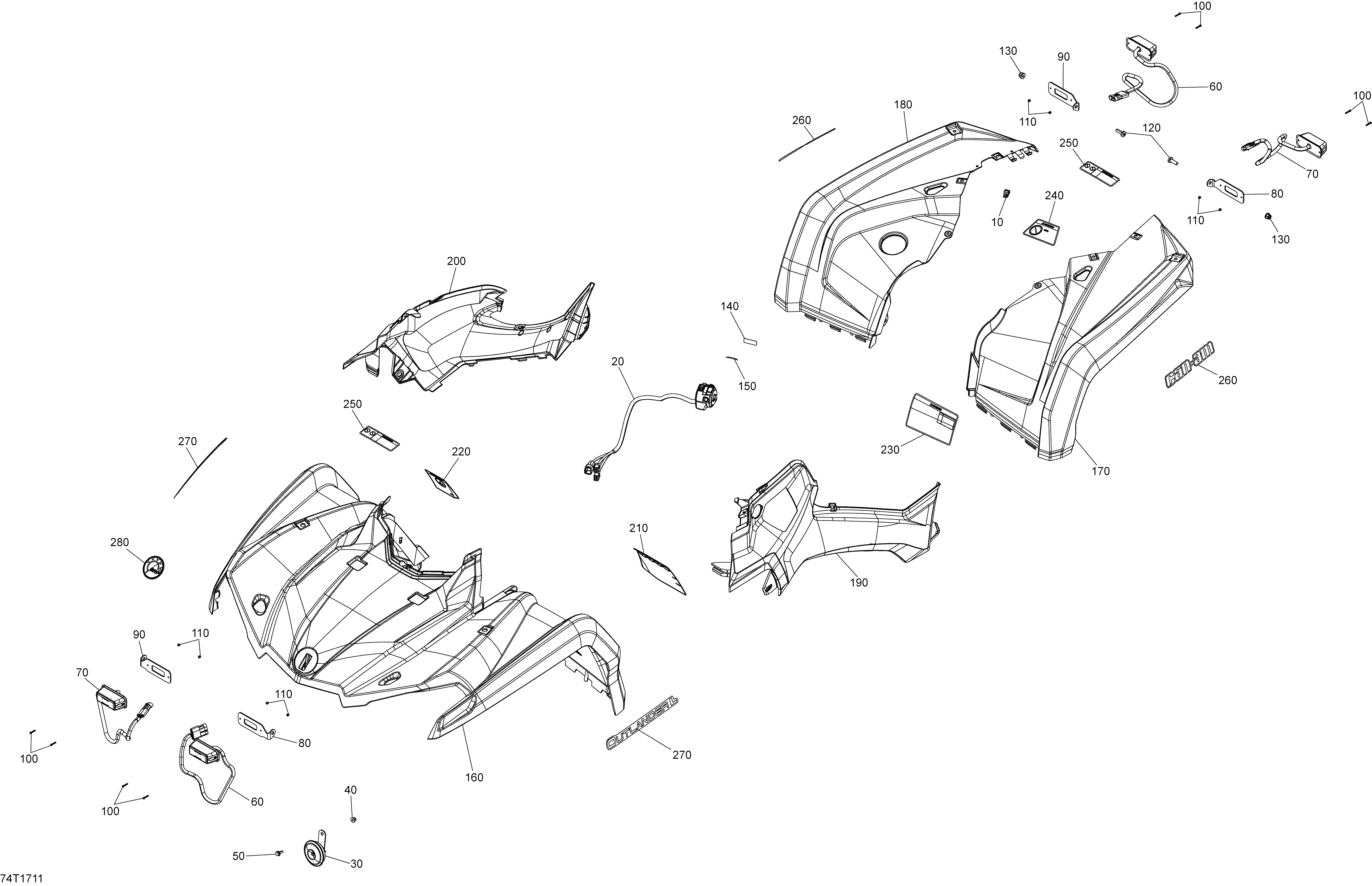

09- Accessories - Police Package для BRP 3- Outlander 570 EFI - 2018
-
№АртикулНазвание
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
20293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30293750058 Locking Tie RapLocking Tie Rap
-
40710004654 Multi-Function HandleMulti-Function Handle
-
50710004791 HornHorn
-
60233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
70207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
80710005303 Blue Flasher Ass'yBlue Flasher Ass'y
-
90710005300 Red Flasher Ass'yRed Flasher Ass'y
-
95710005818 Electrical Harness - FlasherElectrical Harness - Flasher
-
100710004958 LH Front Flasher BracketLH Front Flasher Bracket
-
110710004959 RH Front Flasher BracketRH Front Flasher Bracket
-
120710004811 Socket Screw M3 X 14Socket Screw M3 X 14
-
130232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
140250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
150233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
155293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
160705009746 Black Mat Front FenderBlack Mat Front Fender
-
170705009744 Black Mat LH Rear FenderBlack Mat LH Rear Fender
-
180705009745 Black Mat RH Rear FenderBlack Mat RH Rear Fender
-
190705009293 Black Mat LH Side PanelBlack Mat LH Side Panel
-
200705009294 Black Mat RH Side PanelBlack Mat RH Side Panel
-
210704906842 Warning Decal, Death and InjuriesWarning Decal, Death and Injuries
-
220704905677 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
230704906970 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
240704906851 Warning Decal, PassengerWarning Decal, Passenger
-
250704905702 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
260704904536 CAN-AM DecalCAN-AM Decal
-
270704904537 Front Side Decal, OutlanderFront Side Decal, Outlander
-
280516008739 Logo BRPLogo BRP
