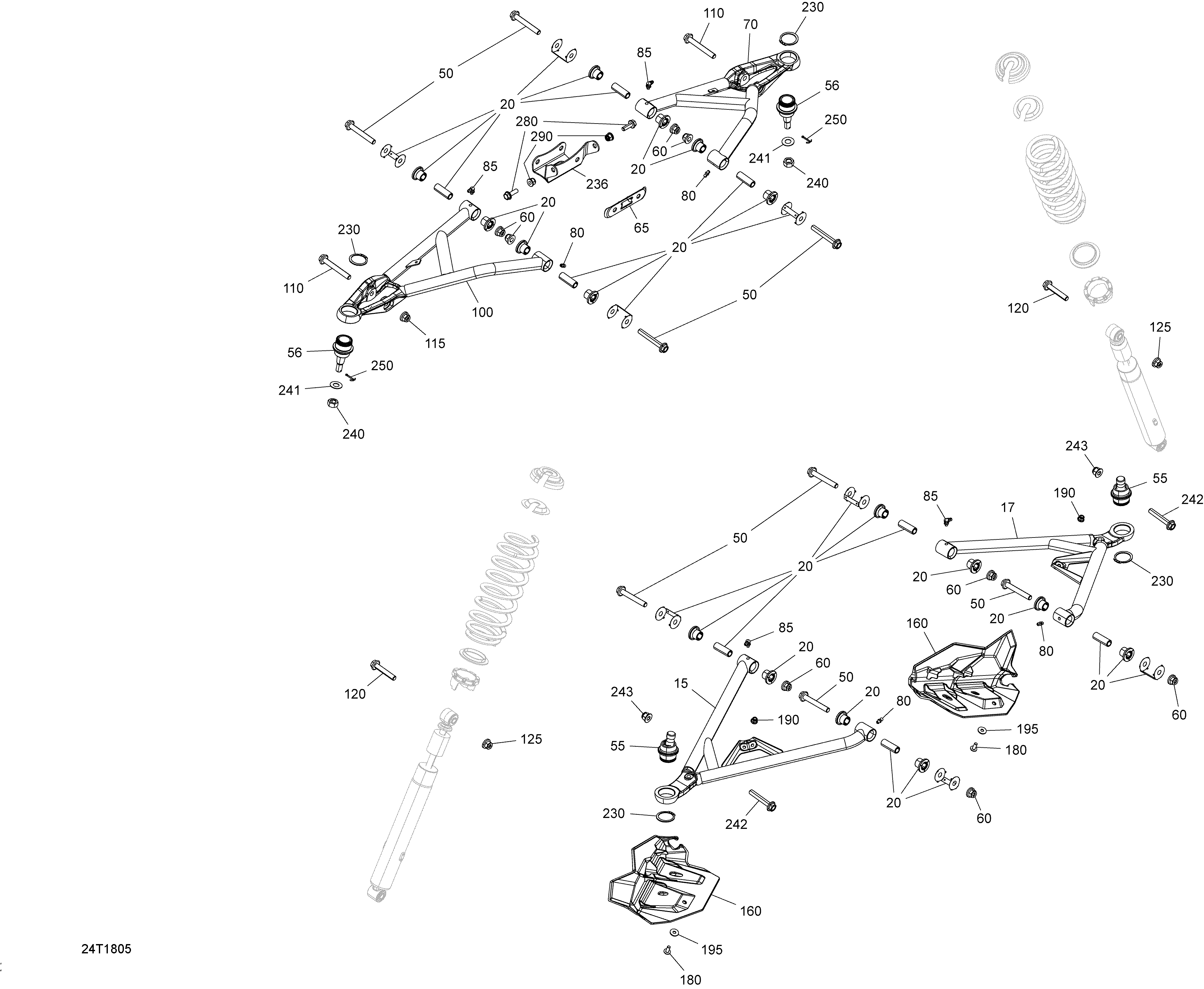

07- Front Suspension для BRP 2- Outlander T3 570 EFI (3FJD) - 2018
-
№АртикулНазвание
-
15706202869 Black LH Lower ArmBlack LH Lower Arm
-
17706202870 Black RH Lower ArmBlack RH Lower Arm
-
20703500875 Bushing KitBushing Kit
-
30703500875 Bushing KitBushing Kit
-
40703500875 Bushing KitBushing Kit
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55706202045 Ball JointBall Joint
-
56706202044 Ball JointBall Joint
-
60233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
65706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
70706201797 Black RH Upper Arm. Engine 650, 1000Black RH Upper Arm. Engine 650, 1000
-
70706201877 Black RH Upper Arm. Engine 570Black RH Upper Arm. Engine 570
-
80408200700 Grease FittingGrease Fitting
-
85293550056 Grease Fitting 90°Grease Fitting 90°
-
100706201796 Black LH Upper Arm. Engine 650, 1000Black LH Upper Arm. Engine 650, 1000
-
100706201876 Black LH Upper Arm. Engine 570Black LH Upper Arm. Engine 570
-
110207607587 Flanged Hex. Screw M10 X 75. Engine 650, 1000Flanged Hex. Screw M10 X 75. Engine 650, 1000
-
120207605546 Hex. Flanged Screw M10 X 55. Engine 650, 1000Hex. Flanged Screw M10 X 55. Engine 650, 1000
-
120207605546 Hex. Flanged Screw M10 X 55. Engine 570Hex. Flanged Screw M10 X 55. Engine 570
-
125233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
160706202808 LH Joint ProtectorLH Joint Protector
-
170706202809 RH Joint ProtectorRH Joint Protector
-
180250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
190233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
195234062670 Flat Washer, StainlessFlat Washer, Stainless
-
230293370035 CirclipCirclip
-
236705203247 Upper Front HolderUpper Front Holder
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
242207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
243233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
250211400017 Cotter PinCotter Pin
-
280207682534 Hex. Flanged Screw M8 X 25. Not ShownHex. Flanged Screw M8 X 25. Not Shown
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
