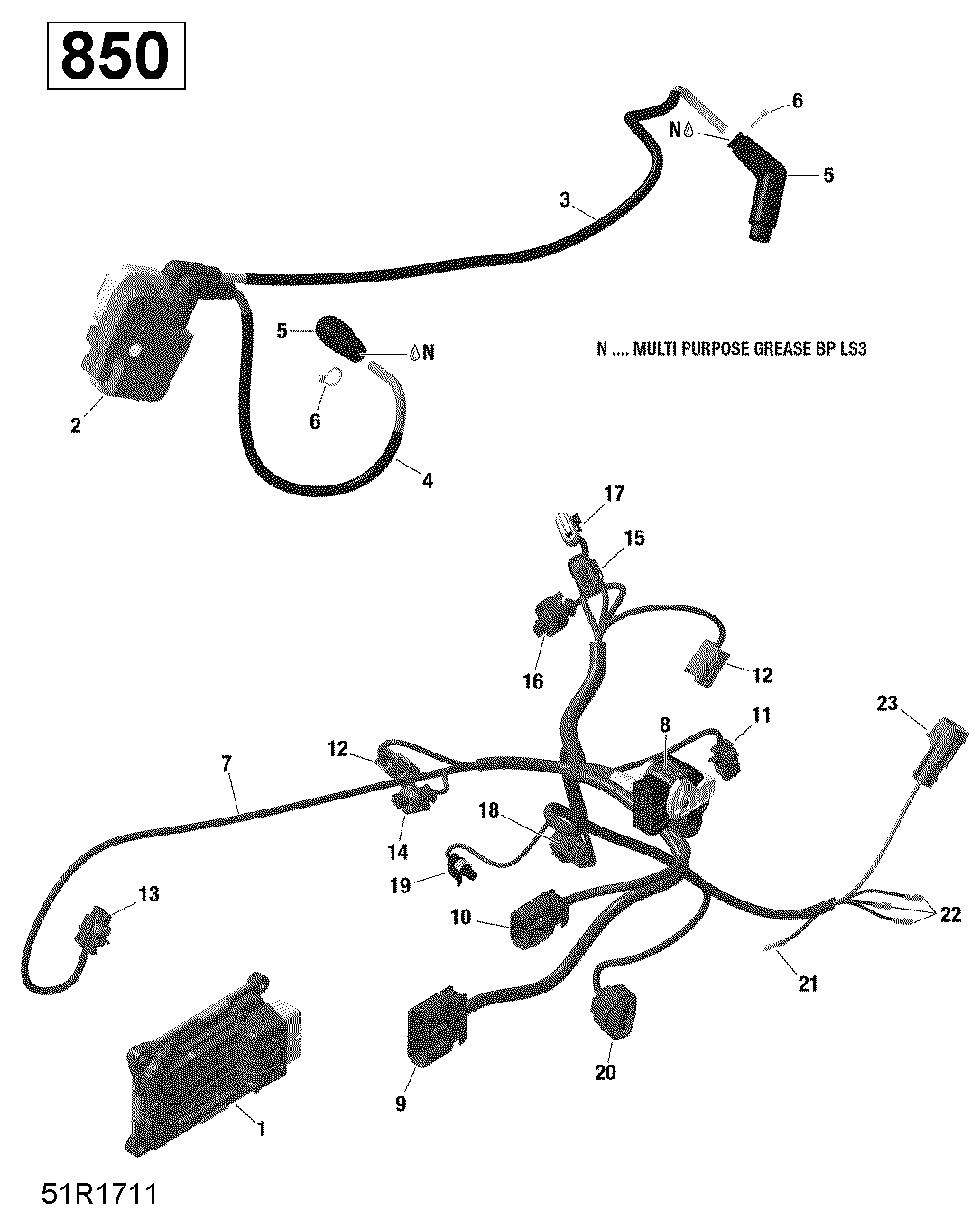

10- Engine Harness and Electronic Module - 850 EFI (Outlander MAX) для BRP 7- Outlander MAX 850 EFI - 2018
-
№АртикулНазвание
-
1420464071 ECM, Engine Control Module. Except Europe, Except Winter Package, Except CARBECM, Engine Control Module. Except Europe, Except Winter Package, Except CARB
-
1420464072 ECM, Engine Control Module. EuropeECM, Engine Control Module. Europe
-
1420464350 ECM, Engine Control Module. Winter PackageECM, Engine Control Module. Winter Package
-
1420464077 ECM, Engine Control Module. CARBECM, Engine Control Module. CARB
-
2420266070 Ignition CoilIgnition Coil
-
3420464166 Spark Plug Cable, 570 mm, PTO SideSpark Plug Cable, 570 mm, PTO Side
-
4420464155 Spark Plug Cable, 315 mm, MAG SideSpark Plug Cable, 315 mm, MAG Side
-
5420265020 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7420864692 Engine Wiring Harness. Except Winter PackageEngine Wiring Harness. Except Winter Package
-
7420666573 Engine Wiring Harness. Winter PackageEngine Wiring Harness. Winter Package
-
9710001227 Housing. DELPHI 15326868Housing. DELPHI 15326868
-
10710001927 Housing. DELPHI 15326840Housing. DELPHI 15326840
-
11278001005 Male Housing, 2 Circuits. BOSCH 1928403137Male Housing, 2 Circuits. BOSCH 1928403137
-
14278001005 Male Housing, 2 Circuits. BOSCH 1928403137Male Housing, 2 Circuits. BOSCH 1928403137
-
15278001829 Housing Connector, 3 Circuits. BOSCH 1928403870Housing Connector, 3 Circuits. BOSCH 1928403870
-
16515176410 Male Connector. BOSCH 1928403736Male Connector. BOSCH 1928403736
-
18278002378 Male Housing. DEUTSCH DT04-3PMale Housing. DEUTSCH DT04-3P
-
20710000329 Male Housing, 4 Circuits. SUMIIMOTO 6189-0225Male Housing, 4 Circuits. SUMIIMOTO 6189-0225
-
21278001007 Insulated Sheath. YAZAKI 7120-1151 (P/N 964072)Insulated Sheath. YAZAKI 7120-1151 (P/N 964072)
-
22278000997 Male Housing, 3 Circuits. BOSCH 1928403110Male Housing, 3 Circuits. BOSCH 1928403110
