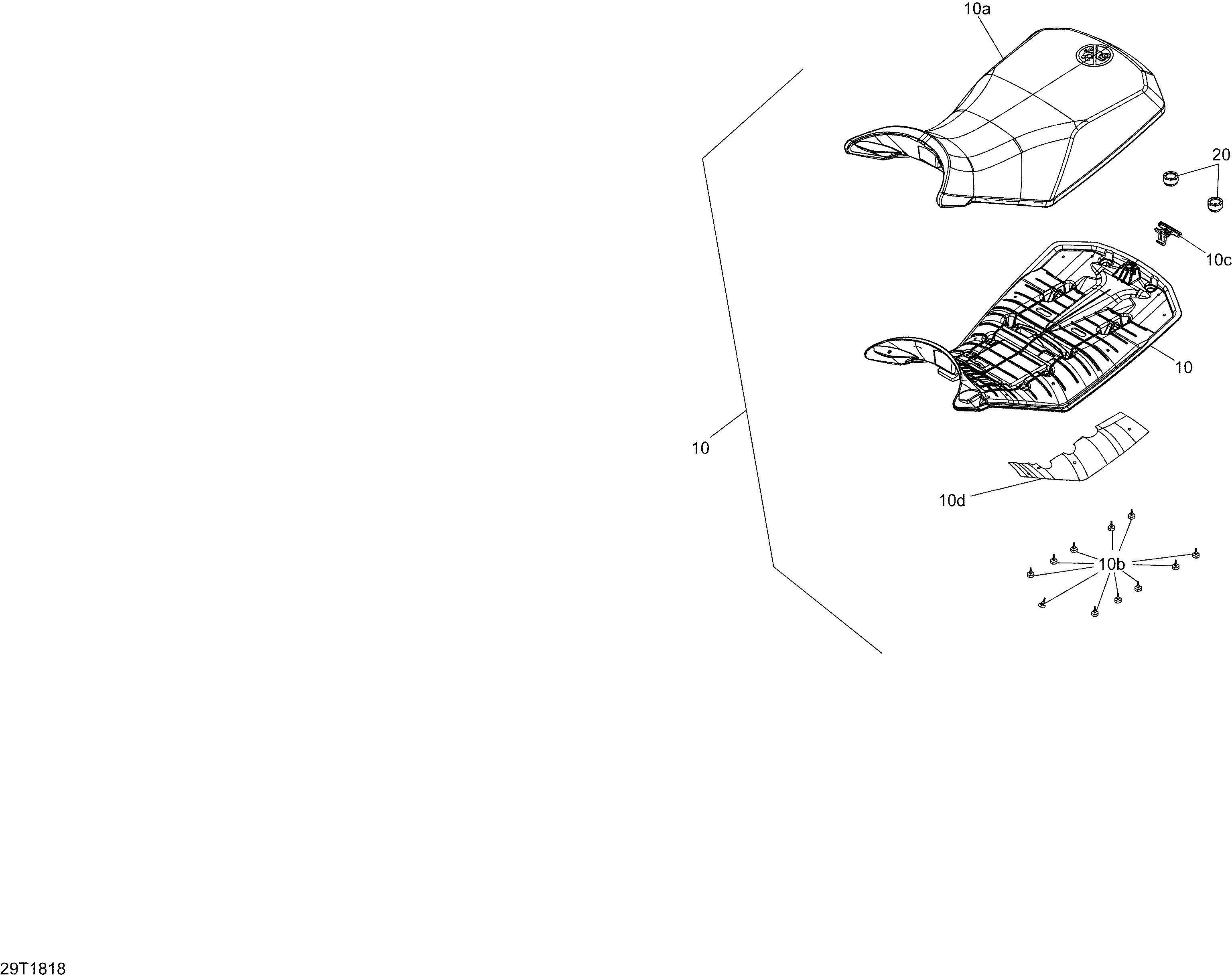

09- Seat G2 Outlander - XMR для BRP 9- Outlander 1000R EFI - XMR - 2018 - 2018
-
№АртикулНазвание
-
10>10d708002494 Assembly Seat. Can-am Red. Includes 10 to 10dAssembly Seat. Can-am Red. Includes 10 to 10d
-
10a708001979 Seat Cover. Can-am RedSeat Cover. Can-am Red
-
10b708000759 Rubber Stopper. Can-am RedRubber Stopper. Can-am Red
-
10c708000909 Latch. Can-am RedLatch. Can-am Red
-
10d705005761 Heat Shield. Can-am RedHeat Shield. Can-am Red
-
10>10d708002549 Assembly Seat. Sunburst Yellow. Includes 10 to 10dAssembly Seat. Sunburst Yellow. Includes 10 to 10d
-
10a708002550 Seat Cover. Sunburst YellowSeat Cover. Sunburst Yellow
-
10b708000759 Rubber Stopper. Sunburst YellowRubber Stopper. Sunburst Yellow
-
10c708000909 Latch. Sunburst YellowLatch. Sunburst Yellow
-
10d705005761 Heat Shield. Sunburst YellowHeat Shield. Sunburst Yellow
-
20708000760 Bumper RubberBumper Rubber
