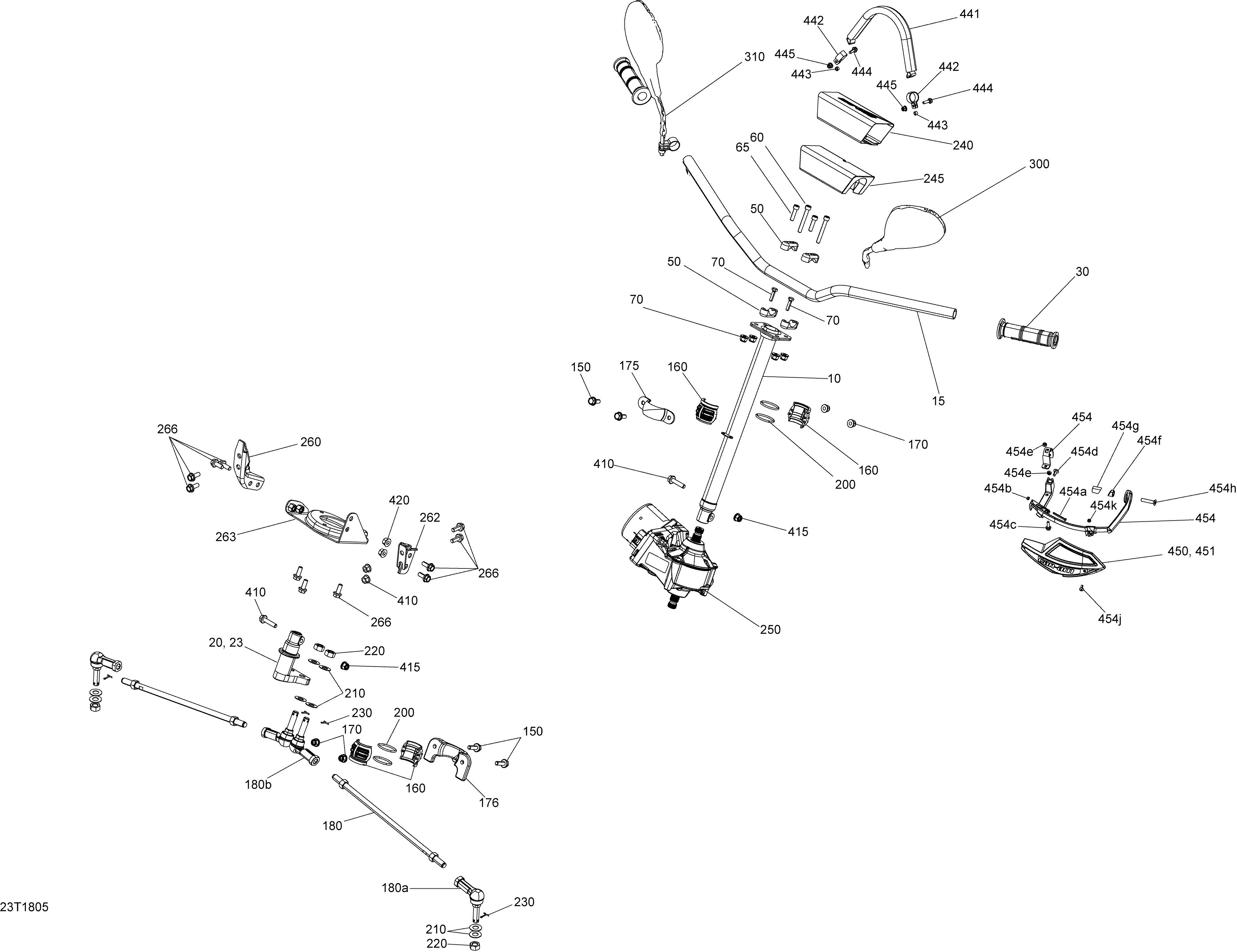

07- Steering Renegade - XMR для BRP 3- Renegade 1000R EFI - 2018
-
№АртикулНазвание
-
10709401750 Black Upper Main TubeBlack Upper Main Tube
-
15709401643 Red Handle Bar. Can-Am Red ModelsRed Handle Bar. Can-Am Red Models
-
15709401644 Blue Handle Bar. Gulfstream Blue ModelsBlue Handle Bar. Gulfstream Blue Models
-
15709402063 Sunburst Yellow - Handle Bar. Sunburst Yellow ModelsSunburst Yellow - Handle Bar. Sunburst Yellow Models
-
23709401756 Pitman ArmPitman Arm
-
30709400493 Handle GripHandle Grip
-
50709400497 Steering SupportSteering Support
-
55709400496 SupportSupport
-
60205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
65205083060 Socket Screw M8 X 30Socket Screw M8 X 30
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
75207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160709400783 Spherical Half BushingSpherical Half Bushing
-
170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
175709400827 Upper Column AttachmentUpper Column Attachment
-
176709401428 Column AttachmentColumn Attachment
-
180>180b703500922 Tie Rod Ass'y. All Models Except Package XMR. Includes 180 to 180bTie Rod Ass'y. All Models Except Package XMR. Includes 180 to 180b
-
180>180b703500923 Tie Rod Ass'y. Package XMR. Includes 180 to 180bTie Rod Ass'y. Package XMR. Includes 180 to 180b
-
180a709401837 Ball Joint, LH ThreadBall Joint, LH Thread
-
180b709401839 Ball Joint, RH ThreadBall Joint, RH Thread
-
200293300068 O-RingO-Ring
-
210250200086 Flat WasherFlat Washer
-
220250100099 Nut M12Nut M12
-
230211400013 Cotter PinCotter Pin
-
240709401511 Cover. Timeless Black And Gulfstream Blue ModelsCover. Timeless Black And Gulfstream Blue Models
-
240709401652 Cover. Can-Am Red ModelsCover. Can-Am Red Models
-
240709402057 Cover. Sunburst Yellow ModelsCover. Sunburst Yellow Models
-
245709400422 FoamFoam
-
250709402204 Power SteeringPower Steering
-
260709402184 LH Power Steering BracketLH Power Steering Bracket
-
262709401742 RH Power Steering BracketRH Power Steering Bracket
-
263709401743 Power Steering SupportPower Steering Support
-
266207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
300709400406 LH Mirror. T3LH Mirror. T3
-
310709400407 RH Mirror. T3RH Mirror. T3
-
410250000972 Flanged Hex. Screw M8 X 35Flanged Hex. Screw M8 X 35
-
415233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
420233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
441506152115 Strap Ass'y. Package XMRStrap Ass'y. Package XMR
-
442709401720 Collar Tube. Package XMRCollar Tube. Package XMR
-
443506152156 Bushing. Package XMRBushing. Package XMR
-
444207662054 Hex. Flanged Screw M6 X 20. Package XMRHex. Flanged Screw M6 X 20. Package XMR
-
445233261466 Hex. Flanged Elastic Nut M6. Package XMRHex. Flanged Elastic Nut M6. Package XMR
-
451709401667 Red RH Deflector. Can-Am Red ModelsRed RH Deflector. Can-Am Red Models
-
452709401668 Red LH Deflector. Can-Am Red ModelsRed LH Deflector. Can-Am Red Models
-
451709401669 Black RH Deflector. Gulfstream Blue ModelsBlack RH Deflector. Gulfstream Blue Models
-
452709401670 Black LH Deflector. Gulfstream Blue ModelsBlack LH Deflector. Gulfstream Blue Models
-
451709402053 RH Air Deflector. Sunburst Yellow ModelsRH Air Deflector. Sunburst Yellow Models
-
452709402054 LH Air Deflector. Sunburst Yellow ModelsLH Air Deflector. Sunburst Yellow Models
-
454>454m715001378 Air Deflector Support Kit. Includes 450 to 450mAir Deflector Support Kit. Includes 450 to 450m
-
454a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
454b250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
454c232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
454d205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
454e232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
454f709400161 Bracket, SmallBracket, Small
-
454g709400162 Bracket, LargeBracket, Large
-
454h205384034 Socket Head ScrewSocket Head Screw
-
454j250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
454k232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
-
454m709400278 Steering CoverSteering Cover
