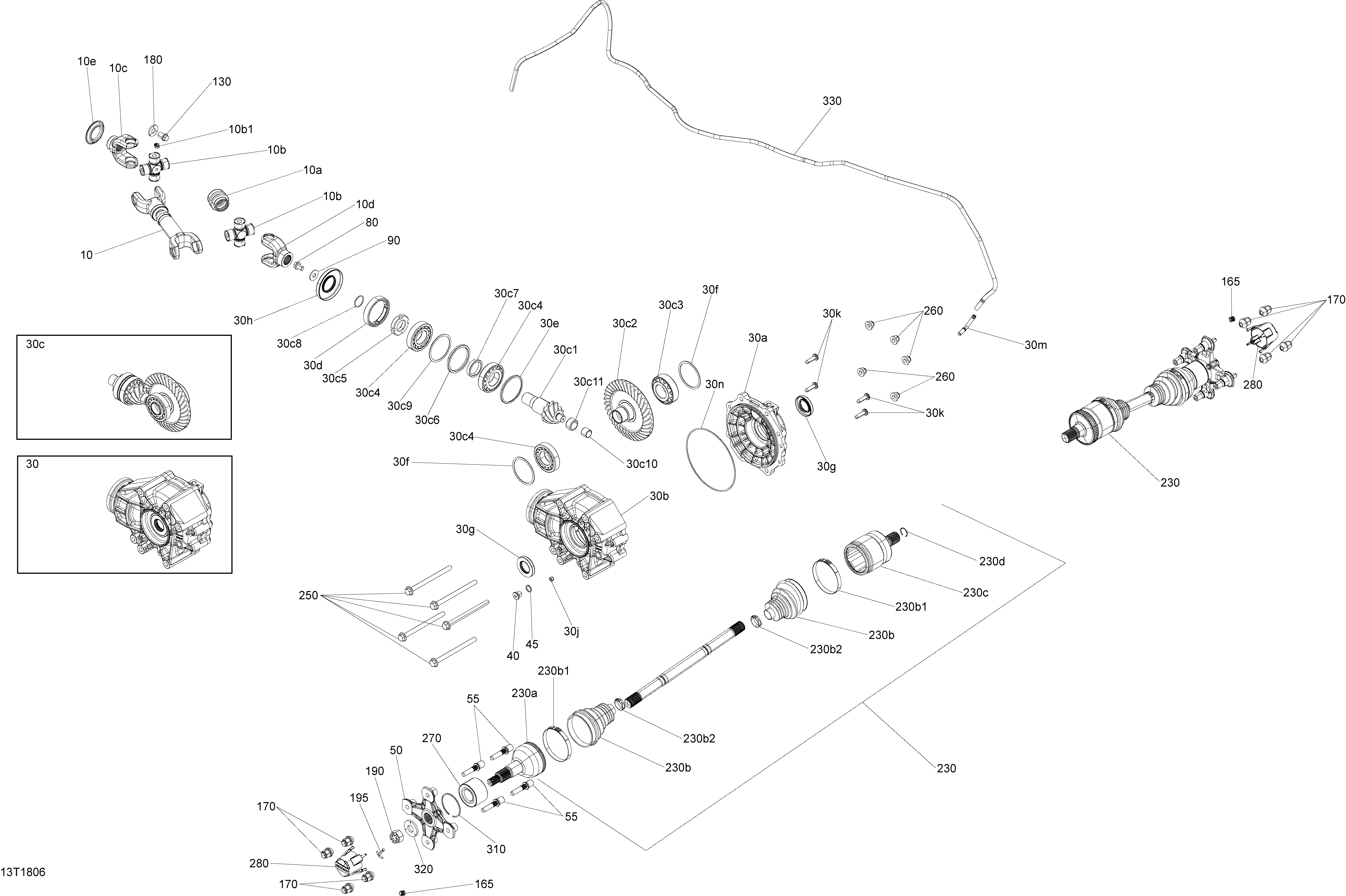

08- Drive, Rear Renegade для BRP 1- Renegade T3 650 EFI - 2018
-
№АртикулНазвание
-
10703500988 Shaft Ass'y Kit. Includes 10 to 10eShaft Ass'y Kit. Includes 10 to 10e
-
10a715900118 Rubber BootRubber Boot
-
10b703500846 Universal Joint Ass'y. Includes 10b to 10b1Universal Joint Ass'y. Includes 10b to 10b1
-
10b1715900295 Grease FittingGrease Fitting
-
10c715900499 JointJoint
-
10d715900438 JointJoint
-
10e705501123 ProtectorProtector
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501900 Wheel HubWheel Hub
-
55250300048 Wheel StudWheel Stud
-
80250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
90250200014 Flat Washer M10Flat Washer M10
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
165293000110 Valve CapValve Cap
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705502577 RH Homocinetic Joint. With Brake ABS. Includes 230 to 230fRH Homocinetic Joint. With Brake ABS. Includes 230 to 230f
-
230a705501776 CV JointCV Joint
-
230b705501864 Boot Kit. Includes 230b to 230b2Boot Kit. Includes 230b to 230b2
-
230b1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230b2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230d705501780 Plunging Joint. LHPlunging Joint. LH
-
230d715900604 Plunging Joint. RHPlunging Joint. RH
-
230f705501781 CirclipCirclip
-
240705501485 LH Homocinetic Joint. Includes 240 to 240fLH Homocinetic Joint. Includes 240 to 240f
-
240a705501776 CV JointCV Joint
-
240b705501864 Boot Kit. Includes 240b to 240b2Boot Kit. Includes 240b to 240b2
-
240b1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
240b2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
240d705501780 Plunging JointPlunging Joint
-
240f705501781 CirclipCirclip
-
250250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
280705400928 Wheel CapWheel Cap
-
310293370019 CirclipCirclip
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330293830193 Polyurethane HosePolyurethane Hose
