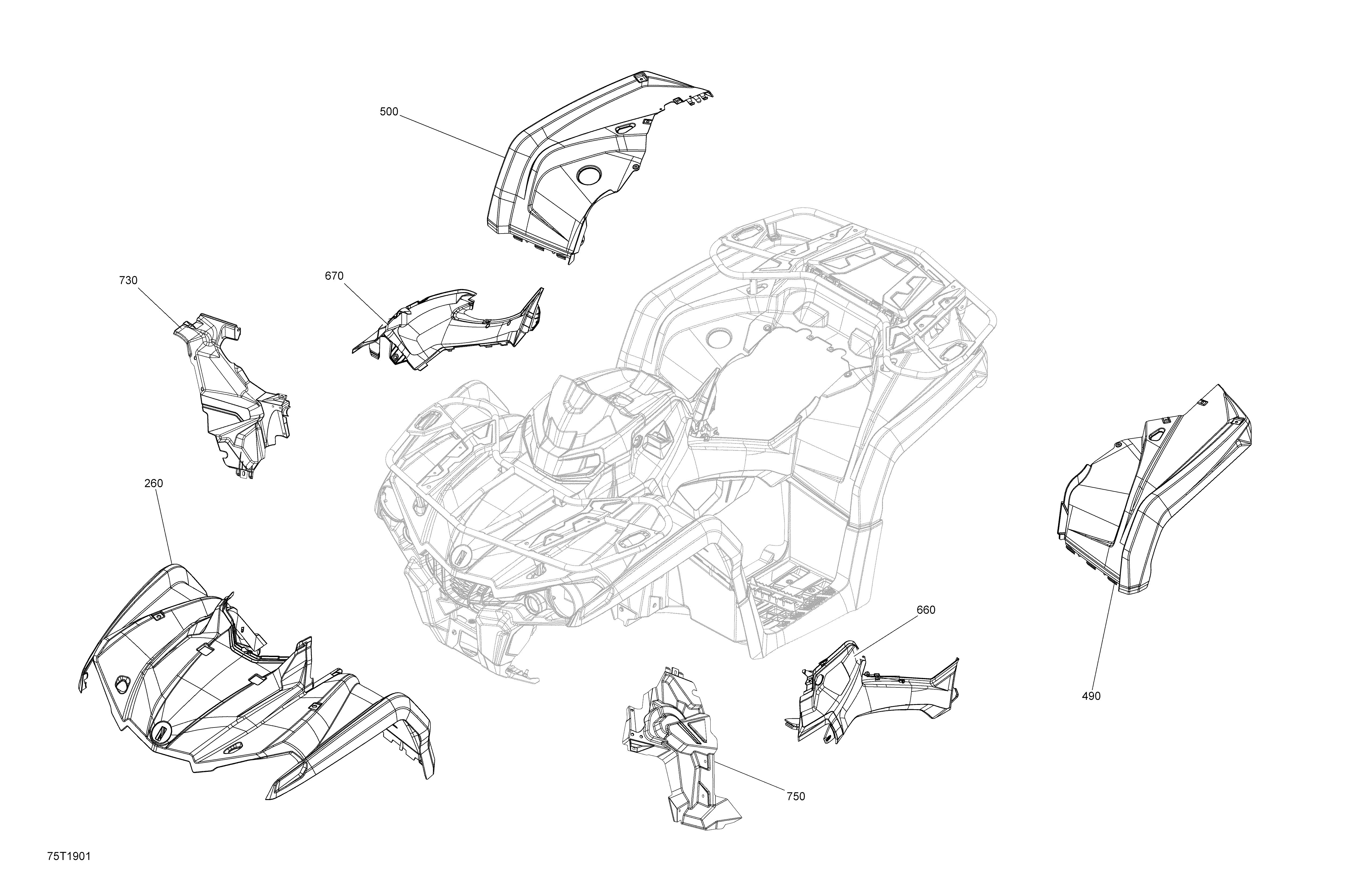

09- Fender And Central Panel Kit - 570 EFI для BRP 002 - Outlander 570 EFI - North America - 2019
-
№АртикулНазвание
-
260715005906 Viper Red Front Fender. Viper RedViper Red Front Fender. Viper Red
-
260715005925 Squadron Green Front Fender. Squadron GreenSquadron Green Front Fender. Squadron Green
-
260715005935 Camo Front Fender. CamoCamo Front Fender. Camo
-
260715005917 Orange - Front Fender. OrangeOrange - Front Fender. Orange
-
260715005931 Intense Red - Front Fender. Intense RedIntense Red - Front Fender. Intense Red
-
260715005913 Hyper Silver - Front Fender. Hyper SilverHyper Silver - Front Fender. Hyper Silver
-
260715005989 Sunburst Yellow - Front Fender. Package XMRSunburst Yellow - Front Fender. Package XMR
-
490715005938 Viper Red LH Rear Fender. Viper RedViper Red LH Rear Fender. Viper Red
-
490715005962 Squadron Green LH Rear Fender. Squadron GreenSquadron Green LH Rear Fender. Squadron Green
-
490715005973 Camo LH Rear Fender. CamoCamo LH Rear Fender. Camo
-
490715005952 Orange - LH Rear Fender. OrangeOrange - LH Rear Fender. Orange
-
490715005969 Intense Red - LH Rear Fender. Intense RedIntense Red - LH Rear Fender. Intense Red
-
490715005992 Sunburst Yellow- LH Rear Fender. Package XMRSunburst Yellow- LH Rear Fender. Package XMR
-
490715005946 Hyper Silver - LH Rear Fender. Hyper SilverHyper Silver - LH Rear Fender. Hyper Silver
-
500705013262 Sunburst Yellow - RH Rear Fender. Package XMRSunburst Yellow - RH Rear Fender. Package XMR
-
500705008499 RH Rear Fender. Viper RedRH Rear Fender. Viper Red
-
500705009758 Squadron Green RH Rear Fender. Squadron GreenSquadron Green RH Rear Fender. Squadron Green
-
500705012740 RH Rear Fender. CamoRH Rear Fender. Camo
-
500705012042 Intense Red - RH Rear Fender. Intense RedIntense Red - RH Rear Fender. Intense Red
-
500705011894 Orange - RH Rear Fender. OrangeOrange - RH Rear Fender. Orange
-
500705013247 Hyper Silver - RH Rear Fender. Hyper SilverHyper Silver - RH Rear Fender. Hyper Silver
-
660705005237 Viper Red, LH Lateral Pannel. Viper RedViper Red, LH Lateral Pannel. Viper Red
-
660705008578 Orange, LH Lateral Panel. OrangeOrange, LH Lateral Panel. Orange
-
660705009760 Squadron Green, LH Lateral Panel. Squadron GreenSquadron Green, LH Lateral Panel. Squadron Green
-
660705009903 Camo, LH Lateral Pannel. CamoCamo, LH Lateral Pannel. Camo
-
660705012043 Intense Red, LH Lateral Pannel. Intense RedIntense Red, LH Lateral Pannel. Intense Red
-
660705011920 Hyper Silver, LH Panel. Hyper SilverHyper Silver, LH Panel. Hyper Silver
-
660705005236 LH Pannel. Package XMRLH Pannel. Package XMR
-
670705012044 Intense Red, RH Lateral Pannel. Intense RedIntense Red, RH Lateral Pannel. Intense Red
-
670705008579 Orange, RH Lateral Panel. OrangeOrange, RH Lateral Panel. Orange
-
670705009115 Viper Red, RH Lateral Panel. Viper RedViper Red, RH Lateral Panel. Viper Red
-
670705009764 Squadron Green, RH Lateral Panel. Squadron GreenSquadron Green, RH Lateral Panel. Squadron Green
-
670705009912 Camo, RH Lateral Pannel. CamoCamo, RH Lateral Pannel. Camo
-
670705009121 RH Pannel. Package XMRRH Pannel. Package XMR
-
670705011921 Hyper Silver, RH Panel. Hyper SilverHyper Silver, RH Panel. Hyper Silver
-
730705010714 RH Inner FenderRH Inner Fender
-
750705012338 LH Inner FenderLH Inner Fender
