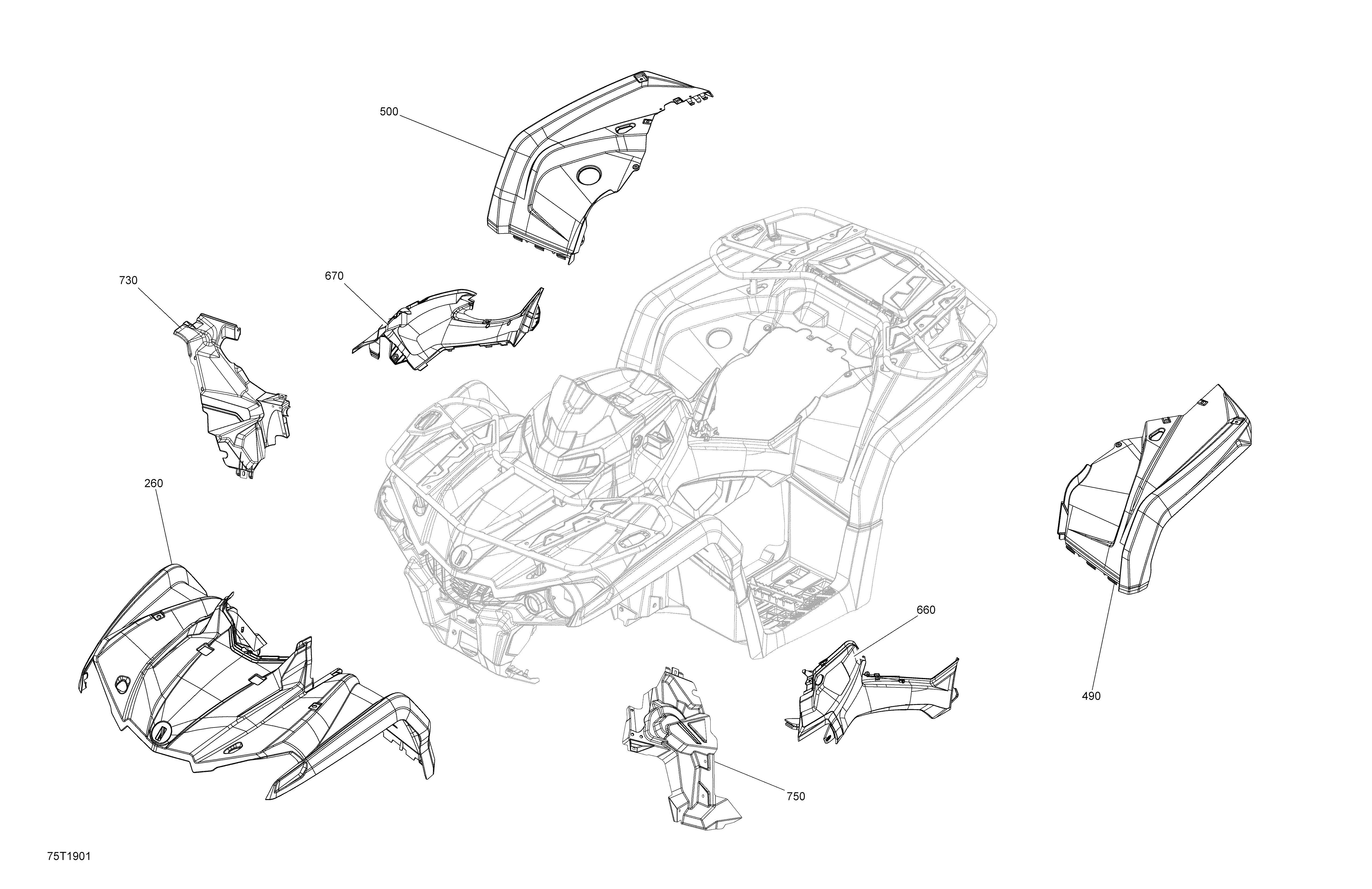

09- Fender And Central Panel Kit - 450 EFI для BRP 003 - Outlander MAX 450 EFI - North America - 2019
-
№АртикулНазвание
-
260715005910 Viper Red Front Fender. Viper RedViper Red Front Fender. Viper Red
-
260715005929 Squadron Green Front Fender. Squadron GreenSquadron Green Front Fender. Squadron Green
-
260715005921 Orange - Front Fender. OrangeOrange - Front Fender. Orange
-
490715005943 Viper Red LH Rear Fender. Viper RedViper Red LH Rear Fender. Viper Red
-
490715005967 Squadron Green LH Rear Fender. Squadron GreenSquadron Green LH Rear Fender. Squadron Green
-
490715005957 Orange - LH Rear Fender. OrangeOrange - LH Rear Fender. Orange
-
500705008499 RH Rear Fender. Viper RedRH Rear Fender. Viper Red
-
500715009758 Squadron Green RH Rear Fender. Squadron GreenSquadron Green RH Rear Fender. Squadron Green
-
500705011894 Orange - RH Rear Fender. OrangeOrange - RH Rear Fender. Orange
-
660705005237 Viper Red, LH Lateral Pannel. Viper RedViper Red, LH Lateral Pannel. Viper Red
-
660705008578 Orange, LH Lateral Panel. OrangeOrange, LH Lateral Panel. Orange
-
660705009760 Squadron Green, LH Lateral Panel. Squadron GreenSquadron Green, LH Lateral Panel. Squadron Green
-
670705008579 Orange, RH Lateral Panel. OrangeOrange, RH Lateral Panel. Orange
-
670705009115 Viper Red, RH Lateral Panel. Viper RedViper Red, RH Lateral Panel. Viper Red
-
670705009764 Squadron Green, RH Lateral Panel. Squadron GreenSquadron Green, RH Lateral Panel. Squadron Green
-
730705010714 RH Inner FenderRH Inner Fender
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
