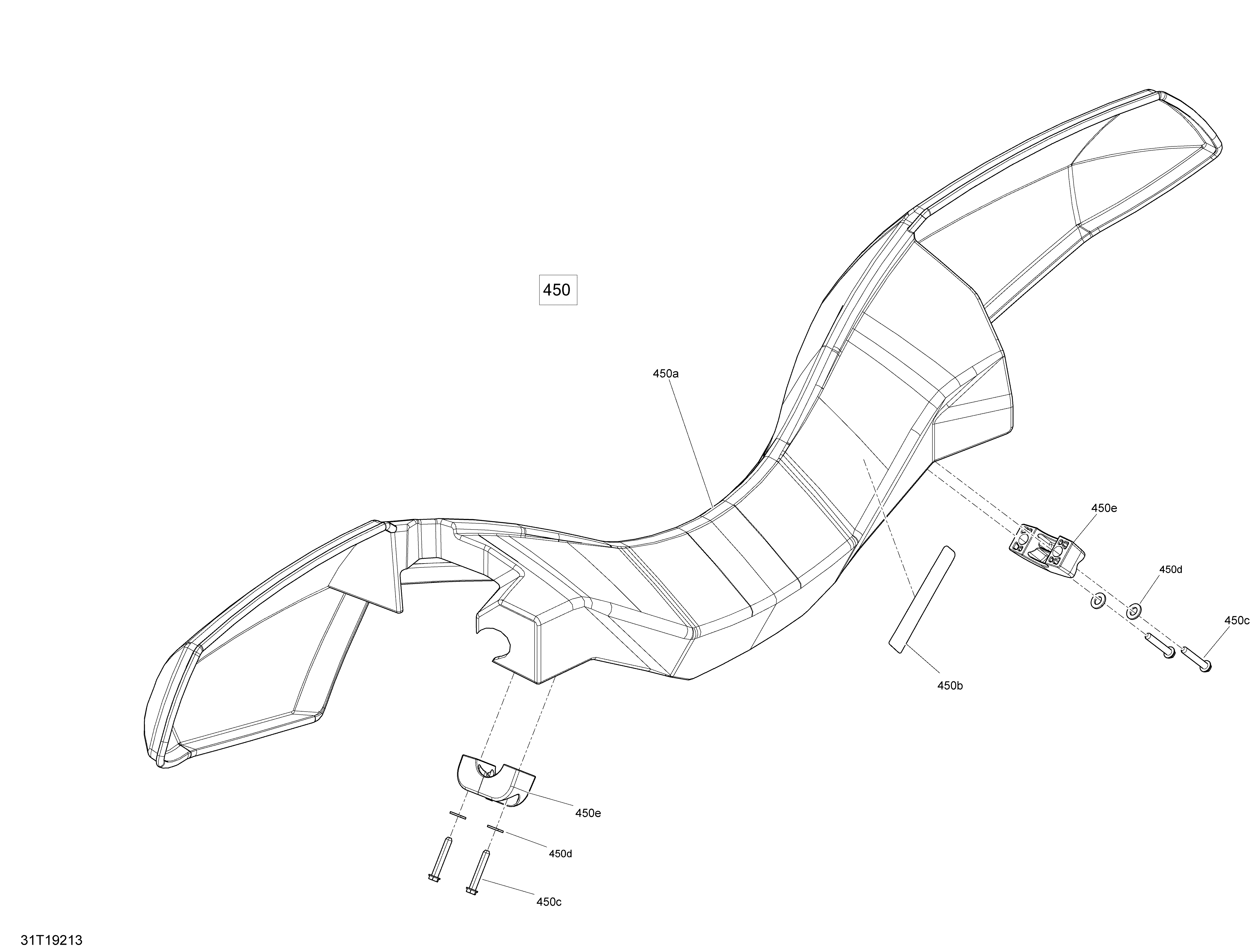

07- Steering Hand Guard - XT - LTD для BRP 002 - Outlander 850 EFI - North America - 2019
-
№АртикулНазвание
-
450703100357 Handle Guard Ass'y, LTD. Package LTD. Includes 450 to 450eHandle Guard Ass'y, LTD. Package LTD. Includes 450 to 450e
-
450703100352 Handle Guard Ass'y, XT. Package XT. Includes 450 to 450eHandle Guard Ass'y, XT. Package XT. Includes 450 to 450e
-
450a703100357 Handle Guard Ass'y, LTDHandle Guard Ass'y, LTD
-
450b704902966 DPS DecalDPS Decal
-
450c241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
450d211200035 Flat WasherFlat Washer
-
450e517303264 U-ClampU-Clamp
