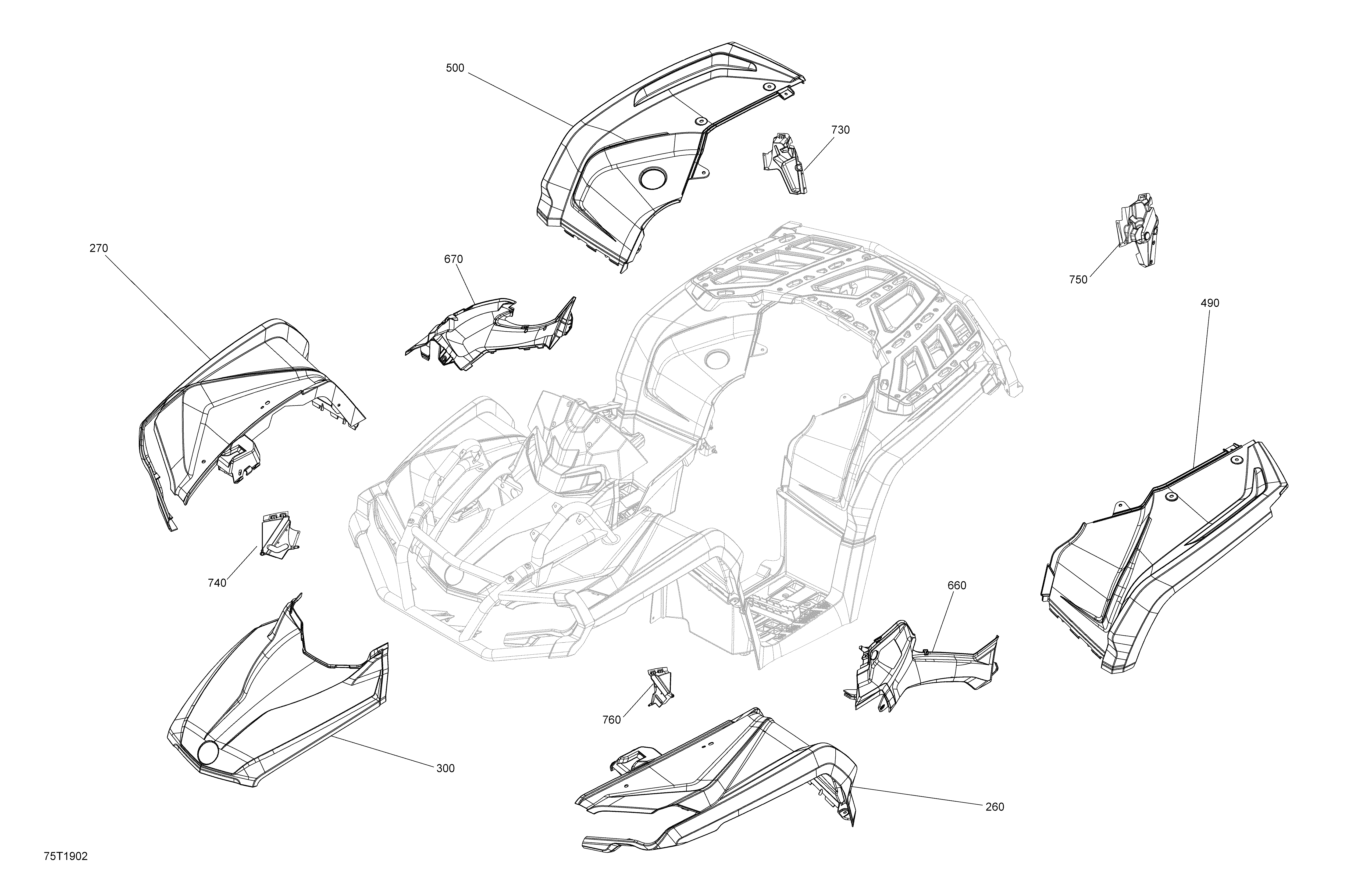

09- Fender And Central Panel Kit - Package DPS для BRP 004 - Outlander MAX 650 EFI - North America - 2019
-
№АртикулНазвание
-
260715005631 Orange, LH Front Fender KitOrange, LH Front Fender Kit
-
270715005673 Orange, RH Front Fender KitOrange, RH Front Fender Kit
-
290705004565 Lower Fender SupportLower Fender Support
-
300715004621 Orange, Hood KitOrange, Hood Kit
-
490715005742 Orange, LH Rear Fender KitOrange, LH Rear Fender Kit
-
500705013842 Orange, RH Rear Fender KitOrange, RH Rear Fender Kit
-
660705008578 Orange, LH Lateral PanelOrange, LH Lateral Panel
-
670705008579 Orange, RH Lateral PanelOrange, RH Lateral Panel
-
730705011462 RH Rear Inner FenderRH Rear Inner Fender
-
740705011463 RH Front Inner FenderRH Front Inner Fender
-
750705013111 LH Rear Inner FenderLH Rear Inner Fender
-
760705011465 LH Front Inner FenderLH Front Inner Fender
