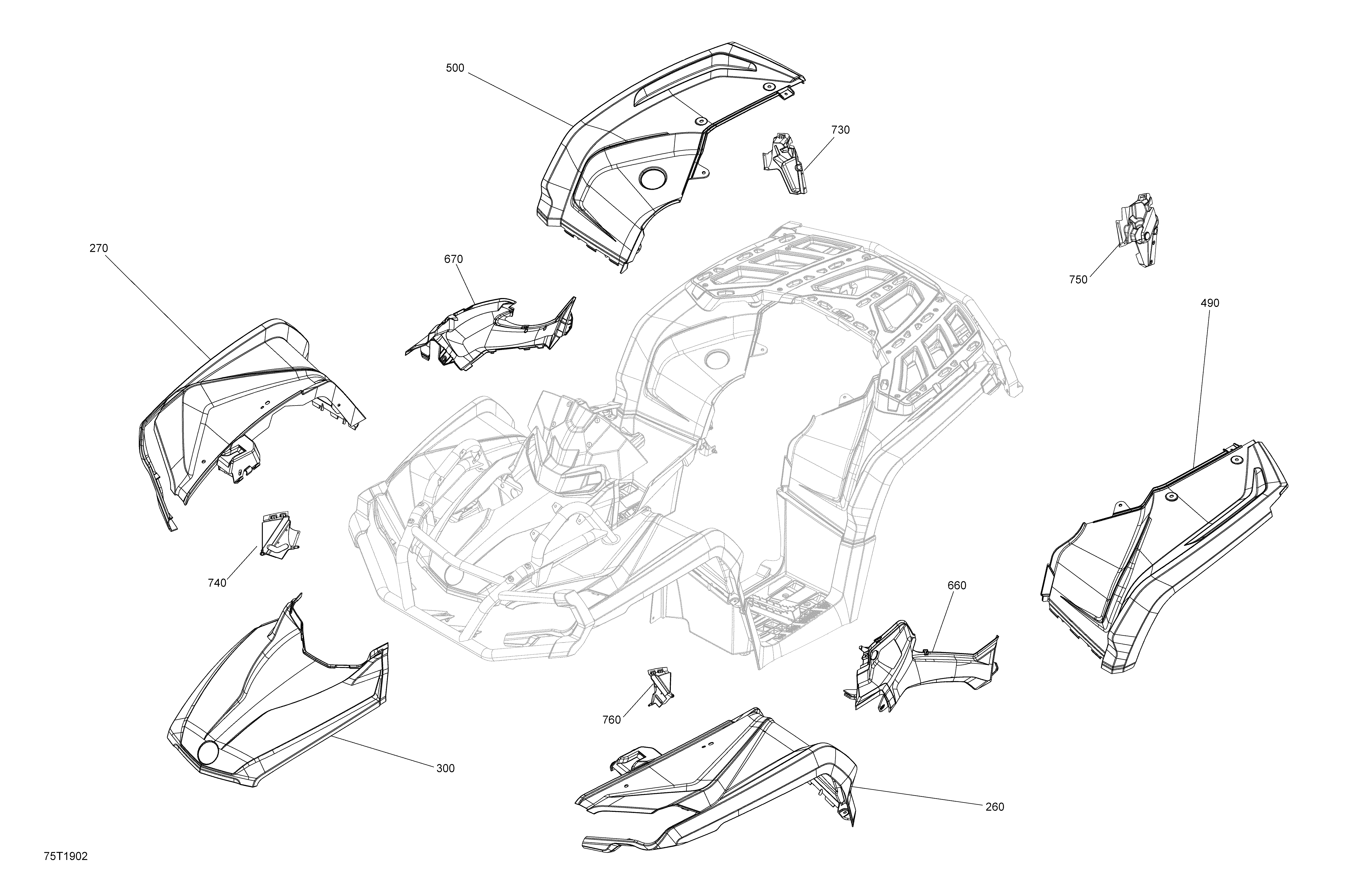

09- Fender And Central Panel Kit - Package XT для BRP 005 - Outlander MAX 850 EFI - North America - 2019
-
№АртикулНазвание
-
260715003191 Camo, LH Front Fender Kit. CamoCamo, LH Front Fender Kit. Camo
-
260715005641 Intense Red - LH Front Fender Kit. Intense RedIntense Red - LH Front Fender Kit. Intense Red
-
260715005617 Timeless Black, LH Front Fender Kit. Timeless BlackTimeless Black, LH Front Fender Kit. Timeless Black
-
270715003208 Camo, RH Front Fender Kit. CamoCamo, RH Front Fender Kit. Camo
-
270715005684 Intense Red, RH Front Fender Kit. Intense RedIntense Red, RH Front Fender Kit. Intense Red
-
270715005664 Timeless Black, RH Front Fender Kit. Timeless BlackTimeless Black, RH Front Fender Kit. Timeless Black
-
290705004565 Lower Fender SupportLower Fender Support
-
300715004679 Black, Hood Kit. Timeless BlackBlack, Hood Kit. Timeless Black
-
300715005796 Breakup Country, Hood Kit . CamoBreakup Country, Hood Kit . Camo
-
300715004655 Intense Red, Hood Kit. Intense RedIntense Red, Hood Kit. Intense Red
-
490715005728 Timeless Black LH Rear Fender Kit. Timeless BlackTimeless Black LH Rear Fender Kit. Timeless Black
-
490715003223 Camo, LH Rear Fender Kit. CamoCamo, LH Rear Fender Kit. Camo
-
490715005762 Intense Red, LH Rear Fender Kit. Intense RedIntense Red, LH Rear Fender Kit. Intense Red
-
500705013850 Black, RH Rear Fender Kit. Timeless BlackBlack, RH Rear Fender Kit. Timeless Black
-
500715003234 Camo, RH Rear Fender Kit . CamoCamo, RH Rear Fender Kit . Camo
-
500715004654 Intense Red, RH Rear Fender Kit. Intense RedIntense Red, RH Rear Fender Kit. Intense Red
-
660705009903 Camo, LH Lateral Pannel. CamoCamo, LH Lateral Pannel. Camo
-
660705012043 Intense Red, LH Lateral Pannel. Intense RedIntense Red, LH Lateral Pannel. Intense Red
-
660705012116 Black, LH Lateral Pannel. Timeless BlackBlack, LH Lateral Pannel. Timeless Black
-
670705012117 Black, RH Lateral Pannel. Timeless BlackBlack, RH Lateral Pannel. Timeless Black
-
670705009912 Camo, RH Lateral Pannel. CamoCamo, RH Lateral Pannel. Camo
-
670705012044 Intense Red, RH Lateral Pannel. Intense RedIntense Red, RH Lateral Pannel. Intense Red
-
730705011462 RH Rear Inner FenderRH Rear Inner Fender
-
740705011463 RH Front Inner FenderRH Front Inner Fender
-
750705013111 LH Rear Inner FenderLH Rear Inner Fender
-
760705011465 LH Front Inner FenderLH Front Inner Fender
