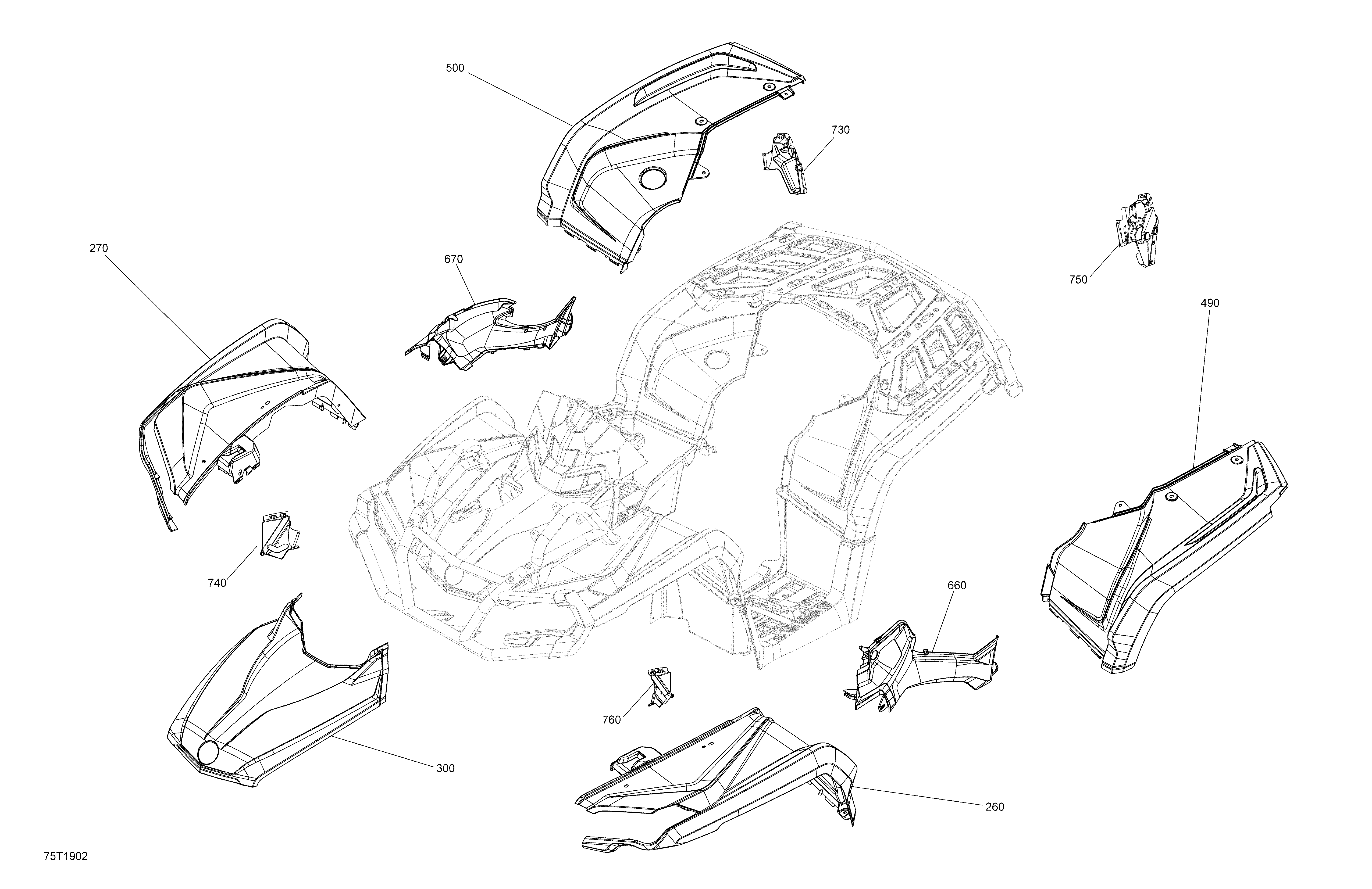

09- Fender And Central Panel Kit - Package XTP для BRP 006 - Outlander MAX 1000R EFI - North America - 2019
-
№АртикулНазвание
-
260715005625 Carbon Black, LH Front Fender KitCarbon Black, LH Front Fender Kit
-
270715005669 Carbon Black, RH Front Fender KitCarbon Black, RH Front Fender Kit
-
290705004565 Lower Fender SupportLower Fender Support
-
300715004679 Black, Hood KitBlack, Hood Kit
-
490715005736 Black, LH Rear Fender KitBlack, LH Rear Fender Kit
-
500705013646 Black, RH Rear Fender KitBlack, RH Rear Fender Kit
-
660705012116 Black, LH Lateral PannelBlack, LH Lateral Pannel
-
670705012117 Black, RH Lateral PannelBlack, RH Lateral Pannel
-
730705011462 RH Rear Inner FenderRH Rear Inner Fender
-
740705011463 RH Front Inner FenderRH Front Inner Fender
-
750705013111 LH Rear Inner FenderLH Rear Inner Fender
-
760705011465 LH Front Inner FenderLH Front Inner Fender
