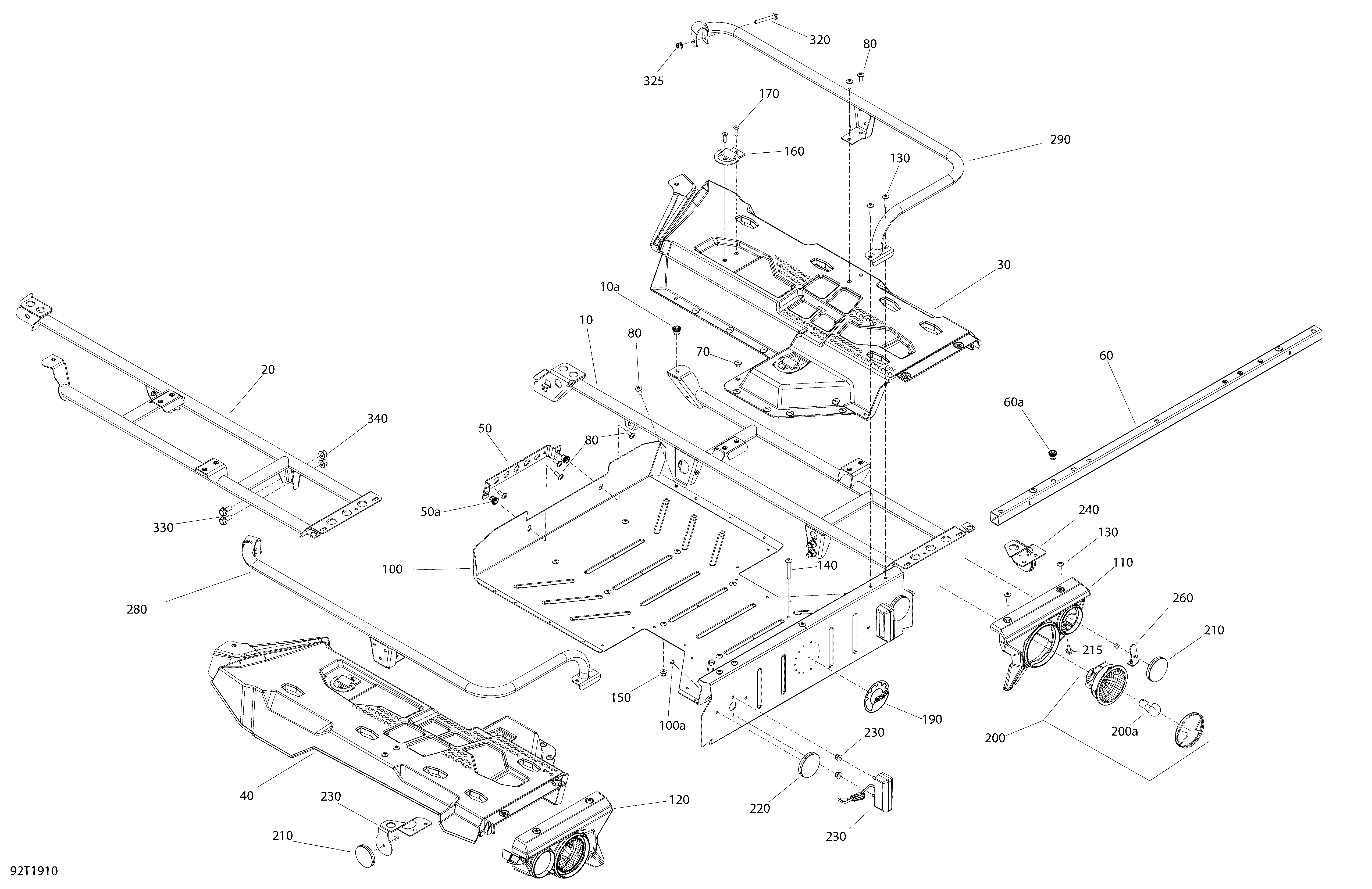

09- Cargo 6X6 Max - 450 EFI_Luggage Rack для BRP 001 - Outlander MAX 6X6 - 450 EFI - North America - 2019
-
№АртикулНазвание
-
10708302667 RH Fender Support. Includes 1000 to 1000aRH Fender Support. Includes 1000 to 1000a
-
10a605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
20708302668 LH Fender Support. Includes 1010 to 1010aLH Fender Support. Includes 1010 to 1010a
-
20a605636003 Clinch Nut M6 Hexsert. not shownClinch Nut M6 Hexsert. not shown
-
30708302687 RH Cargo FenderRH Cargo Fender
-
40708302688 LH Cargo FenderLH Cargo Fender
-
50708302628 Fastening Plate. Includes 1040 to 1040aFastening Plate. Includes 1040 to 1040a
-
50a605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
60708302619 Rear Support Tube. Includes 1050 to 1050aRear Support Tube. Includes 1050 to 1050a
-
60a605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
70293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
80250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
100715006173 Black Flatbed. Includes 1080 to 1080aBlack Flatbed. Includes 1080 to 1080a
-
100a390909200 Avex RivetAvex Rivet
-
110708302734 RH Light CoverRH Light Cover
-
120708302735 LH Light CoverLH Light Cover
-
130250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
140250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
160708301189 Retaining HookRetaining Hook
-
170205362556 Screw-socket Hd.ctsk.m6 X 25Screw-socket Hd.ctsk.m6 X 25
-
180205362096 Screw-Socket HD.CTSK.DIN.7991. not shownScrew-Socket HD.CTSK.DIN.7991. not shown
-
190219902672 Logo BRP, 68 mmLogo BRP, 68 mm
-
200710001645 Tail LightTail Light
-
200a520000758 BulbBulb
-
210705011221 Red ReflectorRed Reflector
-
230708302774 LH Reflector SupportLH Reflector Support
-
240708302773 RH Reflector SupportRH Reflector Support
-
250207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. not shownHex. Flanged Screw M6 X 12, Scotch Grip. not shown
-
260708302771 Reflector SupportReflector Support
-
215207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
280708302788 LH Side RailLH Side Rail
-
290708302789 RH Side RailRH Side Rail
-
320207664554 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
325233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
330207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
340233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
390234062670 Flat Washer, Stainless. not shownFlat Washer, Stainless. not shown
