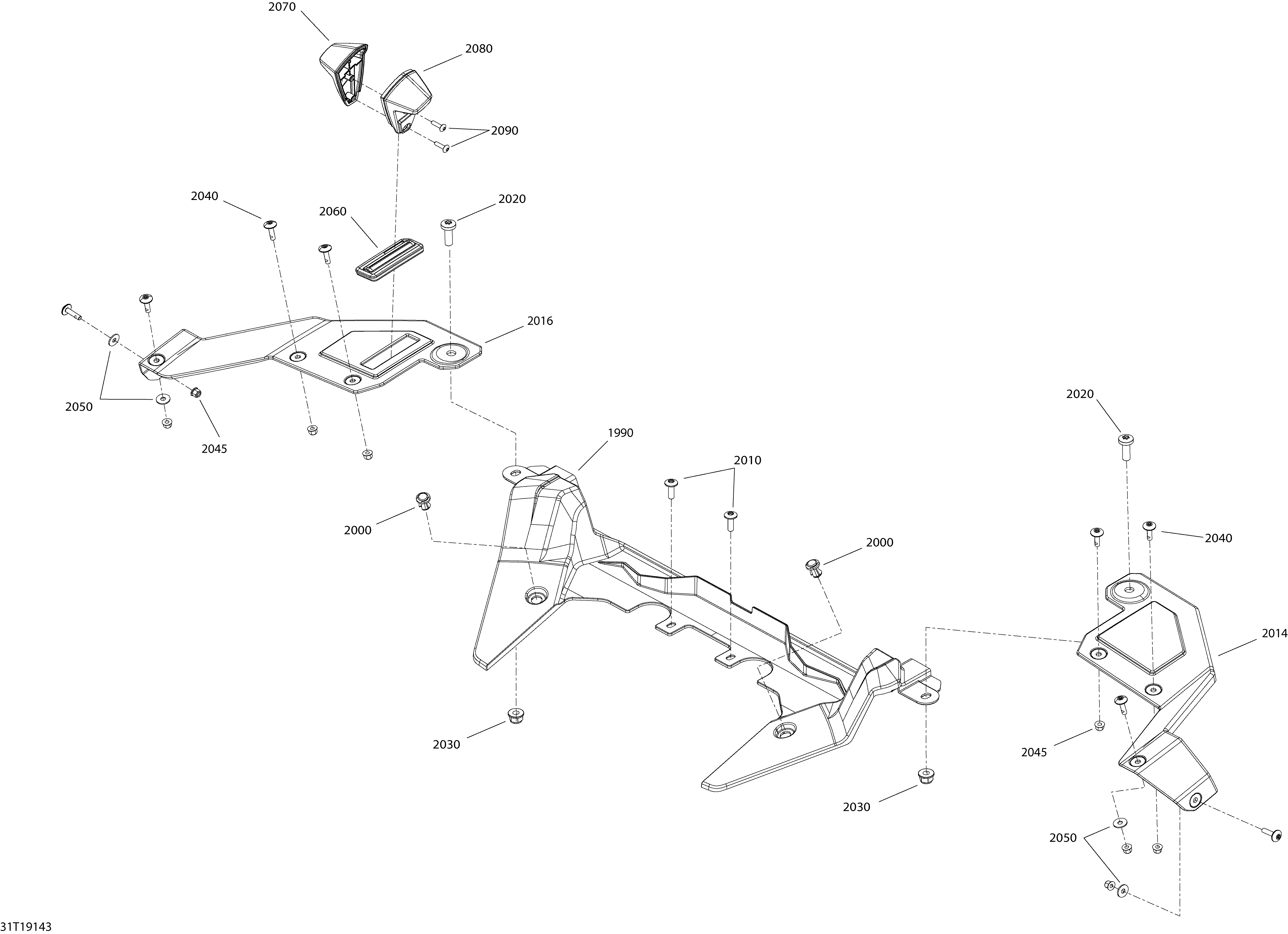

09- Body And Accessories 6X6 MAX - 1000 EFI - North america - Rear для BRP 003 - Outlander MAX 6X6 - 1000 EFI - North America - 2019
-
№АртикулНазвание
-
1990705013822 Middle CoverMiddle Cover
-
2000293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2010250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2014705013820 LH Rear Fender TrimLH Rear Fender Trim
-
2016705013821 RH Rear Fender TrimRH Rear Fender Trim
-
2020250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
2030233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2040250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
2045233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
205020008 Washer 5,3 mmWasher 5,3 mm
-
2060705008047 Lever Rubber SealLever Rubber Seal
-
2070705008048 Right Half KnobRight Half Knob
-
2080705008420 Left Half KnobLeft Half Knob
-
2090250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
