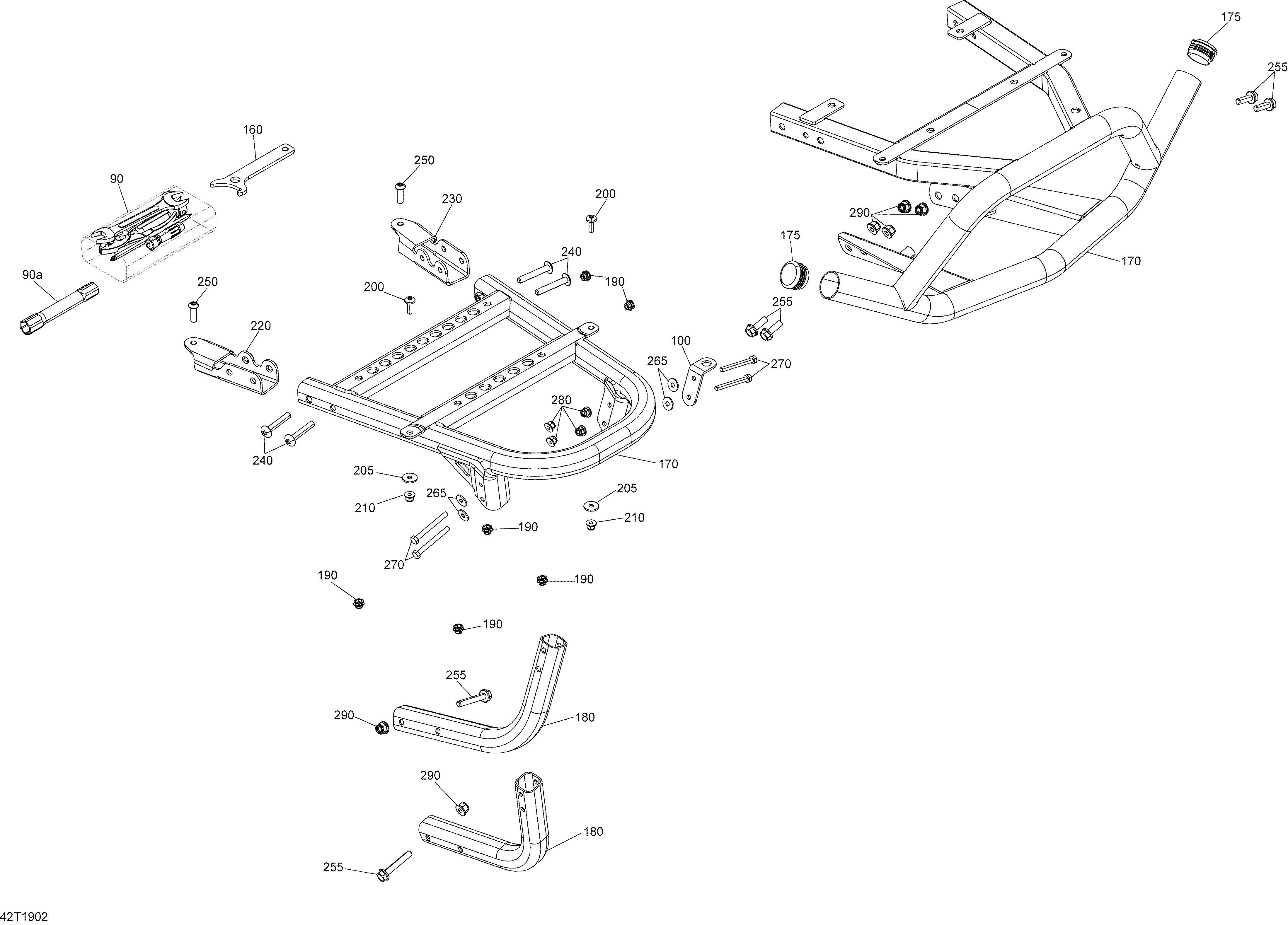

09- Rear Cargo Box - 650 EFI - 850 EFI для BRP 002 - Renegade 850 EFI - North America - 2019
-
№АртикулНазвание
-
90704700168 Tool Kit. Includes 90 to 90aTool Kit. Includes 90 to 90a
-
90A529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
100705005837 Flag SupportFlag Support
-
170715004150 Rear Bumper Kit. P-STD&C/URear Bumper Kit. P-STD&C/U
-
180705004981 Rear TubeRear Tube
-
190250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
200250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
205224061201 Flat WasherFlat Washer
-
210233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
220705004977 LH Front BracketLH Front Bracket
-
230705004978 RH Front BracketRH Front Bracket
-
240250000844 Torx Screw M8 X 50 S.GRIPTorx Screw M8 X 50 S.GRIP
-
250250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
255207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
265234062410 Flat Washer 6 mmFlat Washer 6 mm
-
270207066044 Hex. Screw M6 X 60Hex. Screw M6 X 60
-
280233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
