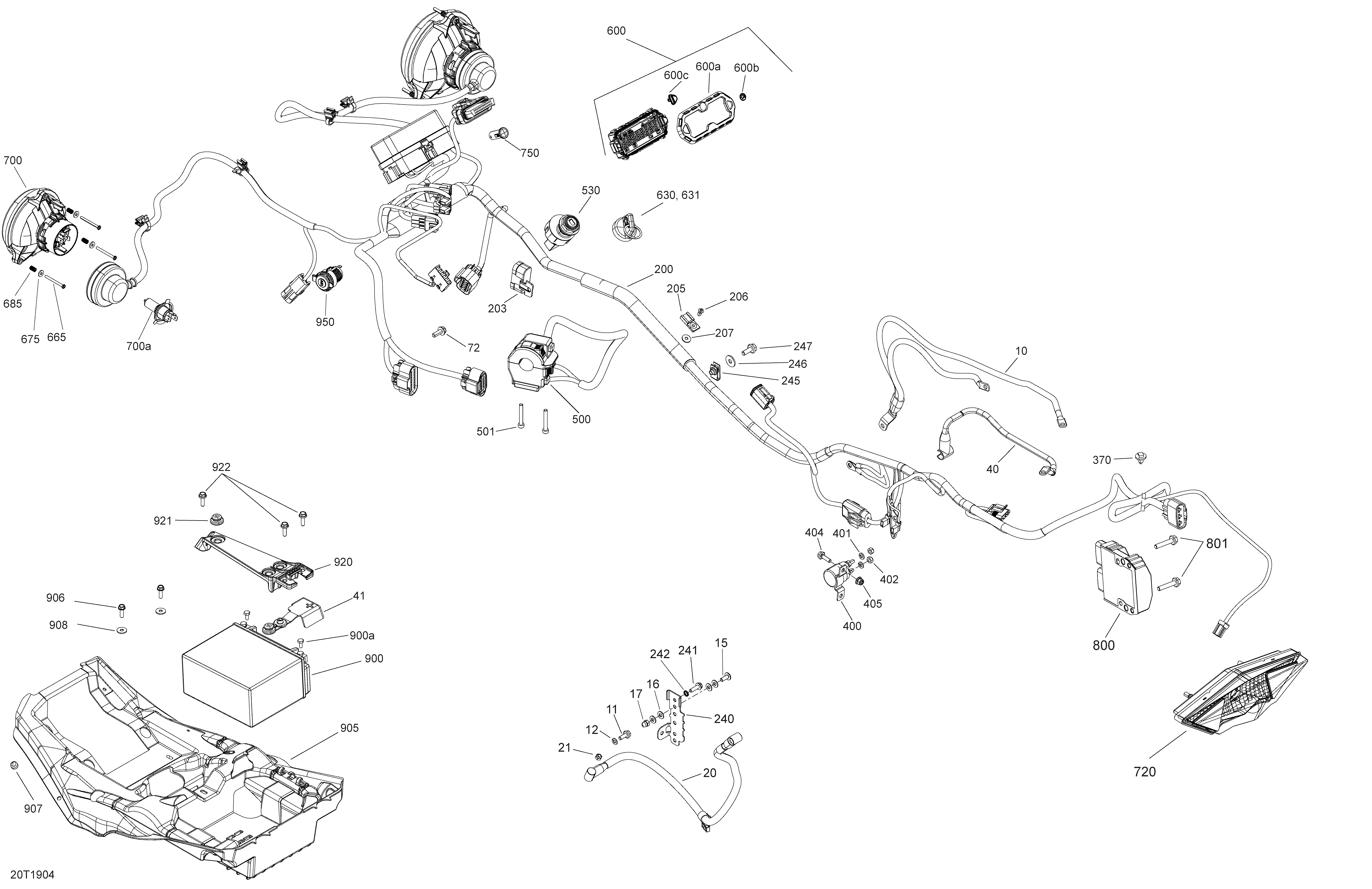

10- Electrical - 570 EFI - PRO для BRP 004 - Outlander 570 EFI - International - Non European Communities - 2019
-
№АртикулНазвание
-
10710004382 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
15250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
16224061121 Flat WasherFlat Washer
-
17232361493 Domed Nut M6Domed Nut M6
-
20710004377 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004376 Positive CablePositive Cable
-
41710002569 CapCap
-
200710006172 Electric HarnessElectric Harness
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
240710004118 Connector BracketConnector Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
370293730040 Mount DartMount Dart
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
500710005072 Multi-Function HandleMulti-Function Handle
-
501205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
530710004570 Ignition SwitchIgnition Switch
-
600710006216 SpeedometerSpeedometer
-
630710000817 Black, Electronic KeyBlack, Electronic Key
-
631710002183 Grey, Electronic KeyGrey, Electronic Key
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
675517225900 Flat WasherFlat Washer
-
685517168600 SpringSpring
-
700710003900 Low Beam. Includes 700 to 700aLow Beam. Includes 700 to 700a
-
700a710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
720710001203 Tail Light Housing Ass'yTail Light Housing Ass'y
-
750710003910 Pilot Lamp CapPilot Lamp Cap
-
800710005569 Voltage RegulatorVoltage Regulator
-
801207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710005528 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
