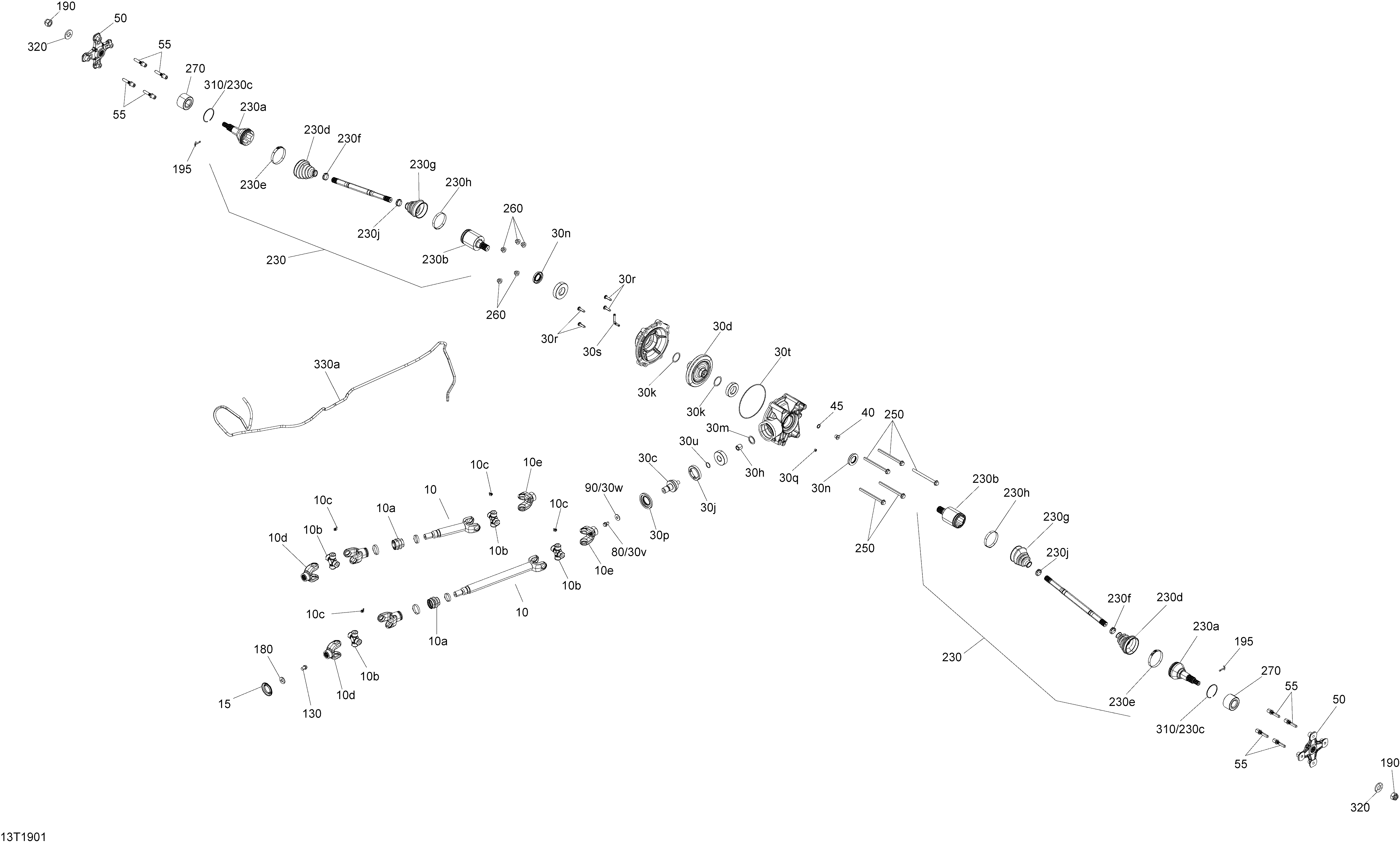

08- Rear Drive - 450 EFI для BRP 005 - Outlander MAX 450 EFI - International - 2019
-
№АртикулНазвание
-
10703500933 Rear Propeller Shaft Ass'y Kit. Includes 10 to 10eRear Propeller Shaft Ass'y Kit. Includes 10 to 10e
-
10a715900118 Rubber BootRubber Boot
-
10b703500846 Universal Joint Ass'y. Includes 10b to 10cUniversal Joint Ass'y. Includes 10b to 10c
-
10c715900295 Grease FittingGrease Fitting
-
10d715900439 Fixe YokeFixe Yoke
-
10e715900439 Fixe YokeFixe Yoke
-
15705400036 Wear RingWear Ring
-
30703501019 Final Drive Unit. Includes 30 to 30wFinal Drive Unit. Includes 30 to 30w
-
30c705502053 Pinion 10 TeethPinion 10 Teeth
-
30d705502054 Gear 36 TeethGear 36 Teeth
-
30h705502058 Needle BearingNeedle Bearing
-
30j705502059 NutNut
-
30k705502060 Differential Shim 0.02 mmDifferential Shim 0.02 mm
-
30m705502061 Pinion Gear Shim 1.67 mmPinion Gear Shim 1.67 mm
-
30n705501556 Oil SealOil Seal
-
30p705502062 Oil SealOil Seal
-
30q705501724 Plug DrainPlug Drain
-
30r705502063 ScrewScrew
-
30s705501584 Breather TubeBreather Tube
-
30t705502064 SealSeal
-
30u705502065 O-RingO-Ring
-
30v250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
30w250200014 Flat Washer M10Flat Washer M10
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
55250300048 Wheel StudWheel Stud
-
80250001044 Screw-Hex.Flange M10 X 16 S.GRIPScrew-Hex.Flange M10 X 16 S.GRIP
-
90250200014 Flat Washer M10Flat Washer M10
-
130250001039 Hex Flanged Screw M12 X 16Hex Flanged Screw M12 X 16
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705501897 RH Half Shaft Ass'y. Includes 230 to 230jRH Half Shaft Ass'y. Includes 230 to 230j
-
230a705401344 CV JointCV Joint
-
230b715900304 Plunging JointPlunging Joint
-
230c705501781 CirclipCirclip
-
230d705401345 Boot Kit, Wheel Side. Includes 230d to 230fBoot Kit, Wheel Side. Includes 230d to 230f
-
230e715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
230f715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
230g705401346 Boot Kit, Differential Side. Includes 230g to 230jBoot Kit, Differential Side. Includes 230g to 230j
-
230h715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
230j715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
230705501898 LH Half Shaft Ass'y. Includes 240 to 240jLH Half Shaft Ass'y. Includes 240 to 240j
-
230a705401344 CV JointCV Joint
-
230b715900304 Plunging JointPlunging Joint
-
230c705501781 CirclipCirclip
-
230d705401345 Boot Kit, Wheel Side. Includes 240d to 240fBoot Kit, Wheel Side. Includes 240d to 240f
-
230e715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
230f715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
230g705401346 Boot Kit, Differential Side. Includes 240g to 240jBoot Kit, Differential Side. Includes 240g to 240j
-
230h715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
230j715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
250250001041 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330a293830193 Polyurethane HosePolyurethane Hose
